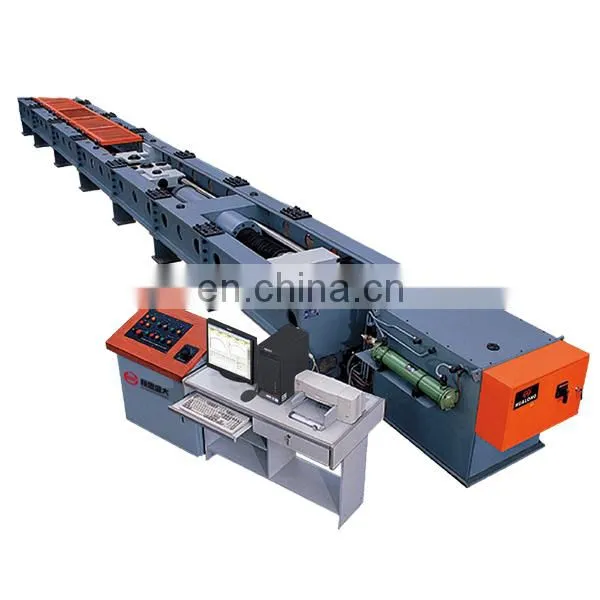

lower price 3000kN computer control electro-hydraulic servo horizontal tensile test bench,tensile testing bed

1. horizontal tensile testing machine application:

WAL series Computer controlled electro-hydraulic servo Rope Horizontal Tensile Strength Test Equipment is mainly designed for tensile strength tests on anchor chain, hook, porcelain insulator, wire rope, stopper, electric cable, optical cable, overhead line, steel strand, slings, plastic woven sack, rods, ropes.This machine adopts steel welded frame structure, and uses single-rod double-acting piston cylinder to provide loading force,cylindrical pin plug to mount specimen, and load cell to measure testing force.These test frames are powered by hydraulics for high strength testing and can be customized in length to meet a variety of application requirements.

Computer automatically controlling test process, and computer can timely collect the testing parameters like loading force, stroke etc. It and  display, record, process and print the test results, and control test procedures as the set program and can draw test curves automatically in real time.

Test curve: Force-displacement, Force-time, Force-deformation, Stress-strain and so on.

 Main Technical Parameter:
