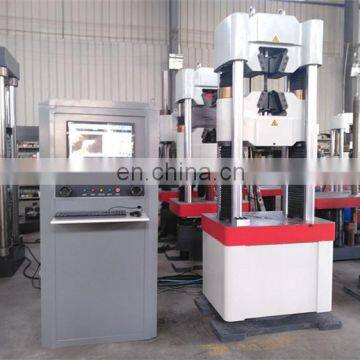

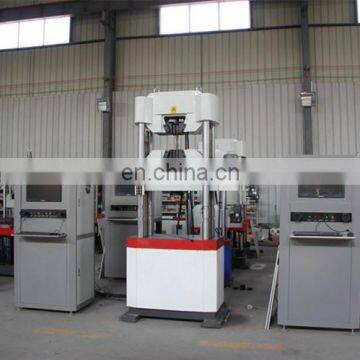

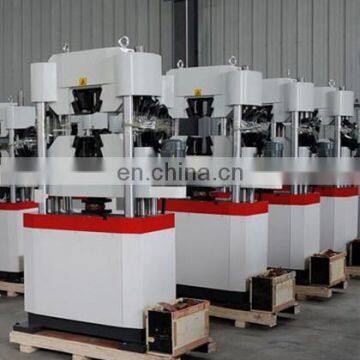

tensile compression concrete brick hydraulic testing machine
The machine adopts hydraulic loading, digital display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, shearing etc. Mainly test for metal materials.
Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber and so on. It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.
Good price for computer display hydraulic universal Testing machine specification :
Model | WAW-100D | WAW-300D | WAW-600D | WAW-1000D | WAW-2000D | ||||||||
Control mode | Constant Stress, Deformation, three Closed Loop Control | ||||||||||||
Max. Load | 100KN | 300KN | 600KN | 1000KN | 2000KN | ||||||||
Tension test space | 650mm | 750mm | |||||||||||
Compression Test Space | 500mm | 600mm | |||||||||||
Round specimen clamping diameter (mm) | Φ4-Φ21 | Φ10-Φ32 | Φ13-Φ40 | Φ13-Φ50 | Φ15-Φ70 | ||||||||
Flat specimen clamping thickness (mm) | 0-15mm | 0-30mm | 0-60mm | ||||||||||
Flat specimen clamping width | 70mm | 75mm | 85mm | ||||||||||
Compression plate size | φ160mm/φ240mm | Φ240mm | |||||||||||
Bending roller distance | 450mm | ||||||||||||
Width of bending rollers | 120mm | 160mm | |||||||||||
Load accuracy | ≤±1% or ≤± 0.5% | ||||||||||||
Load range | 2%-100%of Full Scale or 0.4%-100% of Full Scale | ||||||||||||
Load resolution | 1/300000 of Full Scale | ||||||||||||
Deformation Measurement Range | 2%~100% of Full Scale | ||||||||||||
Deformation accuracy | ≤±1% or ± 0.5% | ||||||||||||
Displacement resolution
| 0.01mm | ||||||||||||
Displacement accuracy | ≤±0.5% | ||||||||||||
Piston stroke | 250mm | ||||||||||||
Lifting speed of mobile beams | 150mm/min | ||||||||||||
Clamping method | Hydraulic automatic clamping | ||||||||||||
Power supply | 3-phase, AC380V, 50Hz(can be customized) | ||||||||||||
