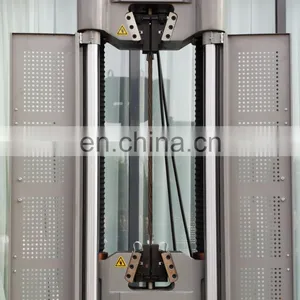

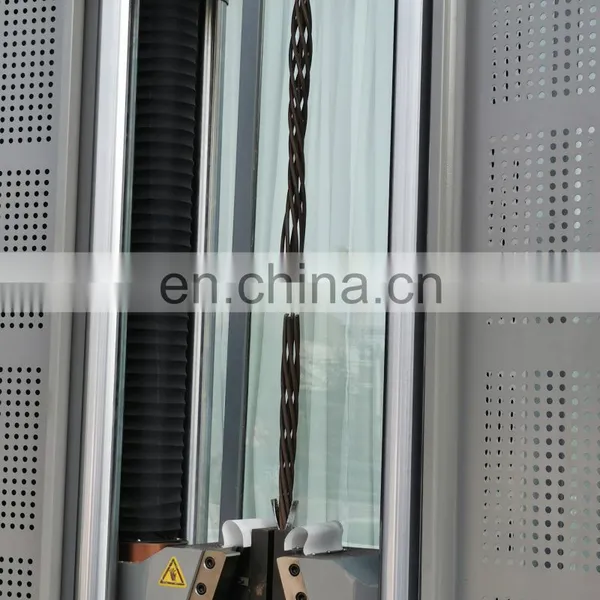

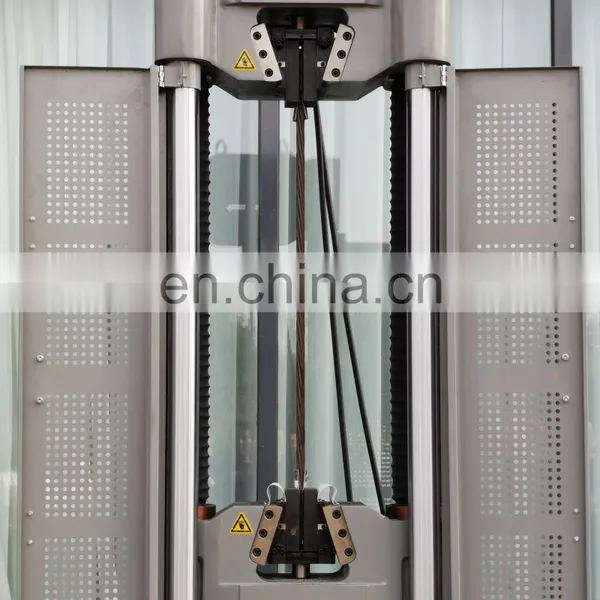

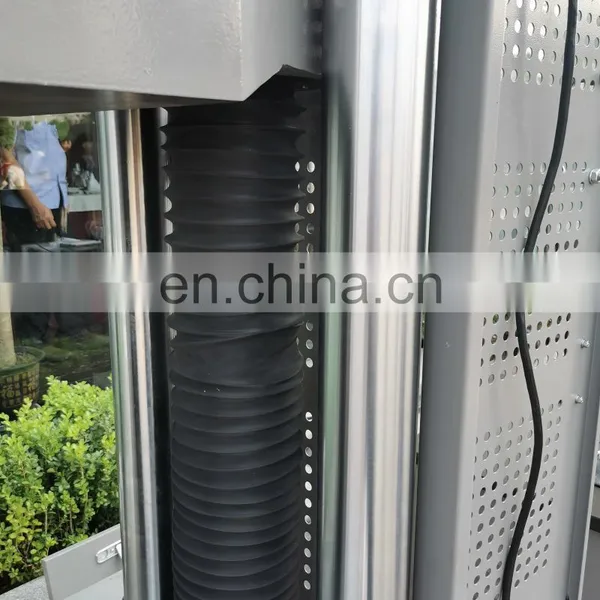

WEW-1000D Computer Display Hydraulic Universal Testing Machine
The machine adopts hydraulic loading, Computer Display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.
Model |
WEW-1000D |
Structure |
4 columns and 2 screws |
Control way |
loading process manual control,computer automatic data dealing |
Max.load (kN) |
1000kN |
Load accuracy |
≤±1% |
Load range |
2%-100%FS |
Load resolution |
1/300000 |
Deformation Measurement Range |
2%~100%FS |
Deformation accuracy |
≤±1% |
Displacement resolution (mm) |
0.01 |
Displacement error |
≤±0.5% |
Max.piston stroke(mm) |
250 |
Max piston moving speed |
0-90mm/min Manual adjustment
|
Crosshead lifting speed |
200mm/min |
Max. tension test space |
650mm (can customize) |
Max.Compression Test Space |
500mm (can customize) |
Column clearance(mm) |
525 |
Clamping method |
Hydraulic clamp |
Round specimen clamping range (mm) |
Φ13-Φ26,Φ26-Φ40, (Φ6-Φ13 , Φ40-Φ50 Optional ) |
Flat specimen clamping range (mm) |
0-15 (15-30 Optional) |
Flat specimen clamping width(mm) |
80 |
Compression plate size (mm) |
φ160 |
Bending roller distance(mm) |
450 |
Width of bending rollers (mm) |
120 |
Power supply |
3-phase,AC380V, 50Hz(can be customized) |
