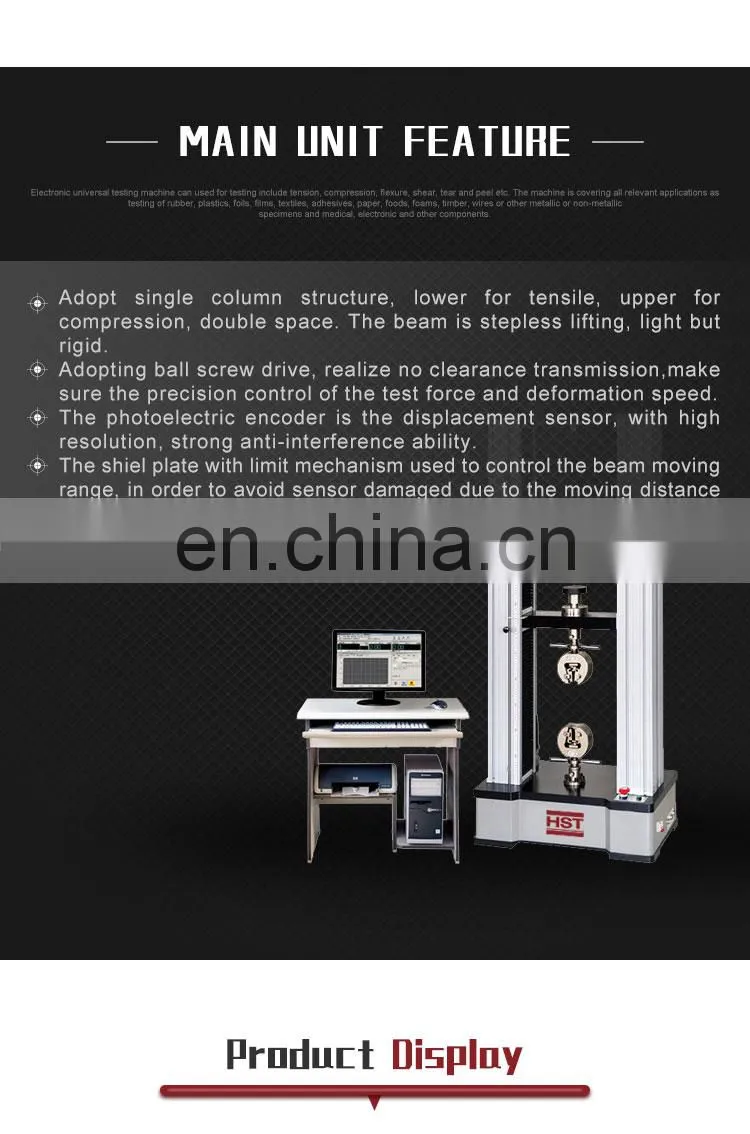

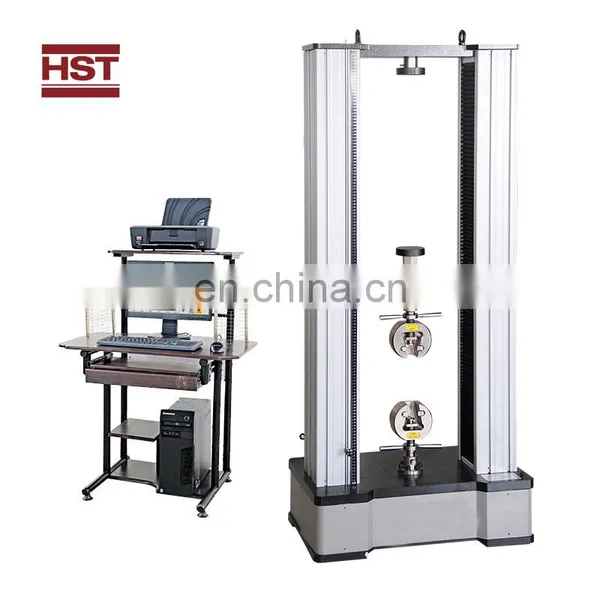

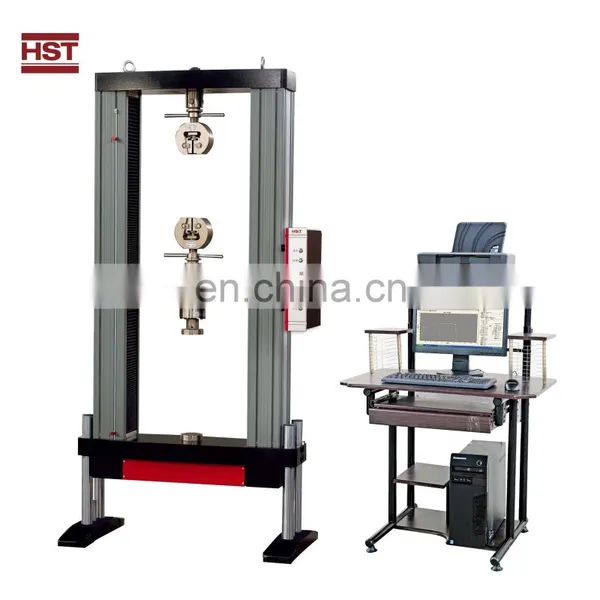

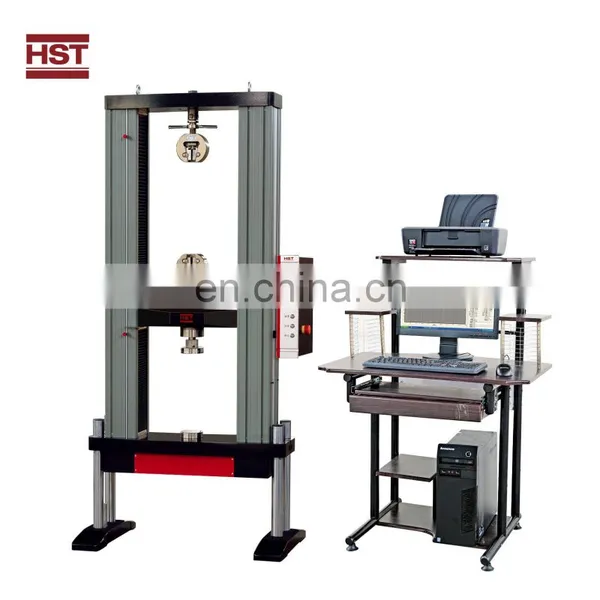

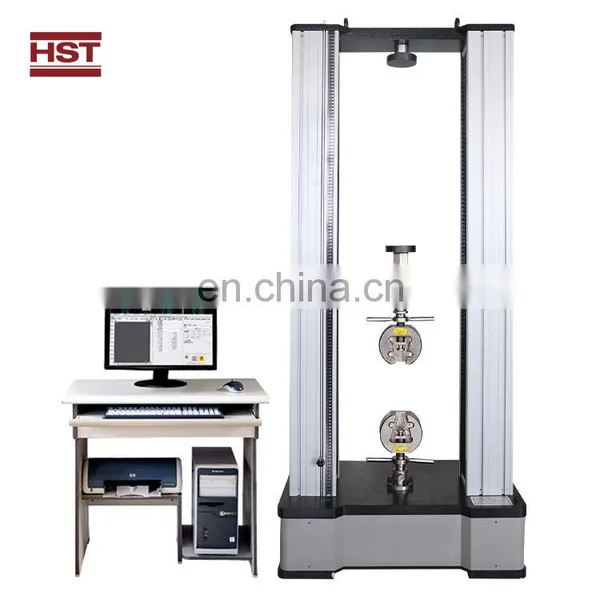

WGY-50kN/100kN/200kN/300kN Orthopaedics Testing Machine/Metallic Bone Plates Testing Machinechine
1. Application:
It is used for the tensile test, compression test, bending test, etc. of the metal bone plate of bone joint implants at room temperature, and the experimental test and research on the mechanical and mechanical properties of orthopedic materials.
1) Medical devices, bone implants, surgical implants, straight bone plates, angle bone plates, grasping bone plates, tubular bone plates, L-shaped bone plates, hook bone plates, double curved bone Plate, Y-shaped bone plate, golf club-shaped bone plate, T-shaped bone plate, reconstructed bone plate, arc-shaped reconstructed bone plate; corrugated steel plate; point-contact bone plate; contact dynamic compression bone plate;
2) Intramedullary device bone plate, bone plate bar, bone plate wire, bone plate plate, femoral end fixation implant, bone needle and bone wire, metal bone needle, malleable wire, suture wire for suture, Surgical forging wire, metal orthopedic rod, locking compression plate, osteotomy locking plate, femoral limited plate, proximal femoral plate, femoral ankle plate, upper extremity plate, lower extremity plate, femoral neck plate, lateral plate , Restricted contact bone plate, femoral condyle support bone plate, trefoil bone plate, hand and foot bone plate, threaded suture needle, medical suture needle steel wire;
2. Main Specifications:
Model |
WGY-50kN / 100kN / 200kN/300kN |
||
Max. Load(kN) |
50 50 50 |
100 |
200/300 |
Load accuracy |
Class 1 |
||
Load range |
2%~100%F·S |
||
Load resolution |
1/300000 |
||
Resolution of deformation |
0.04um |
||
Accuracy of displacement |
Within±0.5%of indicating load |
||
Resolution of displacement |
0.01mm |
||
Test speed(mm/min) |
0.05-500 stepless arbitrary setting |
||
within ±1% / ±0.5% of set speed |
|||
E-Tensile space(mm) |
Customized |
||
E-Compression space(mm) |
Customized |
||
F-Beam travel distance(mm) |
1050 |
1150 |
1150 |
H-Workbench thickness(mm) |
58 |
68 |
108 |
I-Base height(mm) |
435 |
460 |
560 |
Power supply |
AC220V±10%,50Hz/60Hz (can be customized) |
||
|
Video show
|
|||
