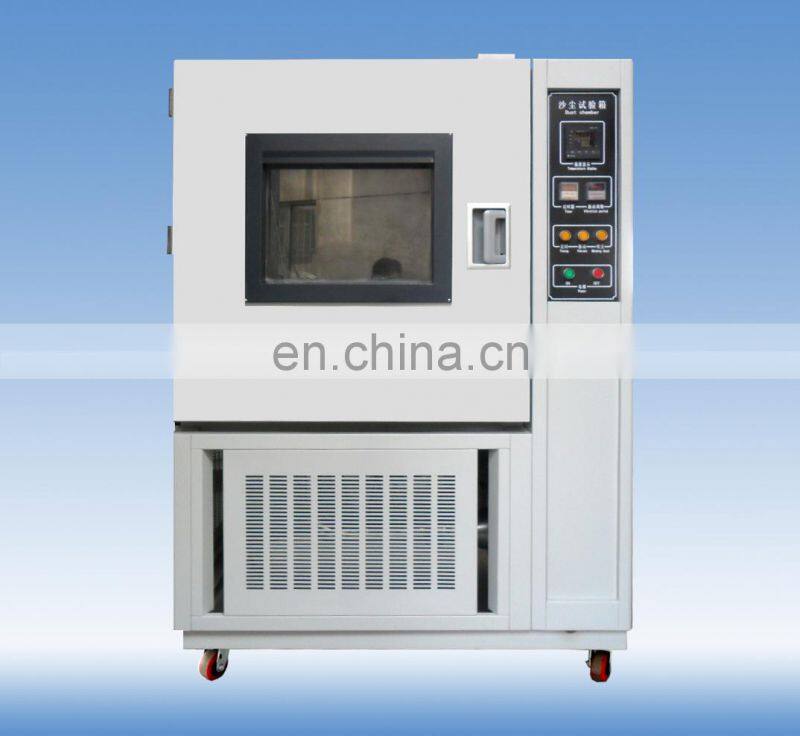

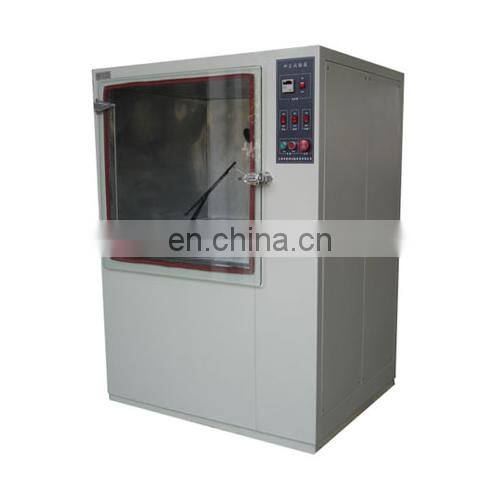

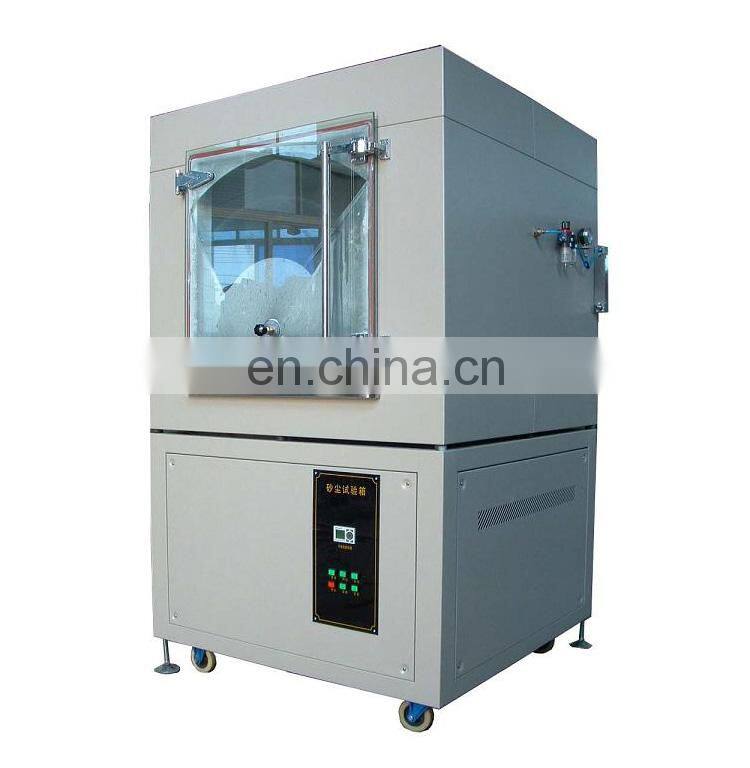

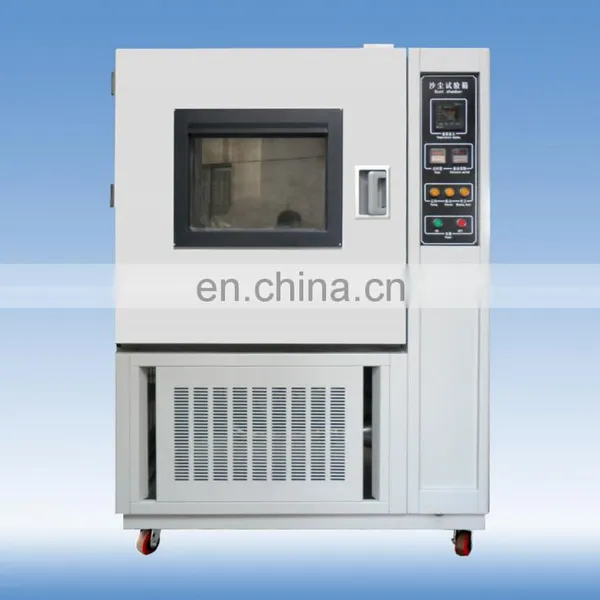

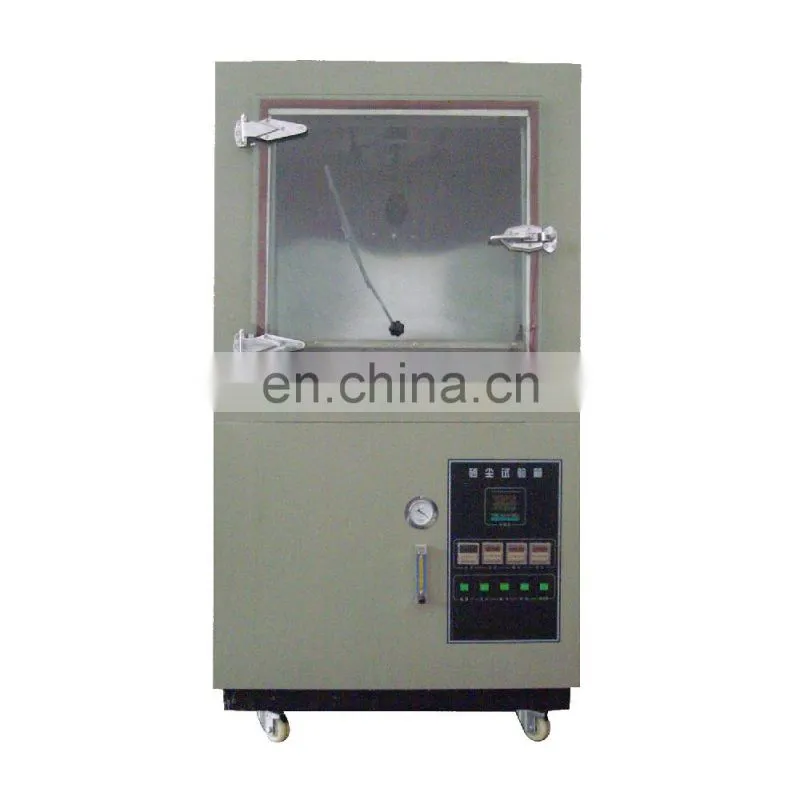

Help CenterLaboratory Constant Instrument Dustproof Test Machine IP66 IP54 Blowing Sand Dust Test Chamber
Related Products
-
Military Measuring Instrument Test Machine Sand and Dust Resistance Test ChamberUS$ 3,000 - 15,000MOQ: 1 Set -
Thermostatic Chamber High Temperature Testing Instrument Lab InstrumentUS$ 3,000 - 15,000MOQ: 1 Set
-
Constant Temperature Humidity Test Chamber High Temperature Test Machine Large Laboratory Test EquipmentUS$ 3,000 - 15,000MOQ: 1 Set
-
Laboratory Convection Oven Large Laboratory Test Equipment Price of Laboratory Vacuum OvenUS$ 3,000 - 15,000MOQ: 1 Set
-
Laboratory Hot Oven Large Laboratory Test Equipment Lab Muffle FurnaceUS$ 3,000 - 15,000MOQ: 1 Set
| Product Show: |
| Product Process: |
| Product Parameters: |
Dust Test Chamber
Application:
The dust test chamber is used to test the ability of electricians, electronics, automobiles, motorcycles and other outdoor products to work in an environment with free precipitation of dust and no obvious air flow. It can also simulate the medium condition of outdoor strong airflow and large amount of sand and dust, so as to simulate and test the shell sealing and real-time working ability of the sample
Implementation and meeting standards:
IEC60529, IEC 60598, GB2423.37-89 (Test L:dust test methods),
GB 4208-93 protective casing grade (IP code),
GB/T 4942.2-93(protective casing grade of low-voltage apparatus),
GB 7000.1-1996, GB 7001-1986(protective casing grade of lamps),
DIN40050 and IP5K0.
Specification:
ProductName |
Dust Test Chamber |
||
Product Model |
MQ-SC-500 |
MQ-SC-1000 |
MQ-SC-2000 |
InternalSize (W*D*H) mm |
800*800*800 |
1000*1000*1000 |
1250*1250*1250 |
Temperature Range |
RT+10°C ~100°C |
||
Sand Dust Heating |
Sand and dust dehumidifier |
||
Wire Spacing |
75um |
||
Mesh Diameter |
50um |
||
Powder Amount |
2kg/m2~4kg/m2 |
||
Dusting Mode |
1. Free dust mode: A centrifuge is used to blow sand dust to a height of 1/5 of the top of the box to make it settle freely 2. Sand-dust-blowing mode: bottom air pressure ash spraying, the pressure can be adjusted in three levels |
||
| Related Products: |
Click the pictures for detail product info
| Packing & Delivery: |
| About Us: |
Zhongkemeiqi (Tianjin) Technology Co., Ltd, which is a high-tech enterprise specializing in the research, development, production and sales of many kinds’ climatic chambers.
We have passed the ISO9001 quality management, and our team consists of several senior experts who have been engaged in the development, manufacture and maintenance of environmental test equipment for many years.
Temperature and Humidity test chamber,
Rapid Temperature Change test chamber,
Thermal Shock test chamber,
Temperature and Low-Pressure test chamber,
Temperature Humidity and Vibration test chamber;
Ultra-Low Temperature Chamber /Solution,
Aging test chamber (UV, Xenon lamp, Ozone) ,
Rain / Sand Dust test chamber,
Vacuum drying oven, …
| Factory Display: |
| Our Certificates: |
| FAQ: |
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
