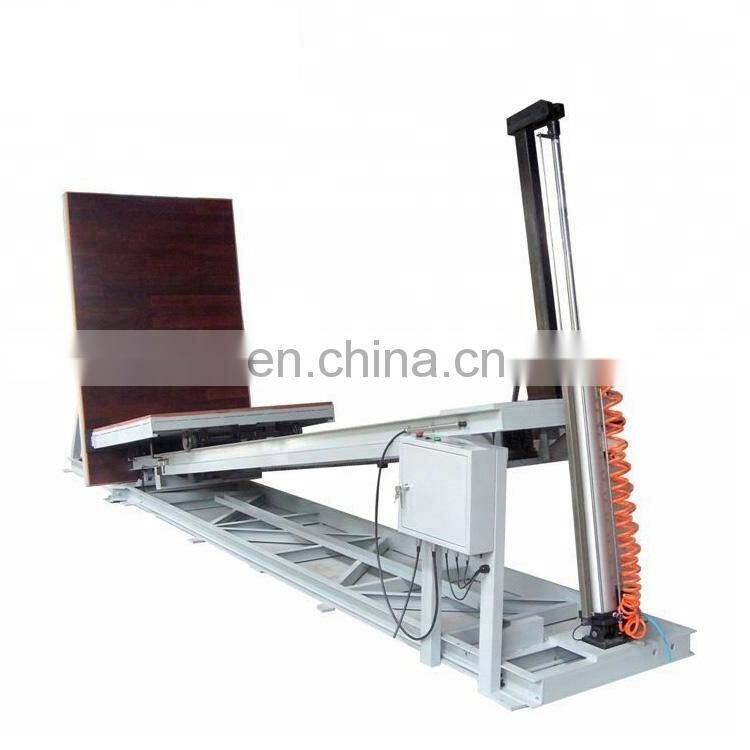

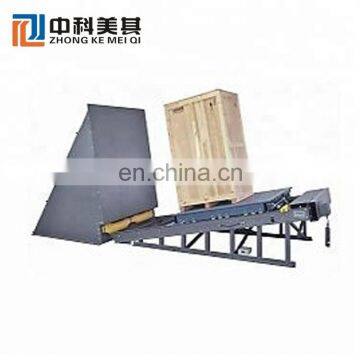

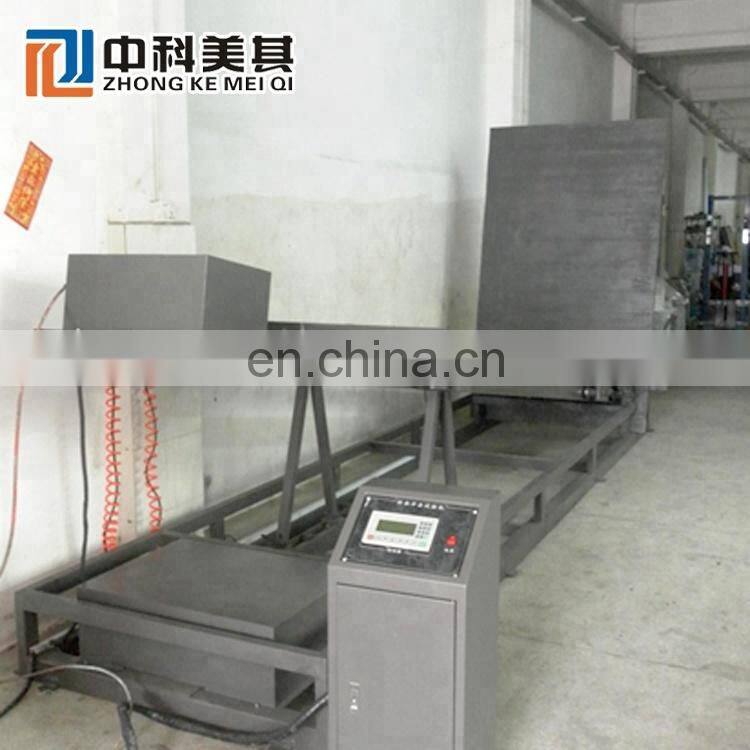

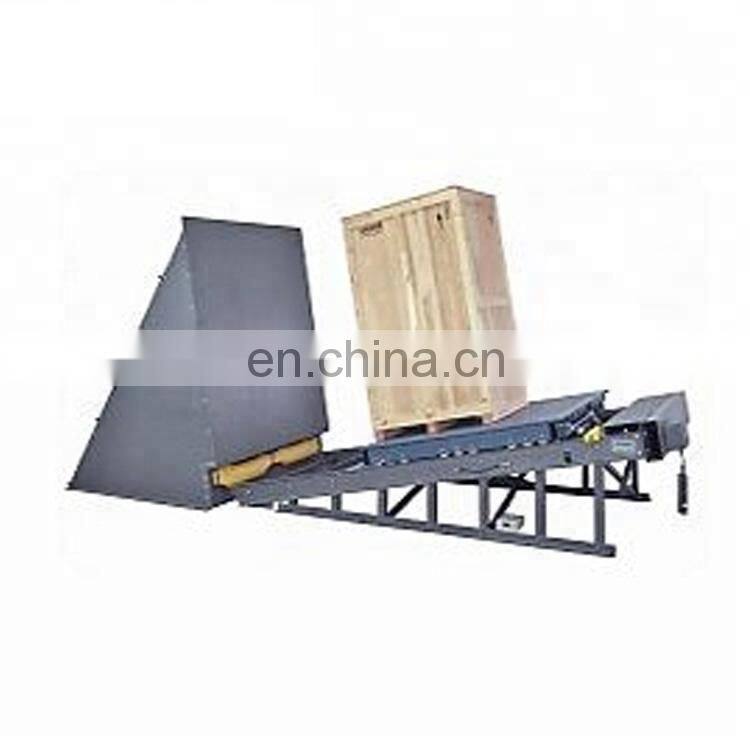

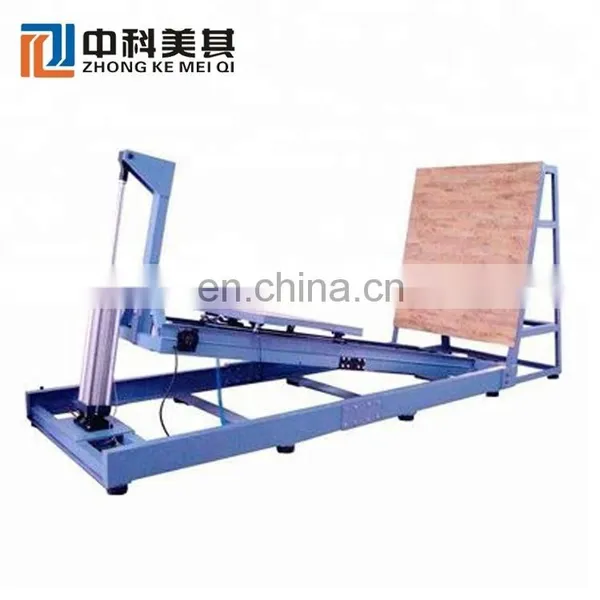

Incline impact test bench
Product Usage:
Slope impact test bench simulates the ability of product packaging to withstand impact damage in the actual environment, such as handling, stacking of shelves, sliding of motors, loading and unloading of locomotives, transportation of products, etc., as well as scientific research institutes, colleges and universities, Packaging test center, packaging material manufacturing plant, and foreign trade, transportation and other departments to carry out the impact of the common test equipment.
Execution and meeting criteria:
GJB2711-96 Military Transport Package Test Methods
GB/T 4857.11-2005 Packaging - Basic test for transport packages - Part 11: Horizontal impact test method
Features:
Flexible positioning of the electric block for easy fixing of the position and realizing the required speed change value
The height of the trolley is low, and the test piece is easy to install
The trolley table can be adjusted to level and the test piece is easy to install
Remote control can be used to fully ensure the safety of test personnel
Technical indicators:
product name | Slope impact test bench | ||||
Product model | MQ-I100 | MQ-I200 | MQ-I300 | MQ-I500 | |
Maximum load (kg) | 100 | 200 | 300 | 500 | |
Impact panel size (mm) | 1600×2000 | 2100×2000 | |||
Maximum slide length (mm) | 2000(or agreed) | ||||
Bevel angle | 100 ±10 | ||||
End impact speed | 2.608 | 2.334 | |||
Impact speed error | ≤±5% | ||||
Block table size (mm) | 1000×1000 | 1200×1200 | |||
Overall size (mm) | 6520×1600×2500 | 6320×2100×3000 | |||
power supply | 380VAC ±10% 50Hz | ||||
working environment | Ambient temperature: 0 ~ 40 °C, relative humidity: ≤ 80% RH, no strong vibration, electromagnetic radiation, no dust and corrosive substances around; | ||||
Note:1.according to the specific requirements of the user non-standard custom; 2.This technical information is subject to change without notice. | |||||
| Related Products: |
Click the pictures for detail product info
| Packing & Delivery: |
| About Us: |
Zhongkemeiqi (Tianjin) Technology Co., Ltd, which is a high-tech enterprise specializing in the research, development, production and sales of many kinds’ climatic chambers.
We have passed the ISO9001 quality management, and our team consists of several senior experts who have been engaged in the development, manufacture and maintenance of environmental test equipment for many years.
Temperature and Humidity test chamber,
Rapid Temperature Change test chamber,
Thermal Shock test chamber,
Temperature and Low-Pressure test chamber,
Temperature Humidity and Vibration test chamber;
Ultra-Low Temperature Chamber /Solution,
Aging test chamber (UV, Xenon lamp, Ozone) ,
Rain / Sand Dust test chamber,
Vacuum drying oven, …
| Factory Display: |
| Our Certificates: |
| FAQ: |
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
