| Product Show: |
| Product Advantages: |
| Product Process: |
| Product Parameters: |

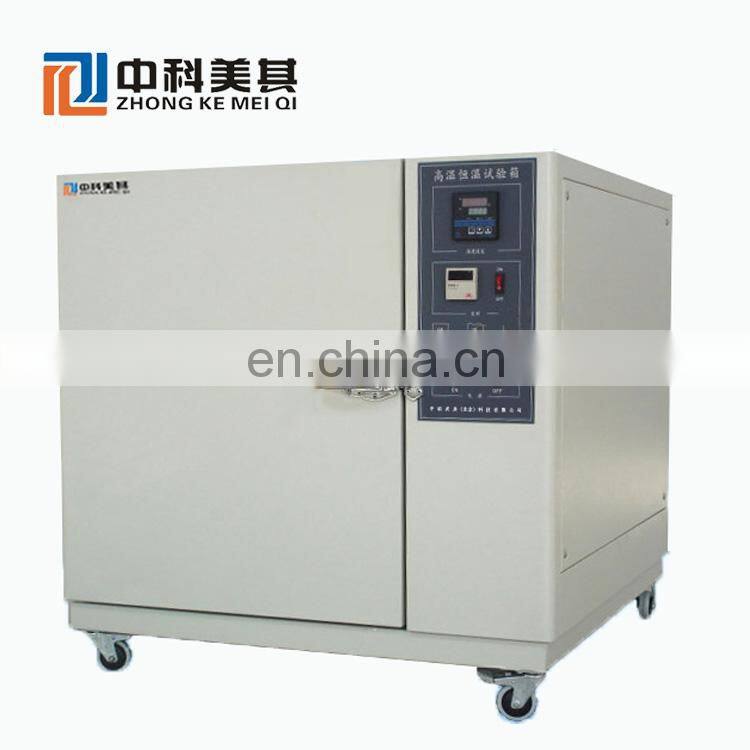

High temperature test chamber
Product Usage:
High temperature test chambers are widely used in aviation, aerospace, electronics, instrumentation, electrical products, materials, automotive parts, plastics and rubber products, chemicals,building materials, medical, photovoltaic and other industries.They test the temperature stress, temperature aging screening, reliability testing, performance testing, weathering test, high temperature storage of test pieces under high temperature and environmental conditions.
Implementation and meeting standards:
GB/T 11158-2008: high temperature test chamber technical conditions
GB/T 2423.2-2008: high temperature test methods
GJB 150.3A-2009 : high temperature test methods
GB/T 5170.2-2008 :electrical and electronic products environmental test
equipment test methods
Product features:
Excellent performance: performance indicators better than national and military standard requirements
Compact shape: reasonable design, saving space
Optimization of wind tunnel: based on the professional CFD fluid mechanics design, the air circulation is more reasonable
Simple operation: humanized operation interface, one-stop start-up, no professional training
Multiple protection: ensure the safety of the personnel, test pieces and equipment, worry-free use
Technical indicators:
Product name | high temperature test chamber | |||||
Product model | MQ-HT100 | MQ-HT250 | MQ-HT500 | MQ-HT1000 | ||
Nominal volume | unit/L | 100 | 250 | 500 | 1000 | |
Inner size | Width × depth × height (mm) | 450×450×500 | 600×600×700 | 700×800×900 | 1000×1000×1000 | |
External size | Width × depth × height (mm) | 790×770×900 | 860×920×1150 | 1050×1150×1300 | 1300×1350×1400 | |
performance index | Temperature range | A,RT+20℃~250℃ B,RT+20℃~300℃ | ||||
Temperature fluctuation | ±0.5℃ | |||||
Temperature uniformity | ≤±2.0℃ | |||||
Temperature deviation | ≤±2.0℃ | |||||
Heating rate | ≥3.0℃/ min | |||||
Main components | Control system | SIEMENS programmable controller + touch screen + independent development program | ||||
Heating system | Fully independent system, high efficiency stainless steel fin tube heater | |||||
Sensor | A PT100 | |||||
Circulatory system | High temperature and low noise motor, stainless steel centrifugal impeller | |||||
Main materials | External material | High-quality carbon steel plate, phosphating electrostatic spray treatment | ||||
Internal material | The mirror surface treatment of international standard SUS304 stainless steel plate | |||||
Insulation material |
Superfine glass fiber | |||||
Sealing material | High temperature and environmental protection type silicone rubber seal strip | |||||
Voltage | 220±10% VAC,50HZ,L+N+G | 380±10% VAC,3L+N+G | ||||
Communication interface | RS232 communication interface and USB data interface | |||||
Standard configuration | 1 sets of sample frames and 1 sets of test lead holes | |||||
Self selected accessories | Recorder, remote control software, insulating sample frame, and split operator | |||||
Safety device | Leakage, short circuit, motor overheating, heater overheating, multiple overtemperature protection | |||||
Environmental requirements | Ambient temperature: 5~35 degrees Celsius, relative humidity is less than or equal to 85%RH, no strong vibration, electromagnetic radiation, no dust and corrosive substances | |||||
Note: 1. The temperature performance parameters are all at the ambient temperature of 25 degrees C, and under the condition of no load in the studio, the test is based on GB/T5170.2-2008. 2. The non - standard high temperature test chamber can be made in accordance with the specific requirements of the user. 3. This technical information is subject to change without notice. | ||||||
| Related Products: |
Click the pictures for detail product info
| Packing & Delivery: |
| About Us: |
Zhongkemeiqi (Tianjin) Technology Co., Ltd, which is a high-tech enterprise specializing in the research, development, production and sales of many kinds’ climatic chambers.
We have passed the ISO9001 quality management, and our team consists of several senior experts who have been engaged in the development, manufacture and maintenance of environmental test equipment for many years.
Temperature and Humidity test chamber,
Rapid Temperature Change test chamber,
Thermal Shock test chamber,
Temperature and Low-Pressure test chamber,
Temperature Humidity and Vibration test chamber;
Ultra-Low Temperature Chamber /Solution,
Aging test chamber (UV, Xenon lamp, Ozone) ,
Rain / Sand Dust test chamber,
Vacuum drying oven, …
| Factory Display: |
| Our Certificates: |
| FAQ: |
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
