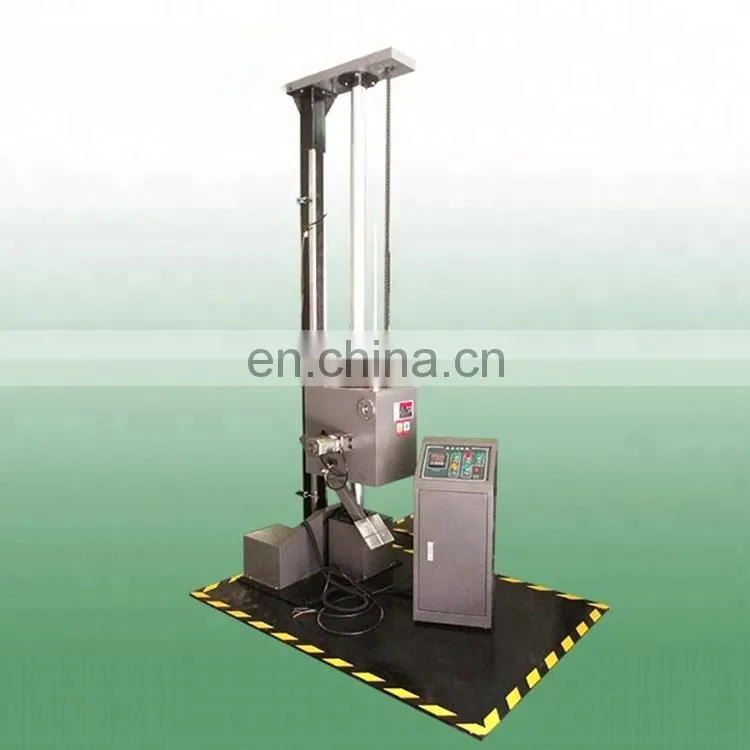

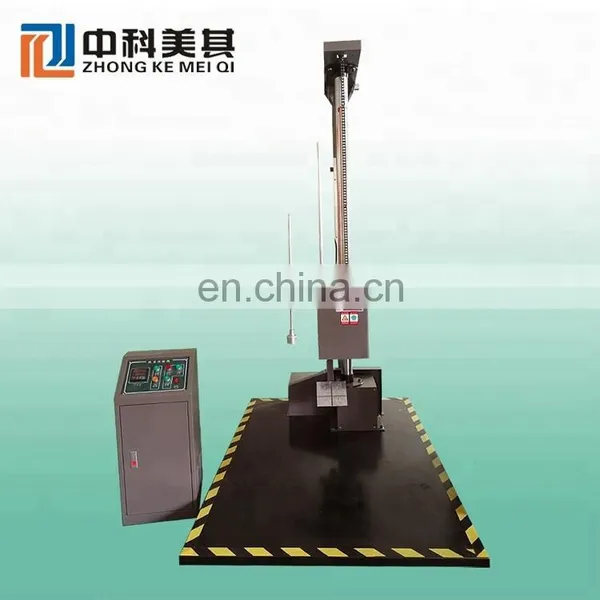

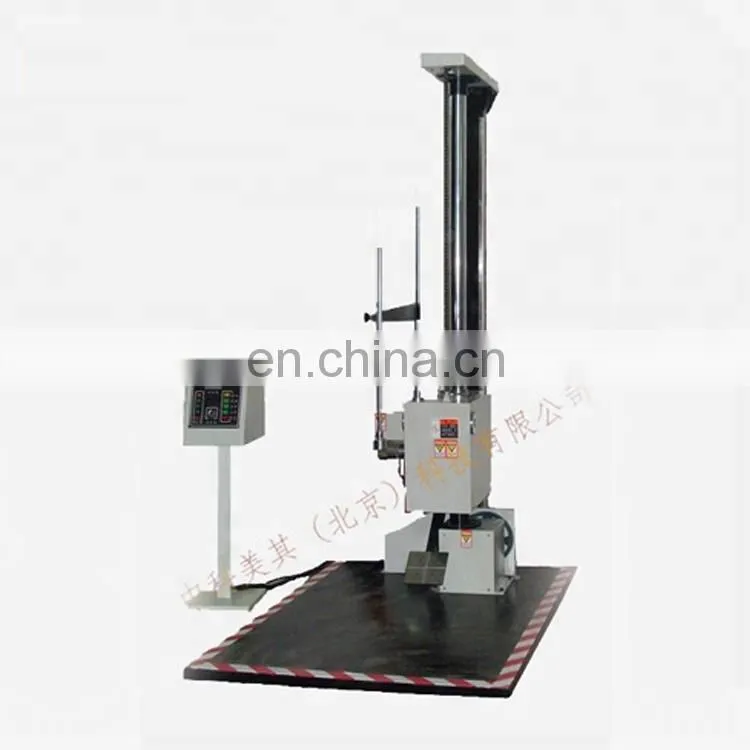

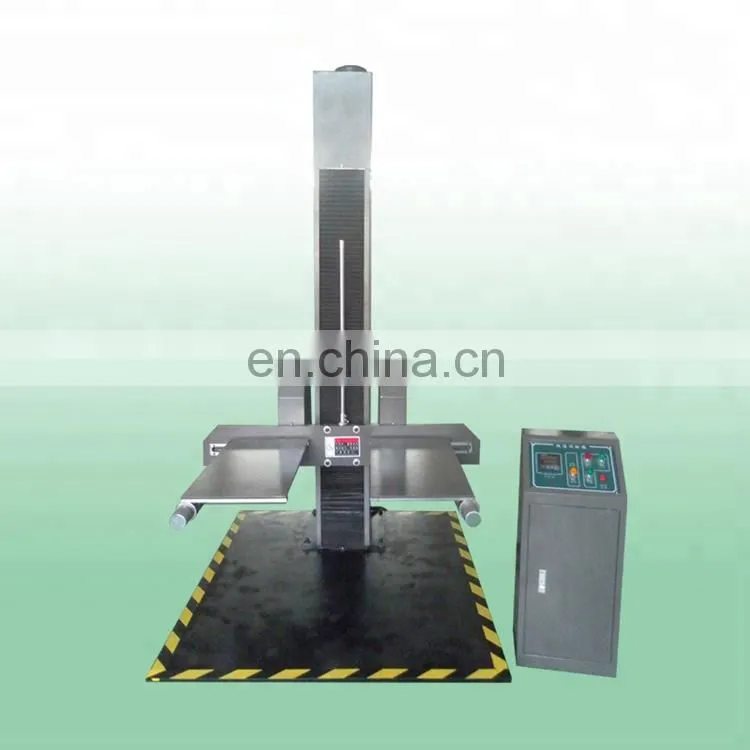

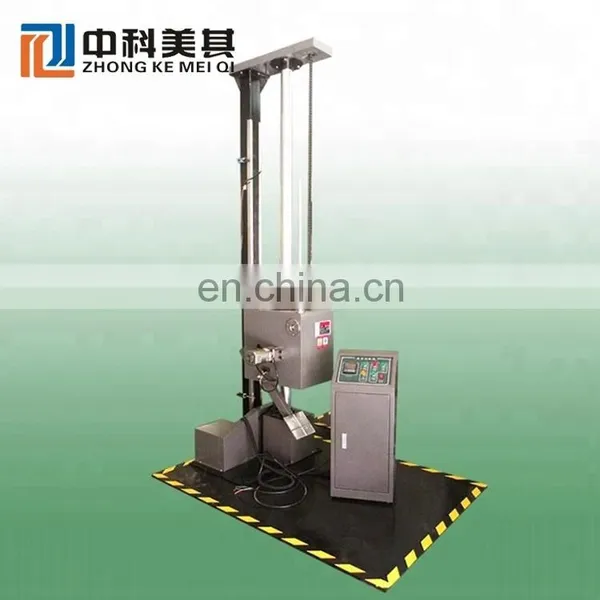

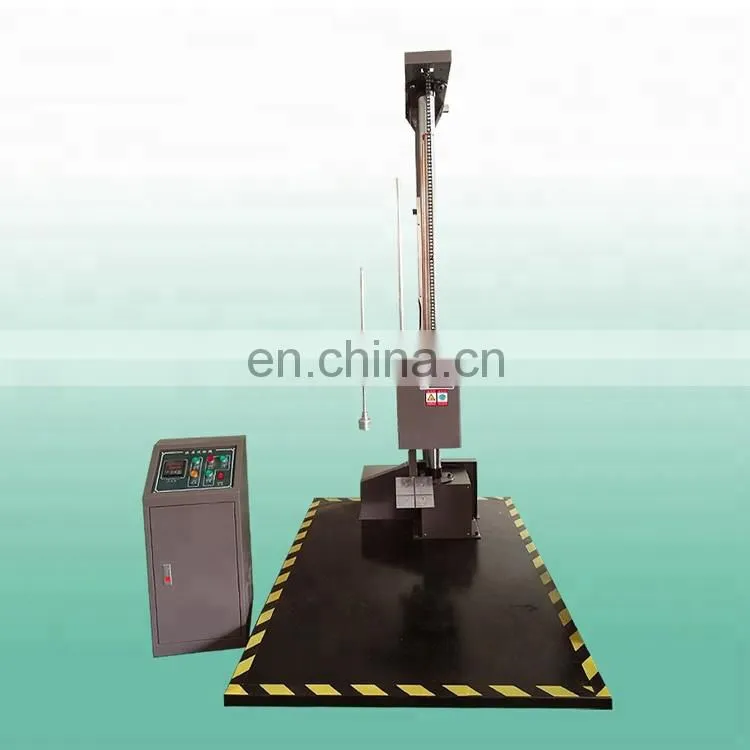

lab equipment chair bench drop tester testing equipment for package testing
- 100 Set / Sets per Month
- Tianjingang
- T/T Credit Card
Product Details
Brand Name: | Zhongkemeiqi | Place of Origin: | Tianjin, China | Model Number: | MQ-D2000 |
Power: | Electronic |
Product Description
Product Show: |
Product Process: |
Product Parameters: |
Drop table
Product Usage:
Drop benches are used to simulate the resistance to drop and impact of larger and heavier packaging products, and to achieve drop tests on the surface, edges and corners of test products. It is used to assess the ability of a product package to withstand falling during transportation and handling, thereby improving and perfecting package design.
Execution and meeting criteria:
GB/T 4857.5-92 packaging and transportation package drop test method
GB/T 2423.5-2008 Environmental testing for electric and electronic products Part 2: Test methods Test Ea and guidelines: Impact
ISO2248-1985(E) Packaging - Complete and Fully Filled Transport Packages Vertical Impact Drop Test
IEC 68-2-27 Test Method Ea: Impact
Features:
Upper and lower displacement limit, safe and reliable
Raise the height of any adjustment to meet the different needs of users
Drop bench can clamp drop test on product surface, edge and corner
When installing, the customer only needs to place the machine on a flat marble or concrete floor without special foundation
Technical indicators:
Product name | Drop bench | ||
Product number | MQ-D1500 | MQ-D2000 | MQ-D2500 |
Drop height(mm) | 300~1500 | 300~2000 | 300~2500 |
Maximum size of test piece(mm) | 1000×800×1000 | 1000×800×1000 | 1200×800×1000 |
Floor size(mm) | 1700×1200×40 1700×1200×16 | ||
Maximum load(kg) | 60 100 | ||
Falling way | Electric type(E) Pneumatic(P) | ||
experiment method | Face, edge, corner | ||
Height display | Digital | ||
control box | Split type | ||
Table body weight (kg) | 600 800 900 | ||
power supply | 380VAC ±10% 50Hz | ||
working environment | Ambient temperature: 5 ~ 35 °C, relative humidity: ≤ 40% RH, no strong vibration, electromagnetic radiation, no dust and corrosive substances around; | ||
Explanation: 1.according to the specific requirements of the user non-standard custom; 2. This technical information is subject to change without notice. |
Related Products: |
Click the pictures for detail product info
Packing & Delivery: |
About Us: |
Zhongkemeiqi (Tianjin) Technology Co., Ltd, which is a high-tech enterprise specializing in the research, development, production and sales of many kinds’ climatic chambers.
We have passed the ISO9001 quality management, and our team consists of several senior experts who have been engaged in the development, manufacture and maintenance of environmental test equipment for many years.
Temperature and Humidity test chamber,
Rapid Temperature Change test chamber,
Thermal Shock test chamber,
Temperature and Low-Pressure test chamber,
Temperature Humidity and Vibration test chamber;
Ultra-Low Temperature Chamber /Solution,
Aging test chamber (UV, Xenon lamp, Ozone) ,
Rain / Sand Dust test chamber,
Vacuum drying oven, …
Factory Display: |
Our Certificates: |
FAQ: |
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
