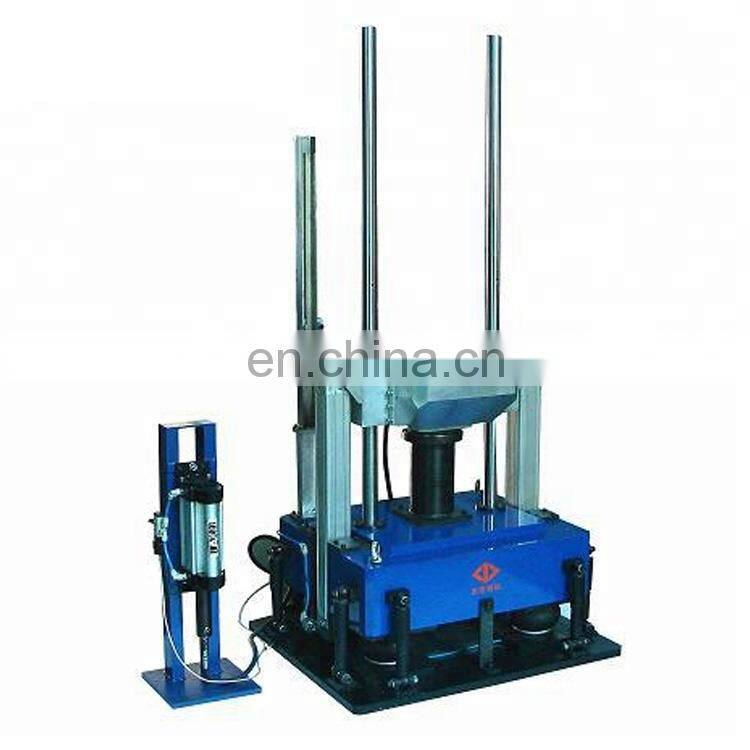

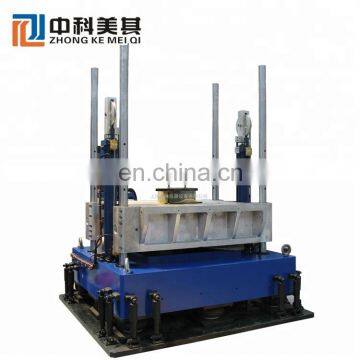

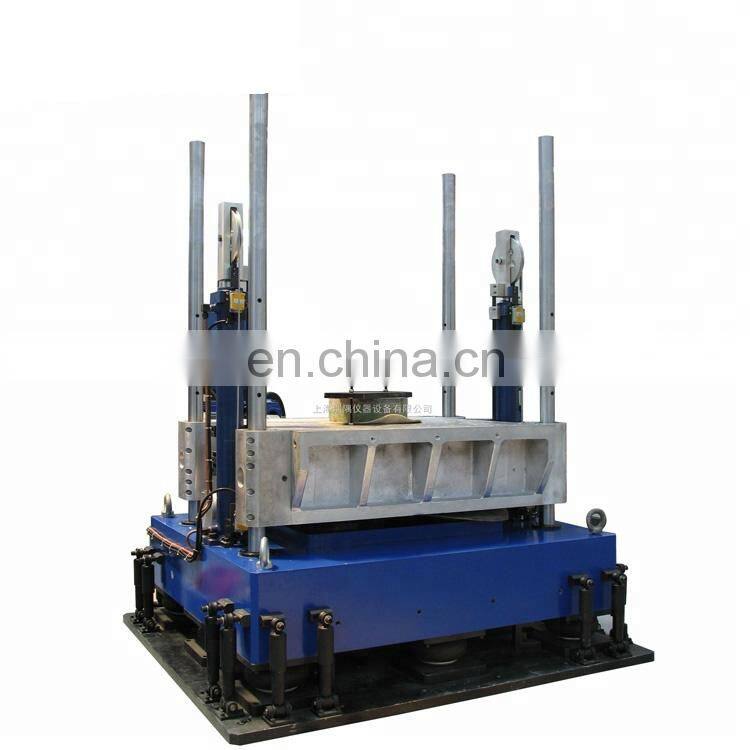

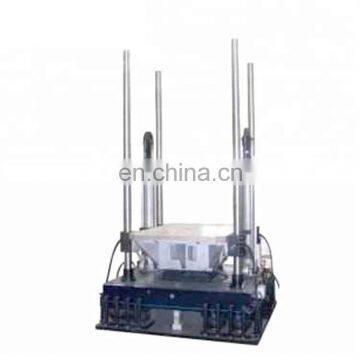

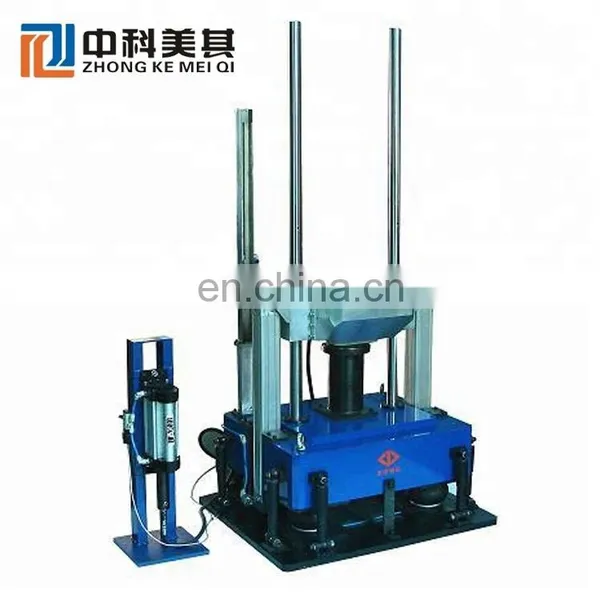

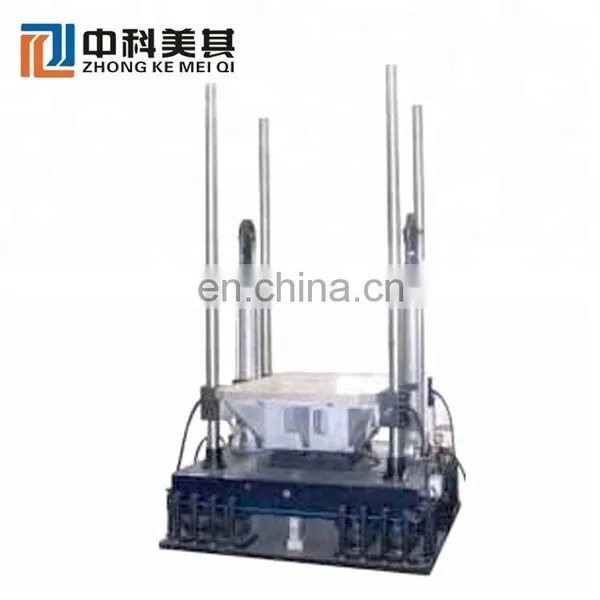

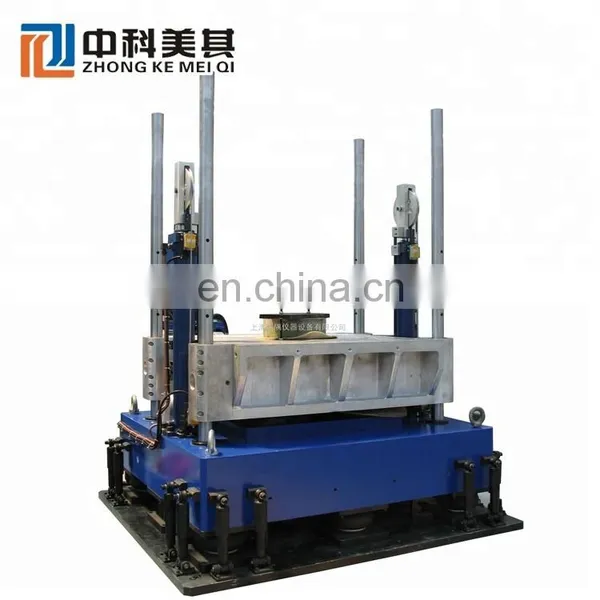

Hydraulic vertical impact test bench
Product Usage:
The hydraulic vertical impact test bench is used to simulate the impact of the product in the actual environment, and to evaluate the reliability of the product in the impact environment and the integrity of the structure. The conventional half sine wave, post-peak sawtooth wave, square wave, and impact response spectrum functions can be performed.
Execution and meeting criteria:
GJB 150.16A-2009: Vibration Test Method
GJB 360B-2009 :Test Methods for Electronic and Electrical Components
JJF 1270-2010 :Calibration Specification for Temperature, Humidity and Vibration Integrated Environmental Testing System
GB/T2423.5-2008 :Environmental testing for electric and electronic products Part 2: Test methods Test Ea and guidelines Impact
IEC60068-2-27-2008 :Environmental Test Impact
JJG541-2005: Falling Impact Test Bench Verification Procedure
Product features:
Designed from the buffer base, greatly reducing the impact on the ground
Optimized design of cast aluminum-magnesium alloy table rigidity, high frequency clutter
Built-in hydraulic brake mechanism, large braking force, effectively prevent secondary rebound
Digital lift height feedback control system ensures repeatability of impact
Very rich, multi-track guide pillars, combined with a hydraulically balanced lifting system for smooth, noiseless lifting
Technical indicators:
product name | Hydraulic vertical impact test bench | |||||||||||||||||
Product model | MQ-A5 | MQ-A50 | MQ-A100 | MQ-A400 | MQ-A1000 | |||||||||||||
Maximum load (kg) | 5 | 50 | 100 | 400 | 1000 | |||||||||||||
Table size (mm) | 200×200 | 400×400 | 500×500 | 600×800 | 1000×1000 | |||||||||||||
Shock waveform | Half sine | Half sine | Half sine | Half sine | Half sine | Half sine | Half sine | Half sine | Half sine | Half sine | Half sine | Half sine | Half sine | Half sine | ||||
Impact acceleration (m/s2) | 150 ~15000 | 150 ~1000 | 100 ~12000 | 150 ~1000 | 300 ~1000 | 100 ~11000 | 150 ~1000 | 300 ~1000 | 100 ~6000 | 150 ~1000 | 300 ~1000 | 100 ~2000 | 150 ~600 | 300 ~600 | ||||
Pulse duration (ms) | 18 ~ 0.8 | 18 ~ 6 | 40 ~ 1 | 18 ~ 6 | 12 ~ 6 | 40 ~ 1 | 18 ~ 6 | 12 ~ 6 | 40 ~ 2 | 18 ~ 6 | 12 ~ 6 | 40 ~ 6 | 18 ~ 6 | 12 ~ 6 | ||||
Overall size (mm) | 900×700×2300 | 1200×800×2600 | 1300×1100×2600 | 1500×1200×2700 | 2000×1500×2800 | |||||||||||||
Table body weight (kg) | 900 | 2000 | 2400 | 5000 | 10000 | |||||||||||||
power supply | 380VAC ±10% 50Hz | |||||||||||||||||
Note:1.according to the specific requirements of the user non-standard custom; 2.This technical information is subject to change without notice. | ||||||||||||||||||
