| Product Show: |
| Product Advantages: |
| Product Process: |
| Product Parameters: |

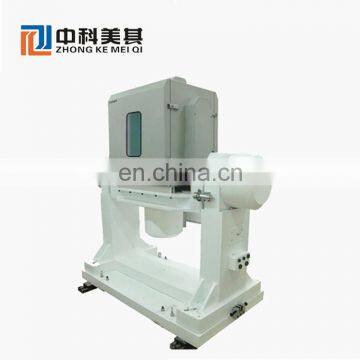

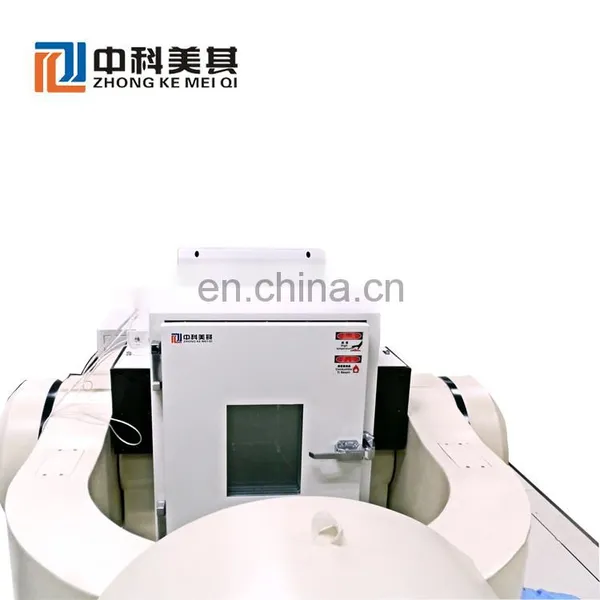

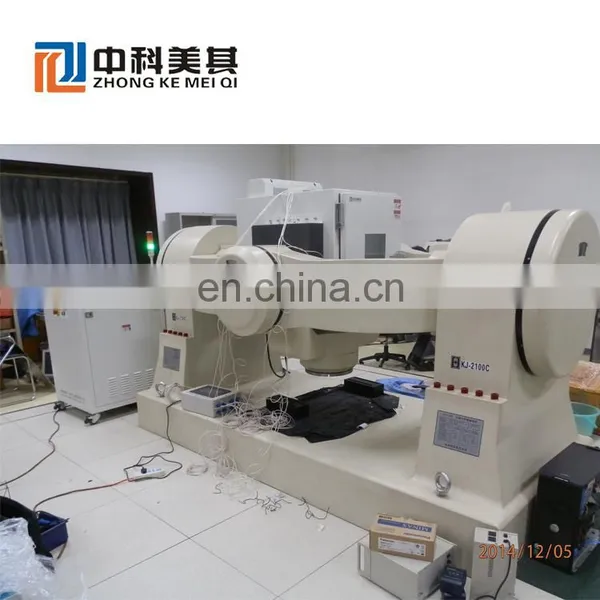

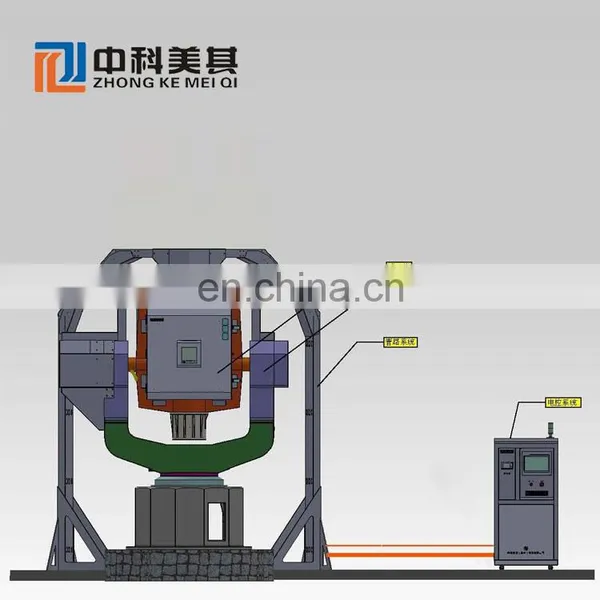

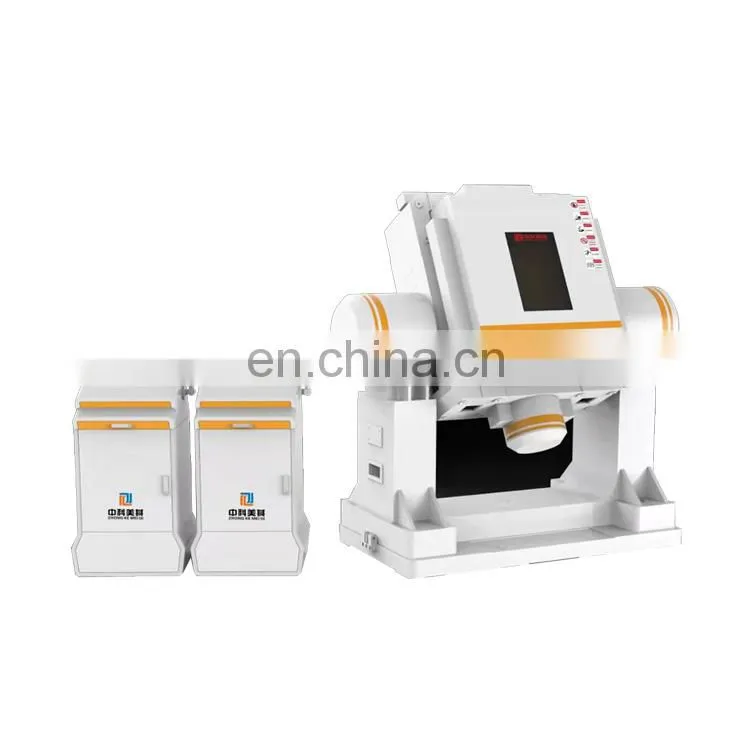

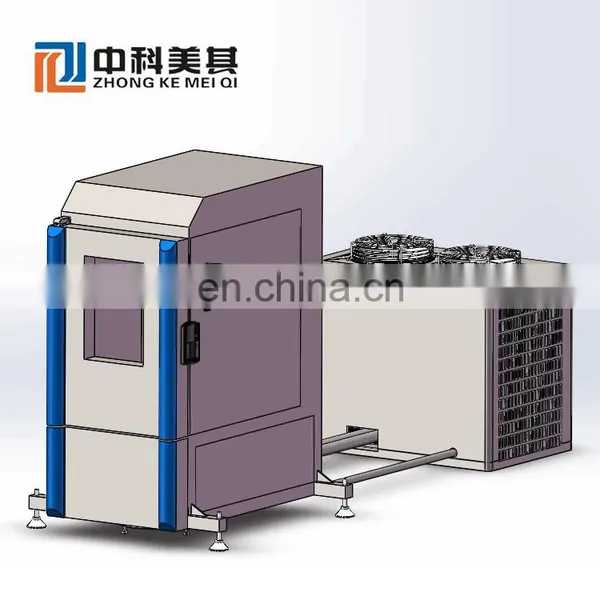

Turntable with temperature control chamber
Product Usage:
The turntable temperature control box is suitable for aerospace electronics industry and other industries to carry out environmental simulation test of the test specimen in motion, to test the reliability of the test piece in the actual movement.
Implementation and meeting standards:
GB/T 10589-2008: cryogenic test chamber technical conditions
GB/T 10592-2008: high and low temperature test chamber technical conditions
GB/T 2423.1-2008: low temperature test method
GB/T 2423.2-2008: high temperature test method
GB/T 2423.22-2008: temperature change rate test method
GJB 150.3A-2009: high temperature test method
GJB 150.4A-2009 :low temperature test method
GJB 360B-2009: test methods for electronic and electrical components
JJF 1101-2003 :environmental and test equipment temperature and humidity
calibration specifications
GB/T 5170.2-2008: test method for environmental test equipment of electric and electronic products Temperature test equipment
Product features:
Rich experience: years of experience in designing and manufacturing temperature control cabinets for turntables, and strong technical team support
Full set of products: single-axis, double-axis, three-axis rotary table with temperature control box, multi-standard model products
Efficient and energy-saving: reduce power consumption by more than 30% during low temperature test
Excellent performance: performance indicators better than national and military standard requirements
Compact and lightweight: Compact and lightweight
Optimize the air duct: Based on the professional CFD fluid mechanics design, the air circulation is more reasonable
Simple operation: user-friendly operation interface, one-stop start-up, no professional training
Rich interfaces: Provide drivers to meet users' secondary development needs
Multiple Protection: Ensure the safety of personnel, test pieces and equipment, worry-free use
Technical indicators
Product name | Turntable with temperature control box | ||||
Nominal volume | Unit/L | 100 | 216 | 343 | 512 |
Inner size | Width × depth × height (mm) | 450×450×500 | 600×600×600 | 700×700×700 | 800×800×800 |
Turntable type | Single-axis turntable, double-axis turntable, three-axis turntable | ||||
Corner range | Inner Ring: Continuous Unlimited; Outer Ring: Continuous Unlimited | ||||
Performance index | Temperature range | A,-60℃~100℃ B,-80℃~100℃ | |||
Temperature fluctuation | ±0.5℃ | ||||
Temperature uniformity | ≤±2.0℃ | ||||
Temperature deviation | ≤±2.0℃ | ||||
Heating rate | ≥2.0/5.0/10.0℃/ Min | ||||
Cooling rate | ≥2.0/5.0/10.0℃/ Min | ||||
Refrigeration method | Compressor refrigeration | ||||
Cooling method | Air-cooled/water-cooled | ||||
Unit installation method | Indoor integrated, indoor split, outdoor split | ||||
Main components
| Control System | Siemens programmable controller + touch screen + independent development program | |||
Heating system | Fully independent system, high efficiency stainless steel finned tube heater | ||||
Humidifying system | Imported electronic humidity sensor | ||||
Cooling System | Importer-type scroll compressor | ||||
Circulatory system | Temperature and low noise motor, stainless steel centrifugal impeller | ||||
Main materials | Carton material | High-quality carbon steel plate, phosphating electrostatic spray treatment | |||
Inner box material | International standard SUS304# stainless steel mirror treatment | ||||
Insulation material | Hard flame retardant polyurethane foam | ||||
Sealing material | High and low temperature environment-friendly silicone rubber seal | ||||
Cabinet and turntable connection | Bottom flexible seal shaft hole | ||||
Voltage | 220±10% VAC, L+N+G; 380±10% VAC, 3L+N+G | ||||
Communication Interface | RS232 communication interface, USB data interface | ||||
Standard configuration | Sample holder 1 set, test lead hole 1 set | ||||
Optional accessories | Recorder, Remote Control Software, Insulated Sample Holder, Split Manipulator, Dry Air Purge | ||||
safety devices | Leakage, short circuit, motor overheating, heater overheating, compressor overpressure, overload, multiple overtemperature protection | ||||
Environmental requirements | Ambient temperature: 5 ~ 35 °C, relative humidity: ≤ 85% RH, no strong vibration, electromagnetic radiation, dust and corrosive substances around; | ||||
Note: 1.the temperature performance parameters are in the ambient temperature of 25 °C, studio with no load table, effective uniform area, in accordance with GB/T5170.2-2008 test; 2.can be customized according to the specific requirements of non-standard laboratories; 3. This technical information is subject to change without notice. | |||||
| Related Products: |
Click the pictures for detail product info
| Packing & Delivery: |
| About Us: |
Zhongkemeiqi (Tianjin) Technology Co., Ltd, which is a high-tech enterprise specializing in the research, development, production and sales of many kinds’ climatic chambers.
We have passed the ISO9001 quality management, and our team consists of several senior experts who have been engaged in the development, manufacture and maintenance of environmental test equipment for many years.
Temperature and Humidity test chamber,
Rapid Temperature Change test chamber,
Thermal Shock test chamber,
Temperature and Low-Pressure test chamber,
Temperature Humidity and Vibration test chamber;
Ultra-Low Temperature Chamber /Solution,
Aging test chamber (UV, Xenon lamp, Ozone) ,
Rain / Sand Dust test chamber,
Vacuum drying oven, …
| Factory Display: |
| Our Certificates: |
| FAQ: |
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
