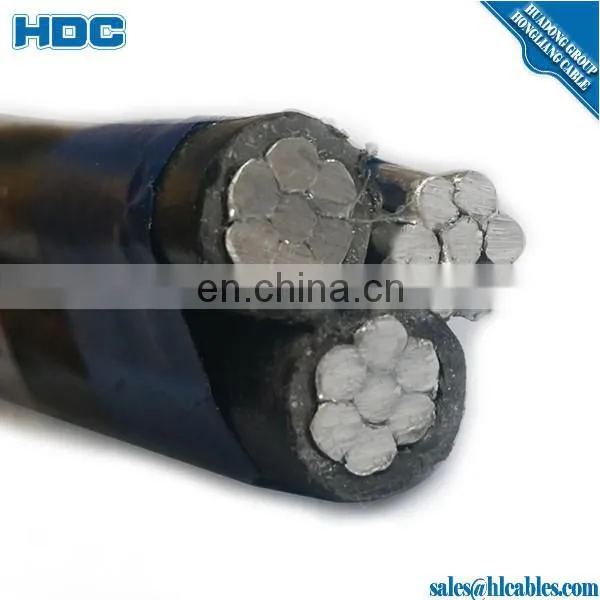

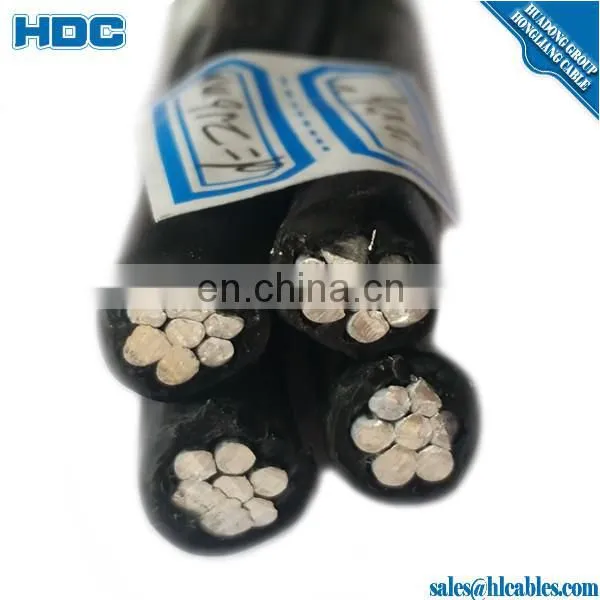

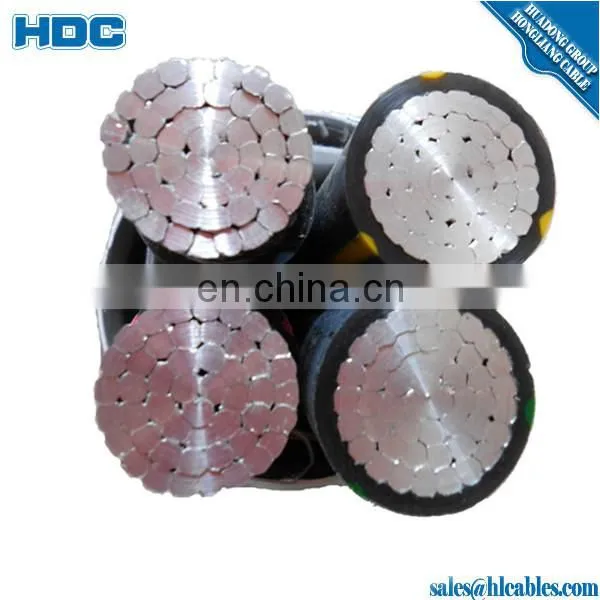

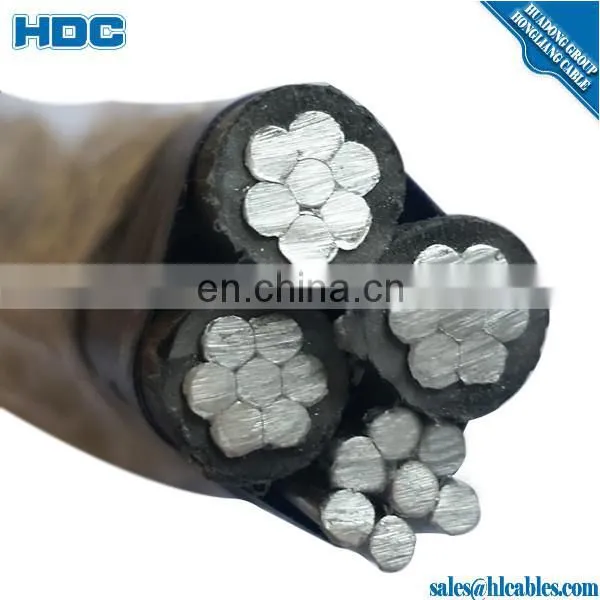

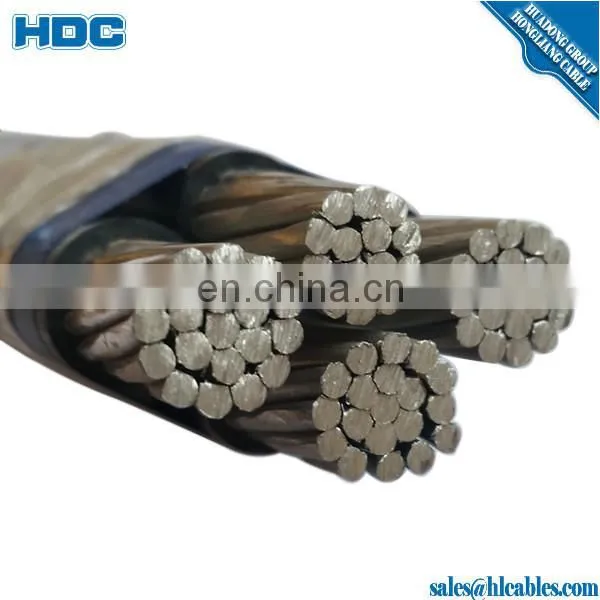

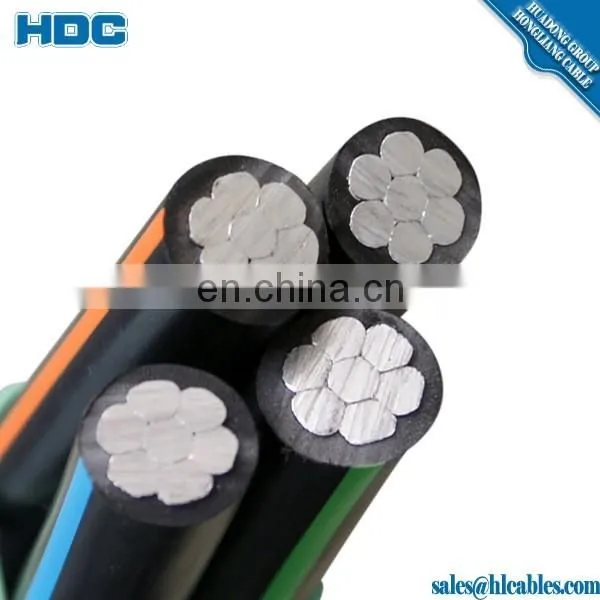

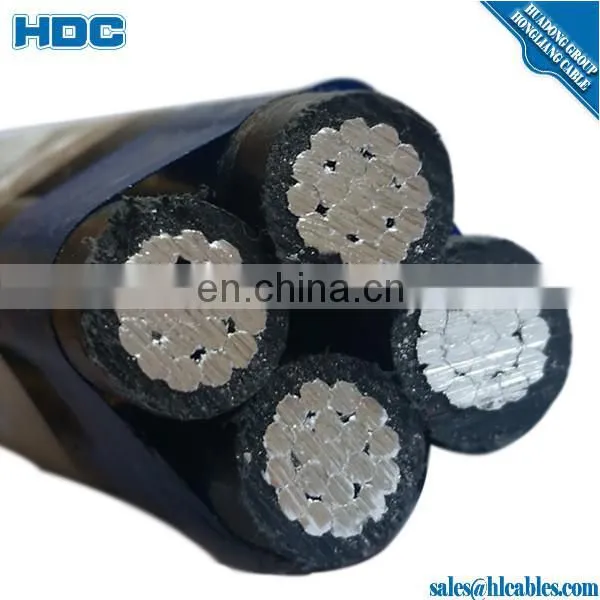

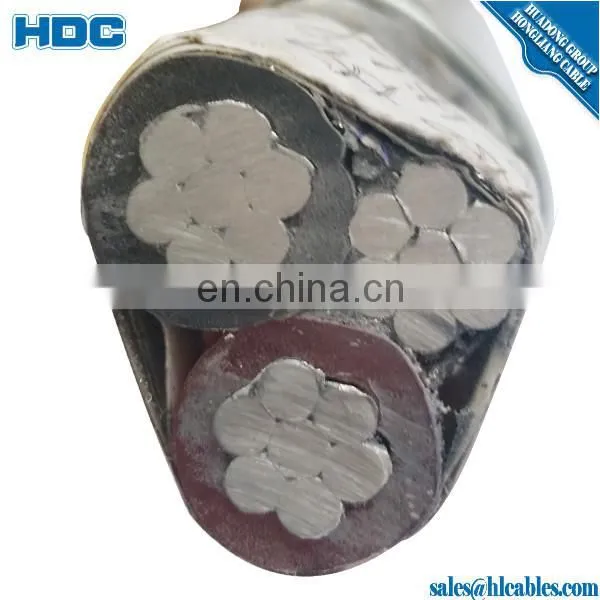

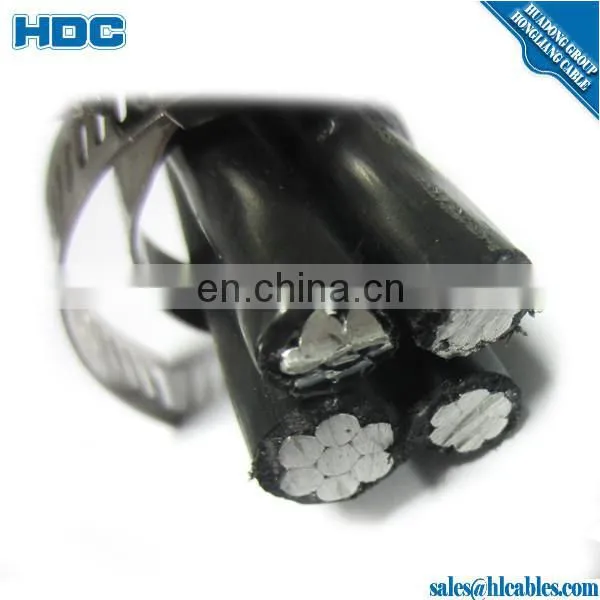

CABO DE ALUMINIO 3*35+35MM2 XLPE ABC OVERHEAD CABLE.
Construction
1.Phase Conductor: Aluminum conductor and compact circular stranded
2.Messenger Conductor: Aluminum alloy conductor and compact circular stranded
3.Insulation: Extruded black weather-resistant Polythylene (PE) or Cross-linked Polythylene(XLPE)
4.Completed cable:Insulated phase conductors shall be held firmly onto the insulated neutral messenger
1 |
2 |
3. |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
|
Specification |
Conductor |
Insulation Thickness |
cable core
|
|||||||
Type |
Area |
Stranding |
Max. Resistance |
Conductor Dia
|
BreakingLoad |
(normal) |
Outer Dia
|
|||
|
(mm2) |
|
20°C (Ω/km) |
Min (mm) |
Max (mm) |
Min (daN) |
(mm) |
Min (mm) |
Max (mm) |
|
|
Phase core or lighting core
|
16 25 35
50 70 95 120 150 |
7 7 7
7 12 19 19 19 |
1.9l 1.20 0.868
0.641 0.443 0.320 0.253 0.206 |
4.6 5.8 6.8
7.9 9.7 11.0 12.0 13.9 |
5.1 6.3 7.3
8.4 10.2 12.0 13.1 15.0 |
190 300 -
- - - - - |
1.2 1.4 1.6
1.6 1.8 1.8 1.8 1.7 |
7.0 8.6 10.0
11.1 13.3 14.6 15.6 17.3 |
7.8 9.4 lO.g
12.0 14.2 15.7 16.7 18.6 |
|
Self-supported conductor |
54.6 70 95 |
7 7 19 |
0.63 0.50 0.343 |
9.2 10.0 12.2 |
9.6 10.2 12.9 |
1660 2050 2750 |
1.6 1.5 1.6 |
12.3 12.9 15.3** |
13.0 13.6 16.3** |
|
Test line |
1.5 |
1 |
12.1 |
- |
1.5 |
- |
1.2 |
3.7 |
4. |
|
CABO DE ALUMINIO 3*35+35MM2 XLPE ABC OVERHEAD CABLE.
1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement
2.By standard wooden drum or roll.
3.Drum size:1100mm*1100mm*1100mm or as your request.
CABO DE ALUMINIO 3*35+35MM2 XLPE ABC OVERHEAD CABLE.
Advanced connectors & assembly cables machines and testing equipments.
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production,
research & development,and domestic& international trade.
Established year: 1988
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km.
CABO DE ALUMINIO 3*35+35MM2 XLPE ABC OVERHEAD CABLE Standard:
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.
Meanwhile we can produce based on customers' requirements and specifications.
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
