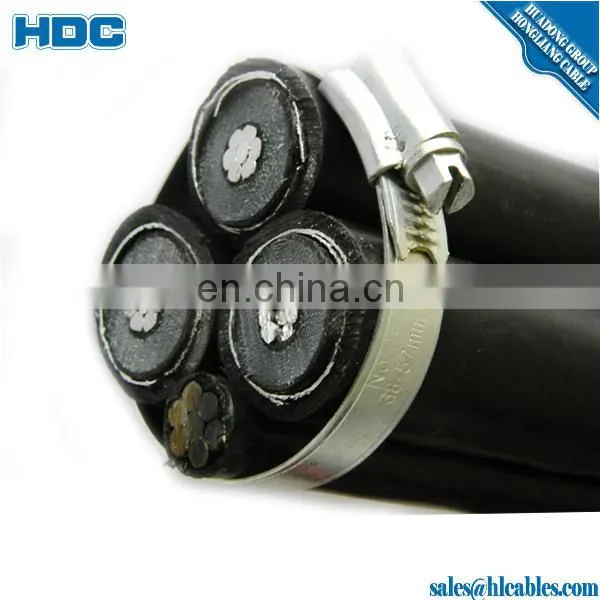

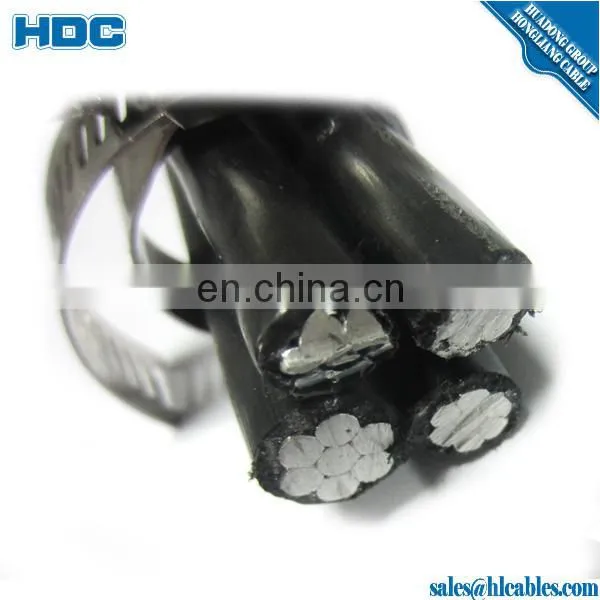

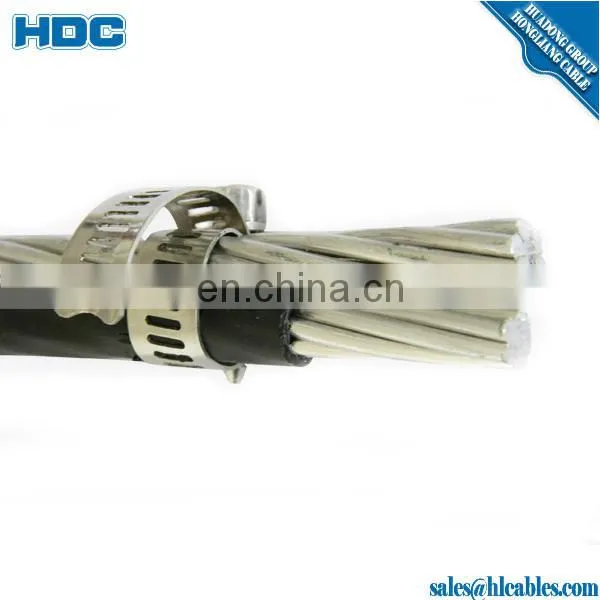

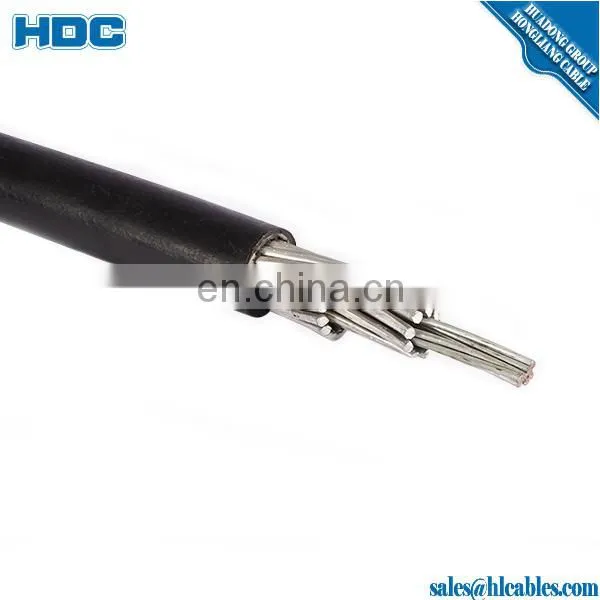

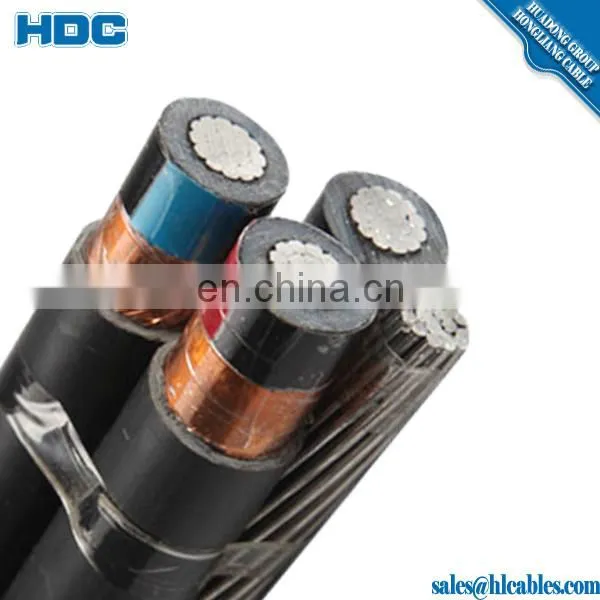

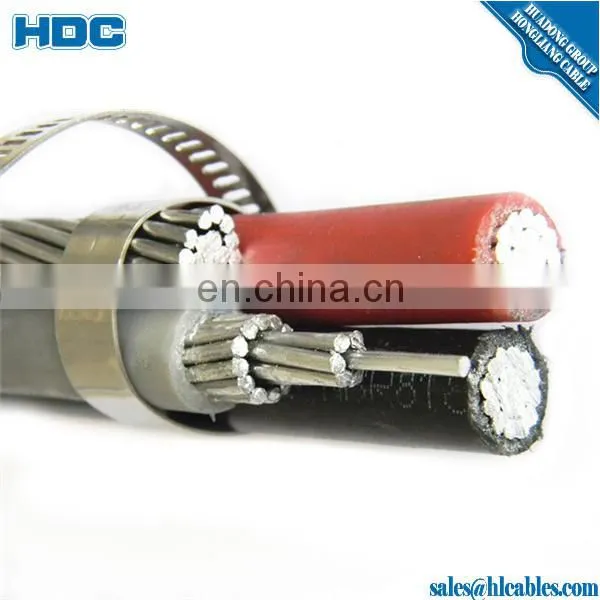

Item name: 11kv abc cable 3x25+54.6mm2 aluminum wire twisted Aerial cable.
Phase Conductor: Circular compacted stranded H68 aluminium to BS2627.
Conductor Screen :Extruded semi-conductive layer.
Insulation XLPE.
Insulation Screen: Extruded semi-conductive layer.
metallic Screen(optional): Copper wire screen or copper tape screen.
Separator Semi-conductive swellable tape.
Outer Sheath: HDPE.
Support Conductor: Galvanized steel wires.
Assembly: Three XLPE insulated screened cores are bundled around the galvanized steel wires in a right hand lay.
Description:
ABC Power Cable has an Aluminum Alloy conductor with a XLPE sheath.
ABC Power Cable usually has 3 cores plus neutral, the neutral can either be bare or insulated and the cable can have a street light of 25mm².
ABC Power Cable is available in 600/1000V, 635/11kV or 12,7/22kV. We stock 1 core, 2 core and 3 core Aluminum Alloy cable Aerial Bunched Kabel .
Construction:
1.Stranded Aluminum/Aluminum Alloy conductor
2.PE or XLPE insulation
3.ACSR, AAAC,Galvanized steel wire Messenger wire
3 power cores consisting of standard aluminum conductors, insulated with XLPE insulation
+ One sheath lighting aluminum conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor
Application 11kv abc cable 3x25+54.6mm2 aluminum wire twisted Aerial cable.
For single core PVC or XLPE insulated or covered aerial cable without messenger or neutral conductor,
the phase conductor may be AAC or AAAC or ACSR or Copper.
For more than one core PVC or XLPE insulated 11kv abc cable with or without messenger or
neutral conductor and with or without street lighting conductor, the phase conductor and street lighting conductor are AAC with PVC insulation,and the messenger or neutral conductor is AAAC or ACSR with or without PVC(XLPE) insulation.
Operating Characteristics of 11kv abc cable 3x25+54.6mm2 aluminum wire twisted Aerial cable.
Rated voltage: Up to and including 0.6/1(1.2)kV;
permissible continuous operating temperature of conductor: 90oC(XLPE insulated), 70 oC (PE insulated), 70 oC (PVC insulated); temperature of conductor during short-circuit ( 5s max. duration) shall not exceed: 250oC(XLPE insulated), 130 oC (PE insulated), 160 oC (PVC insulated); 11kv abc cable
The ambient temperature under installation should not be lower than: -20 oC.
Application of 11kv abc cable 3x25+54.6mm2 aluminum wire twisted Aerial cable.
PVC or XLPE insulated 11kv abc cable as a new-type aerial cable is used for overhead electric power transmission,
extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting.
11kv abc cable 3x25+54.6mm2 aluminum wire twisted Aerial cable.
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
B-231 Aluminum Conductors, Concentric-Lay-Stranded.
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
B-399 Concentric-Lay_Stranded 6201-T81 Aluminum Alloy Conductors.
B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
Duplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.
Packging is 11kv abc cable 3x25+54.6mm2 aluminum wire twisted Aerial cable.
1.Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement.
2.By standard wooden drum or roll.
3.Drum size:1100mm*1100mm*1100mm or as your request.
11kv abc cable 3x25+54.6mm2 aluminum wire twisted Aerial cable.
Advanced connectors & assembly cables machines and testing equipments.
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
11kv abc cable 3x25+54.6mm2 aluminum wire twisted Aerial cable Standard.
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.Meanwhile we can produce based on customers' requirements and specifications.
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
