Low voltage Cu/Al Core xlpe/pvc Insulated swa power cable
- 350000 Kilometer / Kilometers per Month
- Qingdao awg 10 solar cable 6mm2 australia asus thermal sensor cable
- T/T Credit Card
- electric power cable unarmoured vv 22 aluminum 2 core copper xlpe/swb/pvc armored aluminum cable
- Middle Voltage 3x240mm2 Cu XLPE/PVC Cable Directly Factory Price
- MV 10kv cable YJLY-23 3*70 al/xlpe/CWS/CTS/STA/PVC aluminum XLPE insulated with water blocking powder PVC PE sheath
- 33KV UG Cable 3Cores 240mm2 for Copper Conductor XLPE Insulation Power Cable
- CU / XLPE / SWA / PVC Armoured 3C x 95 mm2 4C x 35 mm2 Cable
- Medium Voltage Power Cable 1.9/3.3kV 3C 35 95 150 185mm2 Fine copper conductor XLPE insulation steel wire/tape armour PVC sheath
Product Details
Brand Name: | Huadong cable | Place of Origin: | Henan, China | Model Number: | power cable |
Type: | Low Voltage | Application: | Construction | Insulation Material: | XLPE |
Product Description

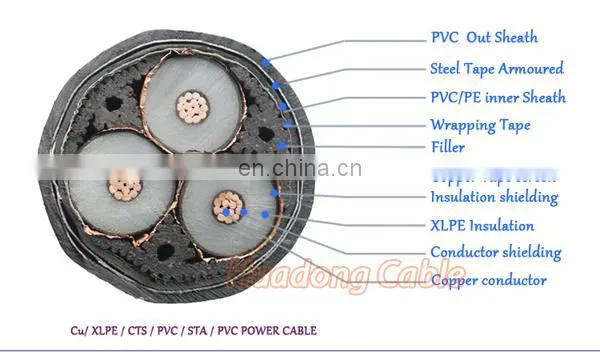

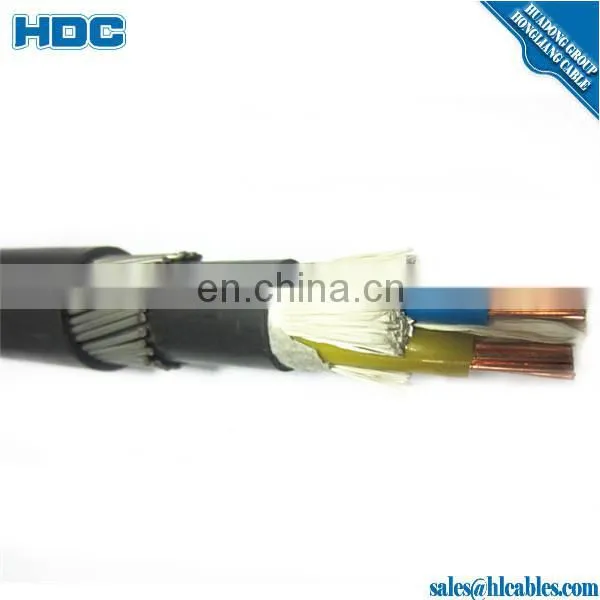

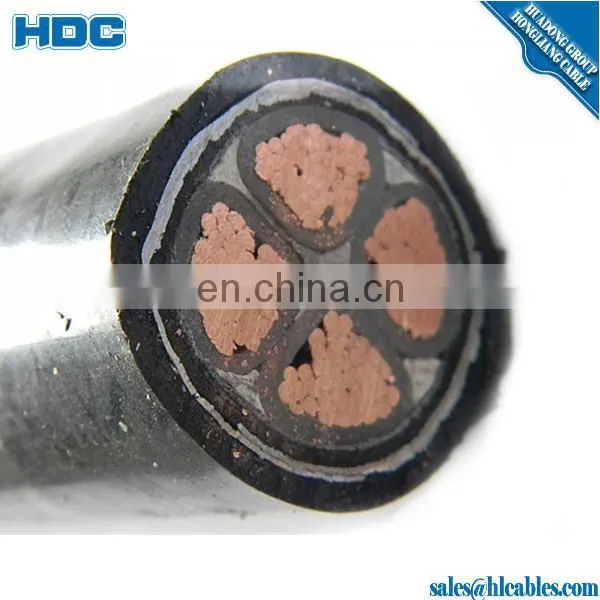

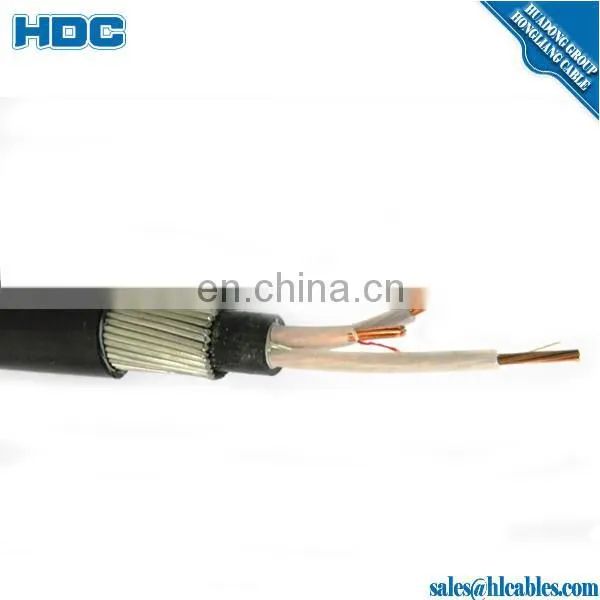

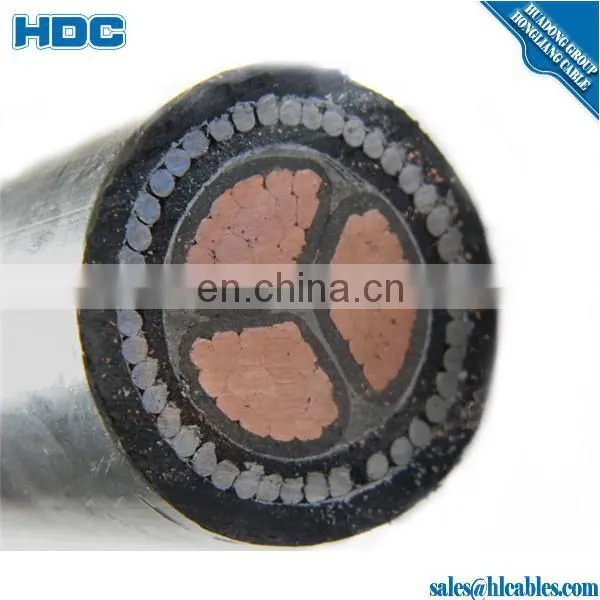

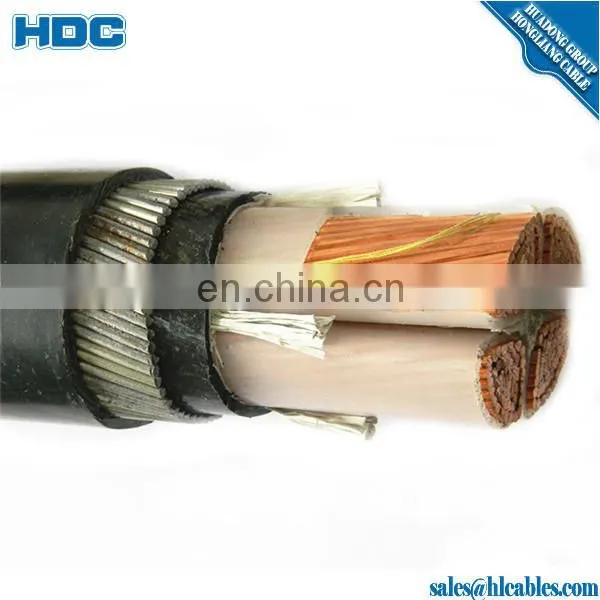

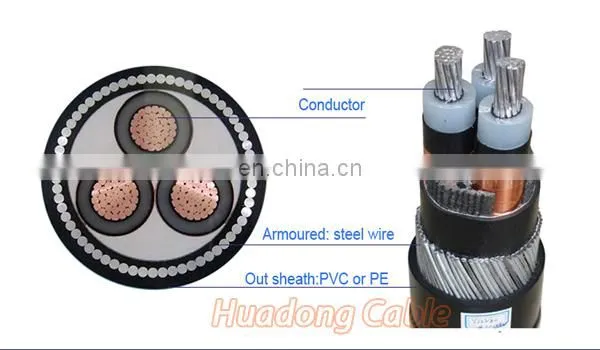

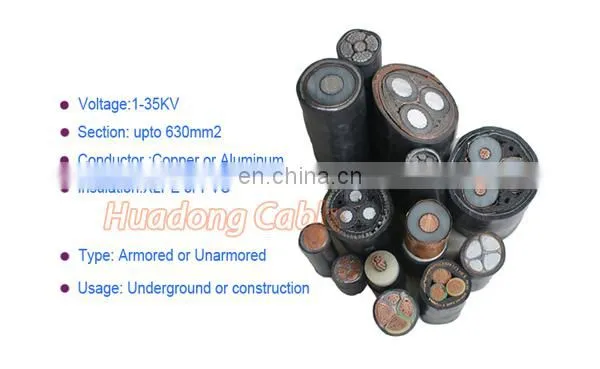

Low voltage Cu/Al Core xlpe/pvc Insulated swa power cable.
Item name: Low voltage Cu/Al Core xlpe/pvc Insulated swa power cable.
Low voltage power cable specification?
1. Uo/U: 450/750V, 0.6/1KV, 1.8/3KV, 3.6/6KV, 6/10KV, 8.7/15KV, 12/20KV, 18/30KV, 21/35KV, 26/35KV
2. Standard applied: IEC, GB, BS, VDE, AS/NZS or as per requirement
3. Working temperature: 70~125 °C
4. Conductor: solid or stranded pure annealed copper or aluminum
5. Insulation: XLPE or PVC or PE or LSZH
6. Cores: 1~5 cores, 3+1 cores, 3+2 cores, 4+1 cores for low voltage, 1 core or 3 cores for MV power cable
7. Cross section area: 1.0~630 sqmm for single core, 1.0~300 sqmm for multicores
8. Armoure: armore type is optional, SWA (steel wire armored) or STA (steel tape armored) for multicores, AWA (aluminum wire armored) or ATA (aluminum tape armored) for single core
9. Sheath: PVC or PE or Low smoking and halogen free compounding, etc.
10. Color: black or as per requirement
11. Flame retardant or Fire resistance or Low smoking and halogen free or other properties can be available
12. Wooden drum package or as per request
13. OEM can be available
14. BDK cables have very good sales over the world, enjoying a very good reputation based on top quality and most competitive price and 5-star service.
Type | Name
| Application | |
Cu Conductor | Al Conductor | ||
YJV YJY | YJLV YJLV | XLPE Insulated,PVC or PE S heathed Power Cable | For laying in door,tunnel,channel and underground.Unable to bear external mechanical force,but bear the traction force during laid. |
YJV22 YJV23 | YJLV22 YJLV23 | XLPE Insulated,Steel Tape Armoured,PVC or PE Sheathed Power Cable | For laying in tunels in door,tunnel,channel and underground.Able to bear external mechanical force,but unable to bear large pulling force. |
YJV32 YJV33 | YJLV32 YJLV33 | XLPE Insulated,Fine Steel Wire Armoured,PVC or PE Sheathed Power Cable | For laying in shaft with large difference of level.Able to bear external mechanical force,and moderable pulling force. |
YJV42 YJV43 | YJLV42 YJLV43 | XLPE Insulate,Thick Steel Wire Armoured,PVC or PE Sheathed Power Cable | Able to bear positive pressure and pulling force |
| 1st class | 0.6/1 | 1.8/3 | 3.6/6 | 6/10 | 8.7/15 | 12/20 | 18/30 | 21/35 | |||
2nd class | 1/1 | 3/3 | 6/6 | 8.7/10 | 12/15 | 18/20 | - | 26/35 | ||||
1 Core | Section area(mm2) | 1.5-800 | 25-800 | 25-800 | 25-800 | 35-800 | 50-800 | 50-800 | 50-800 | |||
2 Core | Section Area(mm2) | 1.5-185 | / | / | / | / | / | / | / | |||
3 Core | Section area(mm2) | 1.5-400 | 25-400 | 25-400 | 25-400 | 35-400 | 50-400 | 50-400 | 50-400 | |||
4 Core | Section Area(mm2) | 2.5-400 | 25-400 | / | / | / | / | / | / | |||
5 Core | Section area(mm2) | 2.5-400 | 25-400 | / | / | / | / | / | / |
Low voltage Cu/Al Core xlpe/pvc Insulated swa power cable.
1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement
2.By standard wooden drum or roll.
3.Drum size:1100mm*1100mm*1100mm.
or as your request.
Low voltage Cu/Al Core xlpe/pvc Insulated swa power cable.
Advanced connectors & assembly cables machines and testing equipments.
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production,
research & development,and domestic& international trade.
Established year: 1988
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km
Low voltage Cu/Al Core xlpe/pvc Insulated swa power cable Standard:
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.
Meanwhile we can produce based on customers' requirements and specifications.
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
