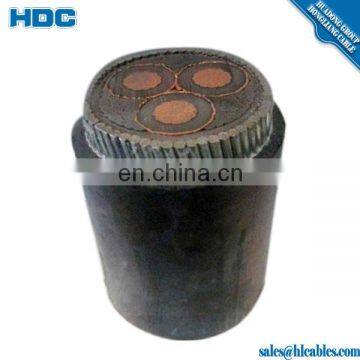

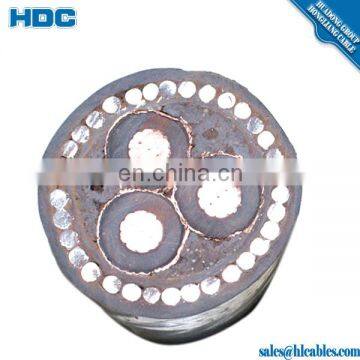

CU / XLPE / SWA / PVC Armoured 3C x 95 mm2 4C x 35 mm2 Cable
- 350000 Kilometer / Kilometers per Month
- Qingdao/Tianjin/Shanghai/Ningbo/Guangzhou for Armoured 3C x 95 mm2
- T/T Credit Card
- Medium Voltage Power Cable 1.9/3.3kV 3C 35 95 150 185mm2 Fine copper conductor XLPE insulation steel wire/tape armour PVC sheath
- 35mm 50mm 95mm 120mm 150mm 185mm 240mm XLPE SWA PVC power cable Armoured 4 Core Power Cable
- Mine Power submarine cable XLPE/RUBBER marine cable specification submarine power cable Factory price
- 4 core copper wire 45mm 150mm 170mm 250mm and 300mm electric power cable copper cable
- 6/10KV 26/35KV Medium Voltage Cable Cu/XLPE/SWA/PVC XLPE Insulated High Tension XLPE Cable 300mm2, 400mm2, 500mm2, 630mm2
- electric submersible pump cable double steel taped armored power cable
Product Details
Brand Name: | Huadong for Armoured 3C x 95 mm2 | Place of Origin: | Henan, China | Model Number: | YJV32 |
Application: | Construction | Insulation Material: | XLPE | ||
Jacket: | PVC |
Product Description
CU / XLPE / SWA / PVC Armoured 3C x 95 mm2 4C x 35 mm2 Cable :
Item name:CU / XLPE / SWA / PVC Armoured 3C x 95 mm2 4C x 35 mm2 Cable
Type | Name
| Application | |
Cu Conductor | Al Conductor | ||
YJV YJY | YJLV YJLV | XLPE Insulated,PVC or PE S heathed Power Cable | For laying in door,tunnel,channel and underground.Unable to bear external mechanical force,but bear the traction force during laid. |
YJV22 YJV23 | YJLV22 YJLV23 | XLPE Insulated,Steel Tape Armoured,PVC or PE Sheathed Power Cable | For laying in tunels in door,tunnel,channel and underground.Able to bear external mechanical force,but unable to bear large pulling force. |
YJV32 YJV33 | YJLV32 YJLV33 | XLPE Insulated,Fine Steel Wire Armoured,PVC or PE Sheathed Power Cable | For laying in shaft with large difference of level.Able to bear external mechanical force,and moderable pulling force. |
YJV42 YJV43 | YJLV42 YJLV43 | XLPE Insulate,Thick Steel Wire Armoured,PVC or PE Sheathed Power Cable | Able to bear positive pressure and pulling force |
| 1st class | 0.6/1 | 1.8/3 | 3.6/6 | 6/10 | 8.7/15 | 12/20 | 18/30 | 21/35 | |||
2nd class | 1/1 | 3/3 | 6/6 | 8.7/10 | 12/15 | 18/20 | - | 26/35 | ||||
1 Core | Section area(mm2) | 1.5-800 | 25-800 | 25-800 | 25-800 | 35-800 | 50-800 | 50-800 | 50-800 | |||
2 Core | Section Area(mm2) | 1.5-185 | / | / | / | / | / | / | / | |||
3 Core | Section area(mm2) | 1.5-400 | 25-400 | 25-400 | 25-400 | 35-400 | 50-400 | 50-400 | 50-400 | |||
4 Core | Section Area(mm2) | 2.5-400 | 25-400 | / | / | / | / | / | / | |||
5 Core | Section area(mm2) | 2.5-400 | 25-400 | / | / | / | / | / | / |
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,
and domestic& international trade.
Established year: 1988
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km
Standard:
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.
Meanwhile we can produce based on customers' requirements and specifications.
Certificate:
The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical
Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformation
of Urban and Rural Power Grid Construction.
Frequently Asked Question
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
