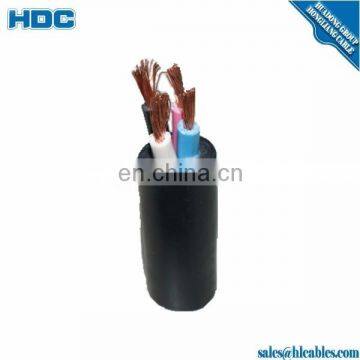

BS EN 60502 Standard RVK Superflex Electric Cable 3 Core 35mm2 Class 5 Flexible Copper Conductor XLPE Insulation PVC Sheath

 BS EN 60502 Standard RVK Superflex electric cable 3 core 35mm2 class 5 flexible copper conductor XLPE insulation PVC sheath

 CHARACTERISTICS
Voltage Rating (Uo/U)
600/1000V
Temperature Rating
Fixed: -15°C to +90°C
Minimum Bending Radius
Fixed: 5 x overall diameter
Core Identification
1 core: Black
2 core: Blue Brown
3 core including earth: Blue Brown Green/Yellow
3 core: Brown Black Grey
4 core including earth: Brown Black Grey
Green/Yellow
4 core: Brown Black Grey Blue
5 core including earth core: Brown Black Grey
Green/Yellow Blue
Sheath Colour

Established year: 1988

Total asset: USD 32 million

Plant area: 30000 m2

Number of staff: 380

Engineer:20

Laboratory Inspector: 18

Production line: 18

Testing machine:25

Producing capacity each year: 320000 km

Rigid copper conductor XLPE insulation 6x2.5mm2 PVC sheath power cable colored phase cable low voltage

Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on. Meanwhile we  can produce based on customers' requirements and specifications.

Rigid copper conductor XLPE insulation 6x2.5mm2 PVC sheath power cable colored phase cable low voltage Certificate:

The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical Product Safety  Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformation of Urban and Rural Power Grid Construction.

  Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.

2.what is the lead time ?

  The lead time usually is 10 - 30 working days.

3.what is the package of the cable ?

  The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.

4.Could we provide the free sample for customer ?

  Sure, we provide the free sample for customer to checking.
