0.6/1KV NFR-8 NFR-3 power cable heat resistant solid/strand cu XLPE insulation polyefin sheath flame retardant

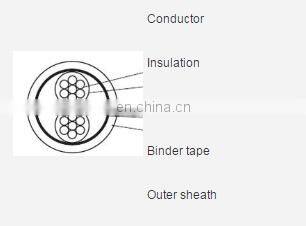

CONSTRUCTION
1. Conductor: Solid conductor (Class 1), Annealed copper stranded conductor, Class 2
2. Insulation: Cross-linked polyethylene (XLPE), Max operating temperature: 90°C.
3. Unit: Cabling circularly insulated solid conductor in case of more 2 cores
4. Outer sheath: Black low-toxic and flame retardant polyefin
COLORS
2 cores: White, Black
3 cores: White, Black, Red
4 cores: White, Black, Red, Green
more 5 cores: Numbering on black or red colored core. The other are white.
| CONSTRUCTION CHARACTERISTICS | |
|---|---|
| Insulation | XLPE |
| Outer sheath | HFFR (polyolefin) |
| ELECTRICAL CHARACTERISTICS | |
| Test voltage | 3500V |
| Rated Voltage Uo/U (Um) | 0.6/1 kV |
| MECHANICAL CHARACTERISTICS | |
| Corrosivity | IEC 60754-2 |
| USAGE CHARACTERISTICS | |
| Operating temperature, range | -15 .. 90°C |
| Flame retardant | KSC IEC 60332-3 |
| Smoke density | ASTME 662 |
| Gases toxicity | No toxicity to IEC 60754-1 |
| Bending factor when installed | 12(xD)
|
0.6/1KV NFR-8 NFR-3 power cable heat resistant solid/strand cu XLPE insulation polyefin sheath flame retardant
1. wooden drum, Iron wooden drum or as your request
2. the long & wide & high of 20 size container:5.95*2.32*2.3 meter.
3. the long & wide & high of 40 size container:11.9*2.32*2.72.
0.6/1KV NFR-8 NFR-3 power cable heat resistant solid/strand cu XLPE insulation polyefin sheath flame retardant
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production,
research & development,and domestic& international trade.
Established year: 1988
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km
0.6/1KV NFR-8 NFR-3 power cable heat resistant solid/strand cu XLPE insulation polyefin sheath flame retardant
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on. Meanwhile we can produce based on customers' requirements and specifications.
0.6/1KV NFR-8 NFR-3 power cable heat resistant solid/strand cu XLPE insulation polyefin sheath flame retardant certification.
The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformation of Urban and Rural Power Grid Construction.
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
