Acrel ADL10-E Din Rail Single Phase Kwh Meter With 485 Modbus

Acrel ADL10-E Din Rail Single Phase Kwh Meter With 485 Modbus thumbnail-1
Acrel ADL10-E Din Rail Single Phase Kwh Meter With 485 Modbus thumbnail-2
Acrel ADL10-E Din Rail Single Phase Kwh Meter With 485 Modbus thumbnail-3
Acrel ADL10-E Din Rail Single Phase Kwh Meter With 485 Modbus thumbnail-4
Acrel ADL10-E Din Rail Single Phase Kwh Meter With 485 Modbus thumbnail-5
Acrel ADL10-E Din Rail Single Phase Kwh Meter With 485 Modbus photo-1
Acrel ADL10-E Din Rail Single Phase Kwh Meter With 485 Modbus photo-2
Acrel ADL10-E Din Rail Single Phase Kwh Meter With 485 Modbus photo-3
Acrel ADL10-E Din Rail Single Phase Kwh Meter With 485 Modbus photo-4

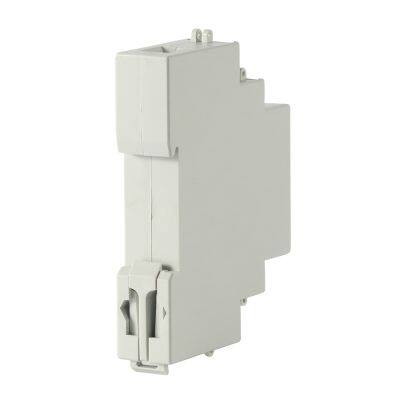

Acrel ADL10-E Din Rail Single Phase Kwh Meter With 485 Modbus photo-5
US$ 17.5 - 17.6 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
ADL10-E
Contact Supplier Request Quote Chat Now
Jiangsu Acrel Electrical Manufacturing CO.,LTD
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Acrel
Place of Origin China
Model Number ADL10-E
Phase Single Phase
Output Voltage 220V
Operating Temperature -25℃~55℃
Dimensions 18mm*96 mm*70mm
Display Type Other, LCD
Accuracy Class Class 1.0
Measuring Energy Range 000000.00~999999.99kWh

Technical Parameters


Voltage
Reference voltage
AC 220V
Reference frequency
45-65 Hz
Consumption
<10VA( Single phase)
Current
Maximum
60A
Starting current
0.004 Ib
Consumption
<4VA(Maximum current)
Measurement performance
Accuracy of active kWH
Class 1
Standards complicant
IEC 62053-21:2003
Pulse
Pulse width
80+20 ms
Pulse constant
3200 imp/kWH
Communication
Interface
RS485
Protocol
Modbus-RTU
Outling
L*W*H(mm)
18*88*70
Environment
Temperature
Operating:-25℃~55℃；Storage:-40℃~70℃
Humidity
≦95% (No condensation)
Altitude
<2000m


Product Tags: single phase energy meter , din rail energy meter , AC single phase energy meter , single phase power meter
