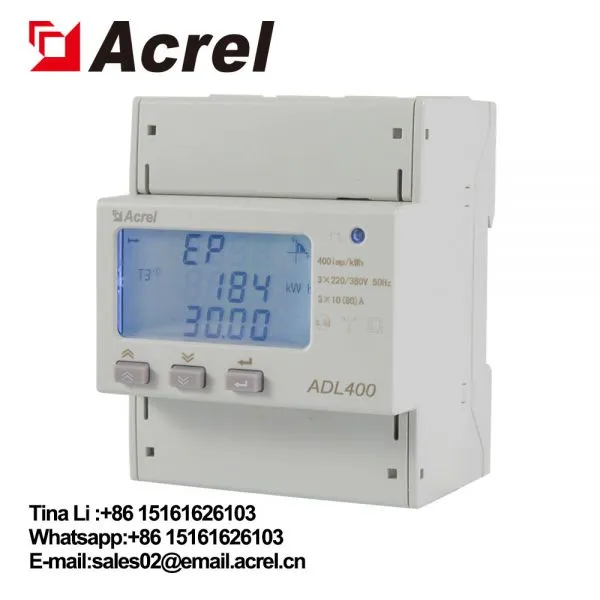

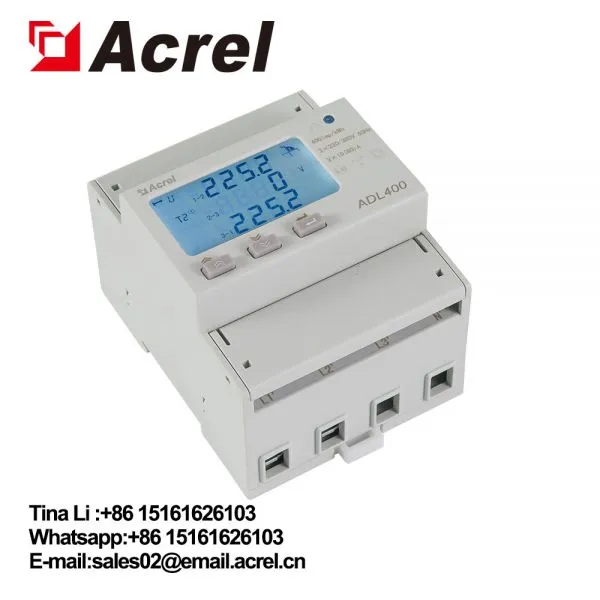

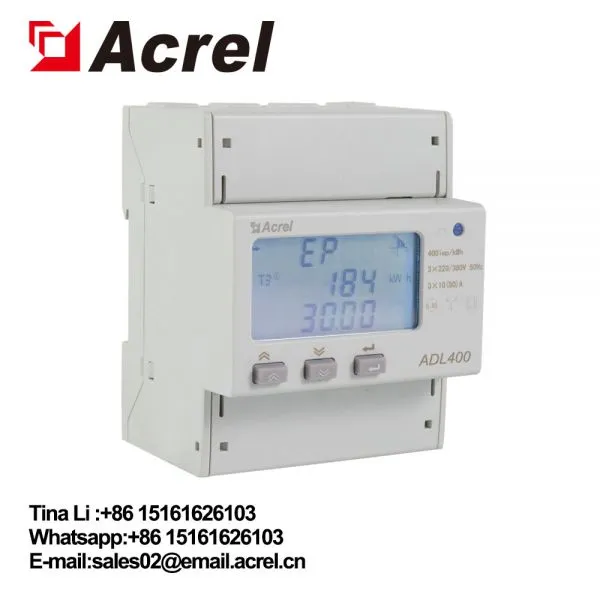

ADL400 is a smart meter designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features the high precision, small size and simple installation. It integrates the measurement of all electrical parameters with the comprehensive electricity metering and management provides various data on previous 48 months, checks the 31st harmonic content and the total harmonic content, realizes the remote communication and the remote control with switching input and relay output and boasts the alarm output. It is fitted with RS485 communication port and adapted to MODBUS-RTU .ADL400 can be used in all kinds of control systems, SCADA systems and energy management systems. The meter meet the related technical requirements of electronic meter in the IEC62053-21standards.
Product Functions
Function |
Function description |
Function provide |
Measurement of kWh |
Active kWh (positive and negative) |
■ |
Reactive kWh (positive and negative) |
■ |
|
A, B and C are phase positive active electric energy |
■ |
|
Measurement of electrical parameters |
U、I |
■ |
P、Q、S、PF、F |
■ |
|
Measurement of harmonics |
2~31ST Voltage and current harmonic |
□ |
LCD Display |
12 bits section LCD display, background light |
■ |
Key programming |
3 keys to communication and set parameters |
■ |
Pulse output |
Active pulse output |
■ |
Multi-tariff and functions |
Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates |
□ |
Max demanded kWh and time happened |
□ |
|
Frozen data on last 48 months, last 90days |
□ |
|
Date, time |
□ |
|
Communication |
Communication interface: RS485, Communication protocol: MODBUS-RTU |
■ |
Technical Parameters
Specification |
Parameter |
||
Wire |
3 phase 3 wires, 3 phase 4 wires |
||
Measurement |
Voltage |
Reference voltage |
3×100V、 3×380V、3×57.7/100V、 3×220/380V |
Consumption |
10VA(Single phase) |
||
Impedance |
>2MΩ |
||
Accuracy class |
Error±0.2% |
||
Current |
Input current |
3×1(6)A， 3×10(80)A |
|
Consumption |
1VA(Single phase rated current) |
||
Accuracy class |
Error±0.2% |
||
Power |
Active, reactive, apparent power, error±0.5℅ |
||
Frequency |
45～65Hz，Error±0.2% |
||
|
Measurement
|
Energy |
Active energy(Accuracy class:0.5, 1) reactive energy(Accuracy class 2) |
|
Clock |
≤0.5s/d |
||
Digit signal |
Energy pulse output |
1 active photocoupler output |
|
pulse |
Width of pulse |
80±20ms |
|
Pulse constant |
1000imp/kWh,10000imp/kWh(Correspond with the basic current) |
||
communication |
Interface and communication |
RS485：Modbus RTU |
|
Range of communication address |
Modbus RTU:1- 247； |
||
Baud rate |
1200bps-19200bps |
||
environment |
Relative temperature |
-25℃to+55℃ |
|
Relative humidity |
less than 95℅(No condensation) |
||

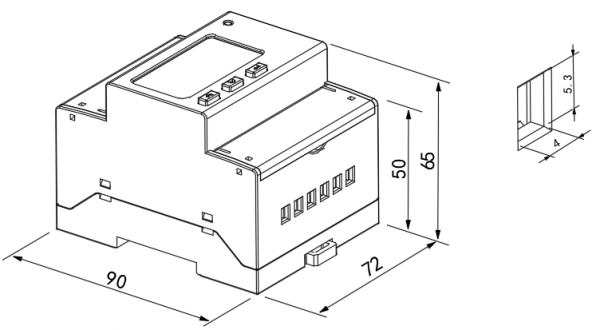

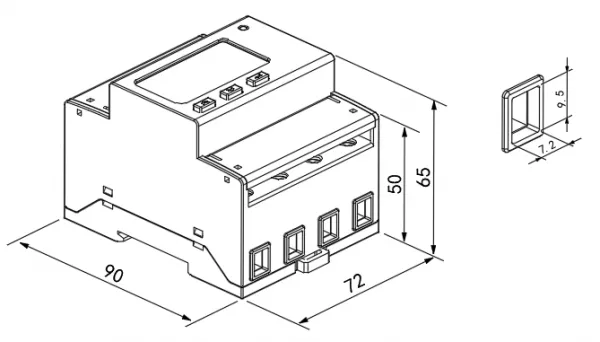

Dimension Drawing(Unit:mm)
derect connect
Access by CT
