Product Introduction
ADL10-E single phase electric meter is designed for single phase energy measurement on low voltage system.The meter meet the related technical requirements of electronic meter in the IEC62053-21 > IEC62053-22 standards.
Product Functions
Function |
Description |
Provide |
Measurement of kWh |
Single-phase active energy (positive and negative) |
■ |
Measurement of electrical parameters |
U、I、P、Q、S、PF、Hz |
■ |
LCD Display |
8 digits |
■ |
Communication |
RS485, MODBUS-RTU |
□C |
Technical Parameters
l Electric performance
Voltage |
Reference voltage |
220V |
Reference frequency |
50Hz |
|
Consumption |
||
Current |
Maximum current |
60A |
Starting current |
0.004lb |
|
Consumption |
||
Measurement performance |
Standards compliant |
IEC 62053-21:2003 |
Accuracy of Active kWh |
Class 1.0 |
l Working Environment
Temperature |
Operating |
-25℃~55℃ |
Storage |
-40℃~70℃ |
|
Humidity |
||
Altitude |
||

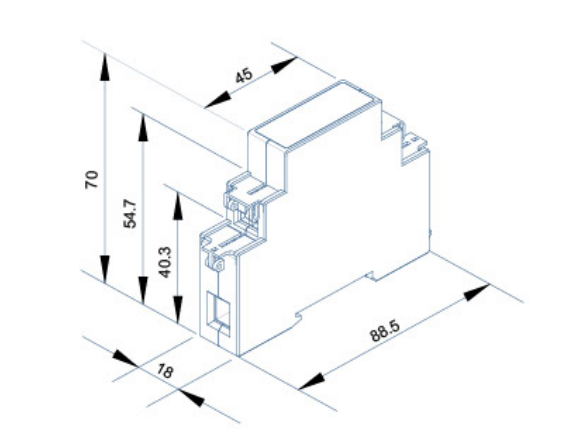

Dimension Drawing(Unit:mm)
Wiring
Certificate
