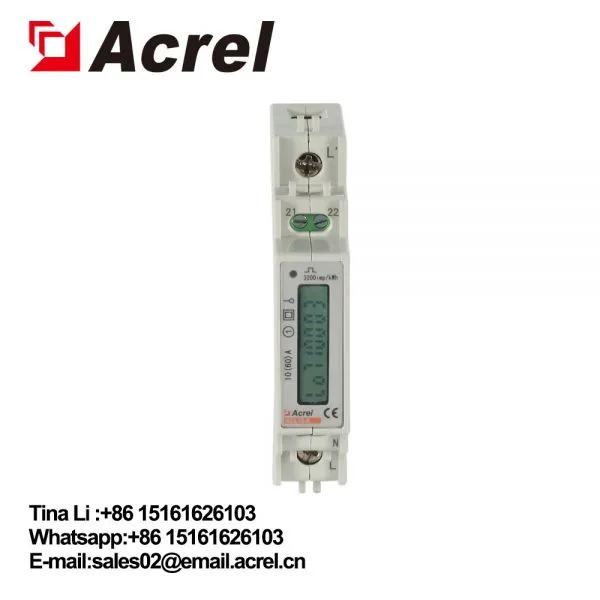

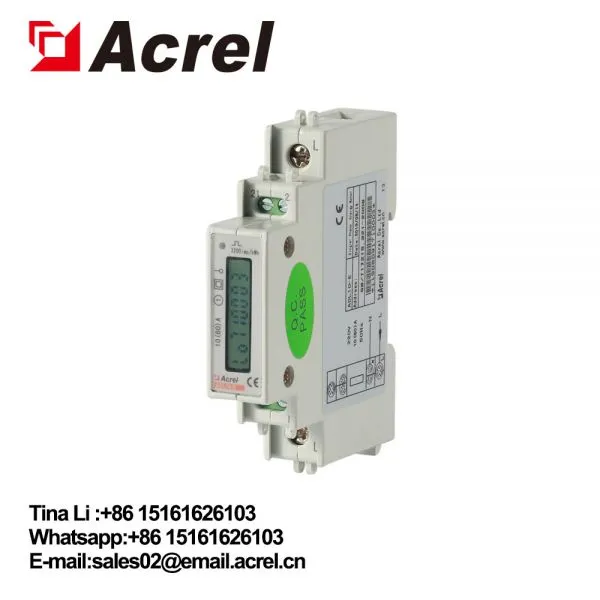

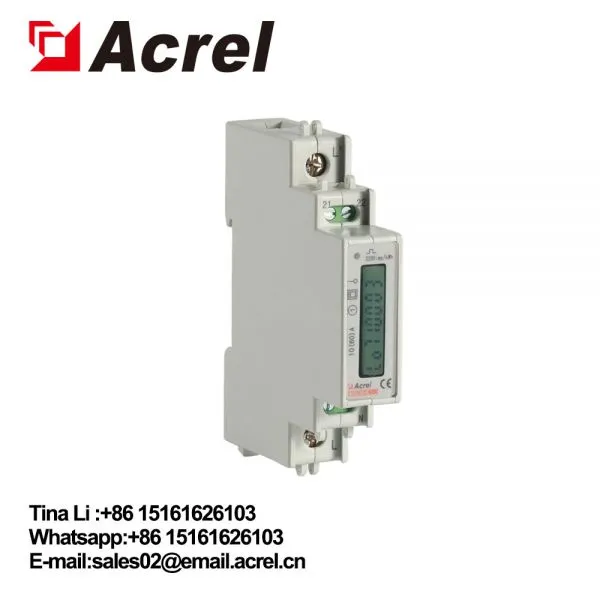

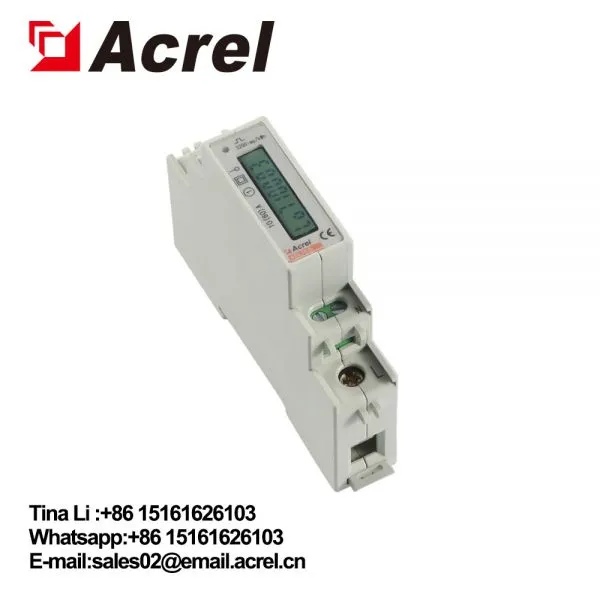

Acrel AC din rail single phase electricity meter with 485 Modbus
- 10000 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 7 days
- Acrel ADL10-E din rail single phase digital energy meter 60A
- Acrel ADL10-E AC solar electricity energy meter for solar system/kwh meter single phase digital
- Acrel ADL10-E single phase digital electricity energy meter for solar system/AC solar power meter
- Acrel ADL10-E single total active energy measure digital din-rail electricity energy meter for solar system
- Acrel Medical Isolation Power System-four pieces set
- Acrel ADL400 three phase energy measure digital din-rail electricity energy meter
Product Details
Brand Name: | Acrel | Place of Origin: | China | Model Number: | ADL10-E |
Phase: | Single Phase | Output Voltage: | 220V | Operating Temperature: | -25℃~55℃ |
Dimensions: | 18mm*96 mm*70mm | Display Type: | Other, LCD | Accuracy Class: | Class 1.0 |
Measuring Energy Range: | 000000.00~999999.99kWh |
Packaging Details
It is packed in a crash bag and then put into a cardboard box.
Product Description
1P Single phase energy meter
Technical consulting: Tina Li
Tel/Whatsapp:+86 15161626103
Email:sales02@email.acrel.cn
Data download
Product Introduction
ADL10-E single phase electric meter is designed for single phase energy measurement on low voltage system.The meter meet the related technical requirements of electronic meter in the IEC62053-21 > IEC62053-22 standards.
Product Functions
Function | Description | Provide |
Measurement of kWh | Single-phase active energy (positive and negative) | ■ |
Measurement of electrical parameters | U、I、P、Q、S、PF、Hz | ■ |
LCD Display | 8 digits | ■ |
Communication | RS485, MODBUS-RTU | □C |
Technical Parameters
l Electric performance
Voltage | Reference voltage | 220V |
Reference frequency | 50Hz | |
Consumption | <10VA (Single phase) | |
Current | Maximum current | 60A |
Starting current | 0.004lb | |
Consumption | <4VA (Maximum current) | |
Measurement performance | Standards compliant | IEC 62053-21:2003 |
Accuracy of Active kWh | Class 1.0 |
l Working Environment
Temperature | Operating | -25℃~55℃ |
Storage | -40℃~70℃ | |
Humidity | <95%(No condensation) | |
Altitude | <2000m |
Dimension Drawing(Unit:mm)
Wiring
Certificate
Customers
Company Profile
Acrel Co.,Ltd.[Stock Code:300286.SZ] is a professional company in china who provides various systematic solutions of power monitoring,energy management and electrical safety for smart grid users.
Since June 2003,we have always been focused on the research,production and sales of intelligent electric meters.We concentrate on providing products and services to help customers improve electricity efficiency and safety.So far we have had the following comprehensive solutions for different applications:35(10)/0.4KV substation antomation system,power quality management system for medical location,precise distribution management system,smart lighting control system,remote orepayment metering system and motor control center.
Jiangsu Acrel Electrical Manufacturing Co.,LTD,our production base in Jiangyin City,Wuxi,provides guarantee for the industrialization and large-scare implementation of products.The annual production capacity of various meters is 2 million units,and more than 1.3 million units are sold in 2018.
Since the listing in 2012,our company has maintained steady growth.The company will adhere to the concept of“innovation,efficiency,unity,integrity”,adhere to steady operation and continuous innovation,and provide more high-quality products,services and silutions for power system users and micro-grid.
