mini tractors with front end loader
Briggs&Strattong gasoline engine 23HP
quick hithc plate,multi-using
970mm width can enter into narrow space
ride on operate,comfortable
CE GOST

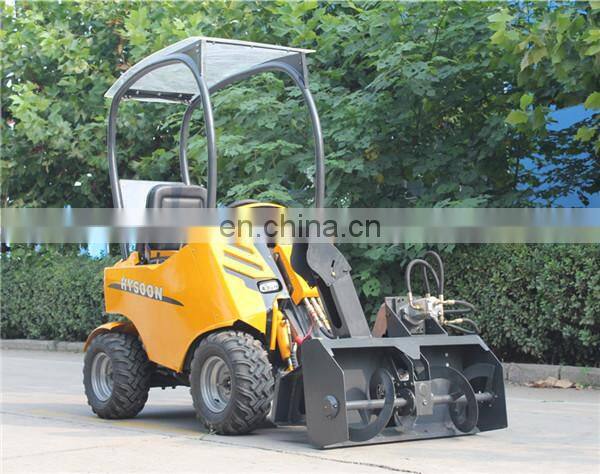

many loader attachment can be used together,such as digger,auger,sweeper,snow blower,lawn mower,tiller,trencher,breaker

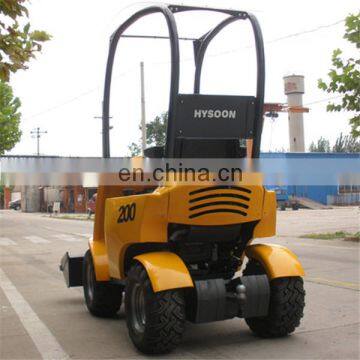

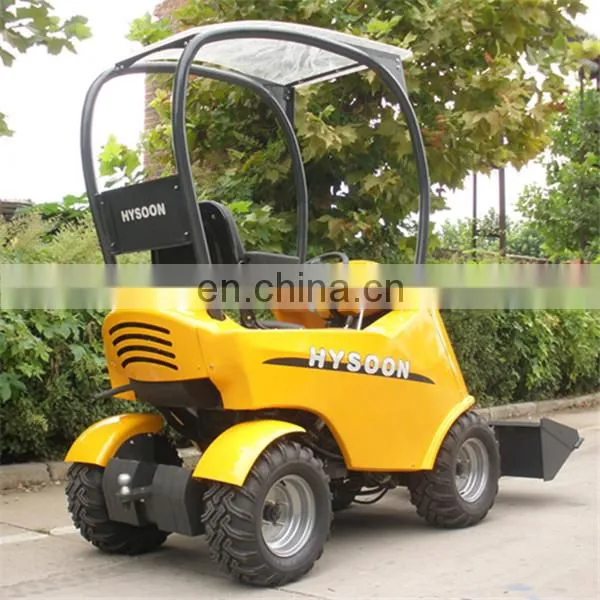

The China mini tractors with front end loader is a multifunction compact loader,can enter into narrow space for different working.
It have quick hitch plate,can use with the loader attachment,such as bucket, backhoe, hydraulic breaker, pallet forks, angle broom, sweeper, auger,lawn mower, snow blower, stump grinder, tree spade, trencher, dumping hopper, ripper, tillers, grapple , tilt, roller, snow blade.
The China mini tractors with front end loader with different loader attachment can be used on Land sorting, Garden, Snow removal, Mining, Landscaping, Construction, Dairy industry, Farm, Livestock farm ,Waste(animal waste, municipal solid waste, life garbage) removal,ditching, truck loading ,tree planting and so on.
Basic Data for the mini tractors with front end loader
| Engine Brand | Briggs&Stratton |
| Fuel | Gasoline |
| Rated Power | 17.21Kw (23HP) |
| Fuel Volume | 22L |
| Hydraulic oil volume | 21L |
| Operate Weight | 840kg |
| Load capacity | 260kg |
| Bucket capacity | 0.15cbm |
| Max lifting force | 460kg |
| Speed | 0-8km/h |
| Min Turning Radius | 2320mm |
| Tyre | 21*8.00-10TR |
Dimensions for the mini tractors with front end loader
| Max Pin Height (B) | 1767mm |
| Max Dumpe Height (C) | 1314mm |
| Dump distance at highest point (D) | 443mm |
| Total Height (H) | 2020mm |
| Ground Clearance (F) | 200mm |
| Wheelbase (G) | 1207mm |
| Length without bucket (J) | 1870mm |
| Total Width (W) | 970mm |
| Bucket Width (K) | 1150mm |
| Total Length(with bucket) (L) | 2255mm |
| Departure Angle | 40degree |
| Bucket dump angle | 37degree |
| Bucket Collection angle | 28degree |

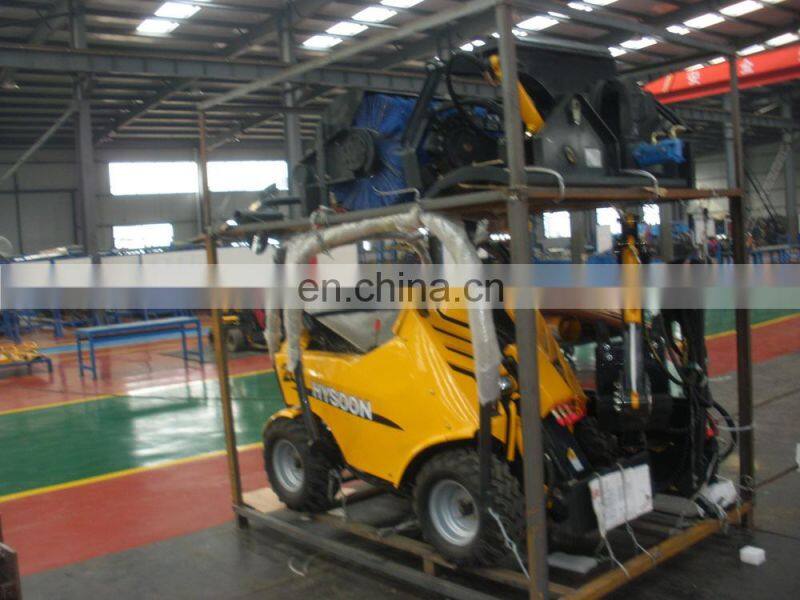

sample mini mini tractors with front end loader will be better delivery by LCL container,packing by steel pallet with plywood cover

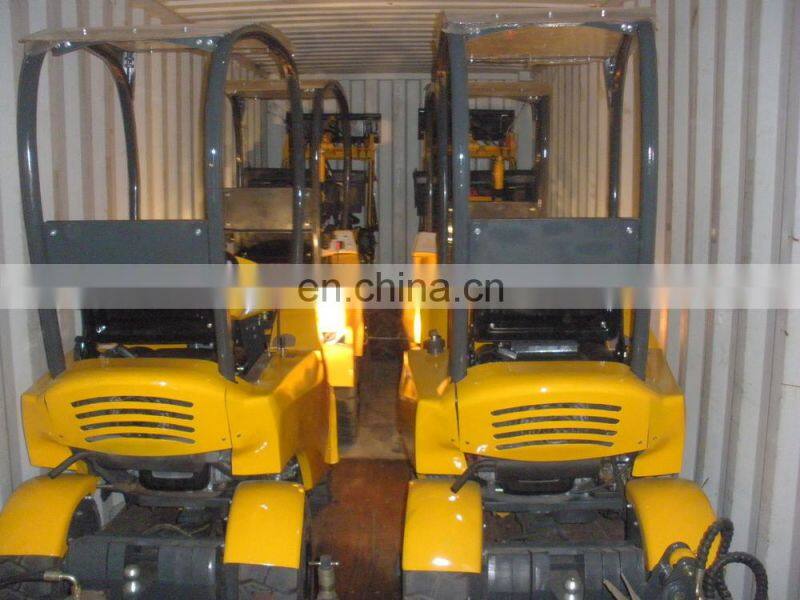

quantity mini tractors with front end loader will be better delivery by FLC container,no packing,loaded into container directly and fastened well.
Sample order available
Customize available
Quickly respond about after-sale service
TAIAN HYSOON MACHINERY CO.,LTD is the original manufacturer of the mini skid steer loader in China.We focus on research and manufacture the small and medium-sized construction machinery.We currently have 4 series in manufacture,more than 10 kinds of products.Including Mini Loaders,Skid Steer Loaders,Dumpers,Tracked Carrier.Most of them have gotC E and GOST Certification,
and exported world-wide,for example Germany,Sweden,Australia, America.
And there is more than 30 kinds of attachments for loaders,such as Sweeper,Digger,Hydraulic Breaker,Fork,Lawn Mower,Trencher, to suit any different work requirement.
TAIAN HYSOON MACHINERY CO.,LTD concentrates on supplying solution for small and middle construction projects,researching and developing high quality products according to customers’ requirements,creating more value for customers.Looking forward to cooperate with you,achieving Win-Win situation.
Welcome to HYSOON!
1. We are manufacture or trade company?
We are real manufacture of the mini tractors with front end loader ,
and are always engaged in mini&medium construction machine.
2.Min order quantity?
Sample order available,1set acceptable
3.OEM acceptable?
Yes.
And please let me know your requirement,
we will make the special mini tractors with front end loader for you
4.Warranty Terms?
1 year for the machine,hydraulic parts 6 months.
