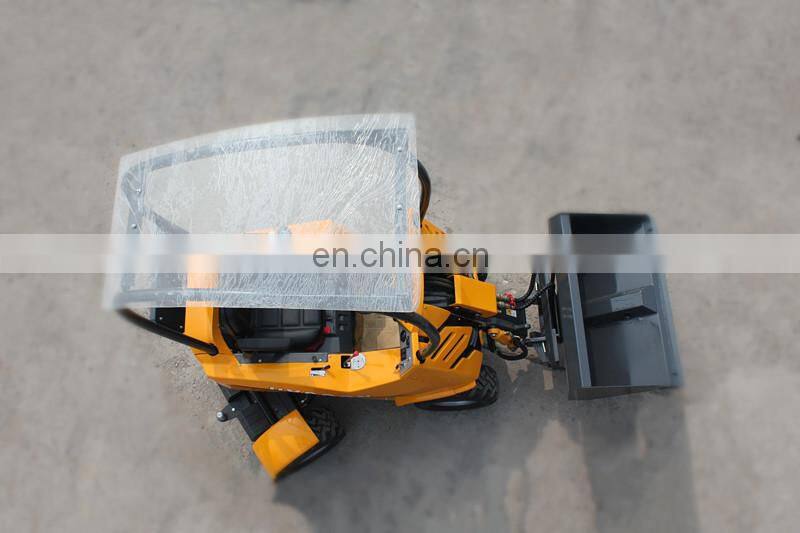

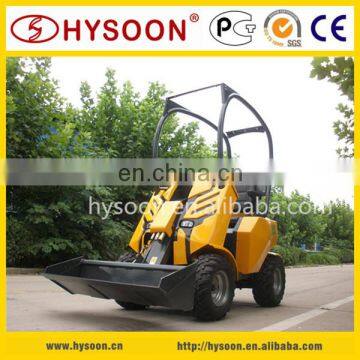

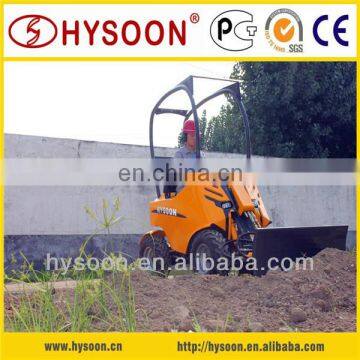

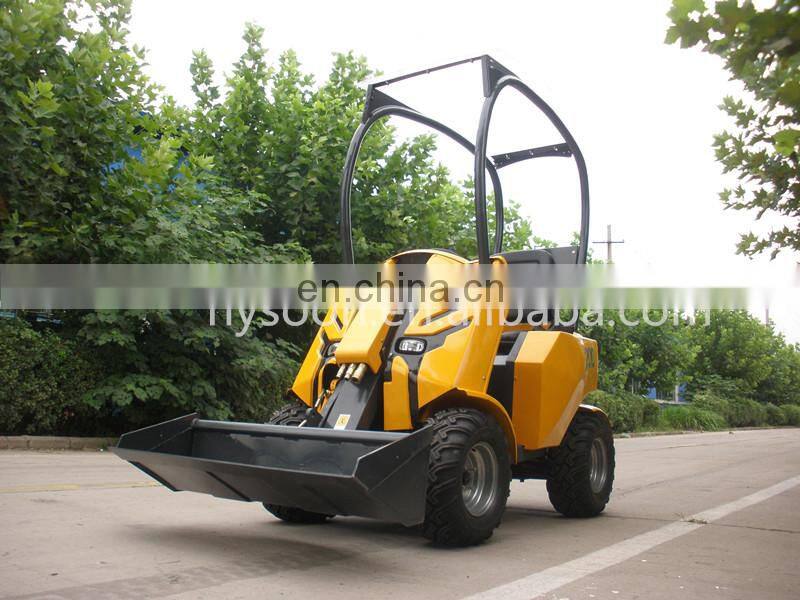

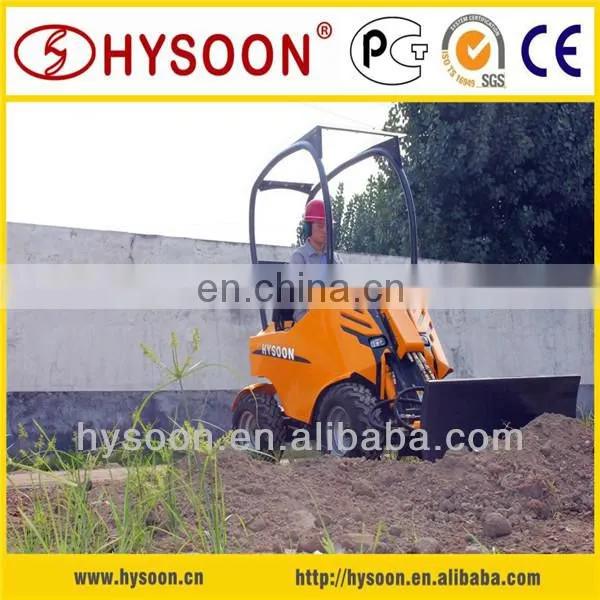

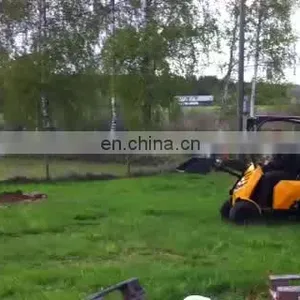

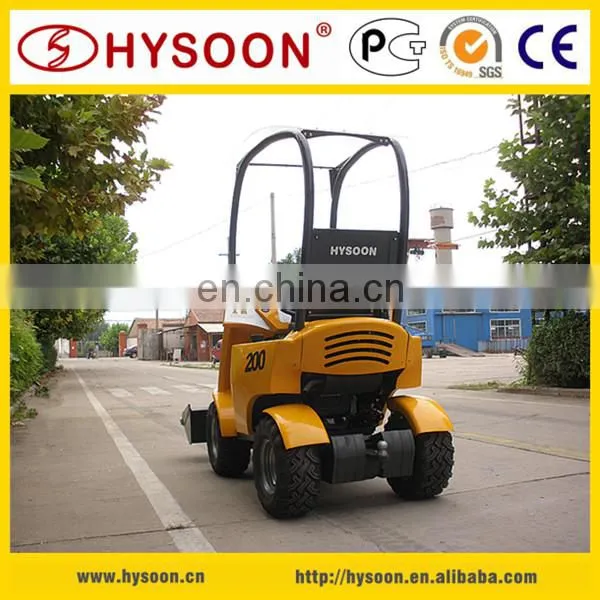

HY200 articulated mini loader like avant for sale
• American Briggs& Stratton Engine, 23HP
• Imported Italy Piston Pump
• Italy Multi-way Valve
• Articulated Steering Chassis, hydrostatic transmission
• Two pedals operating way, driving safety and easily.
• Ergonomically designed, operation comfortably and safety.
• Compact dimension can operation in narrow spaces.
• Operating weight: 840kg. Operating load: 260kg
• Dimension(mm): 2424* 970* 2020

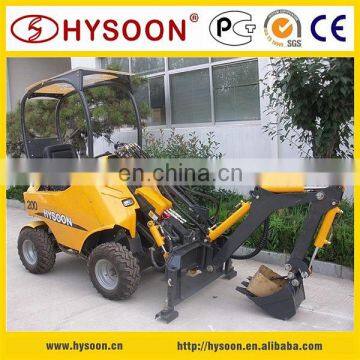

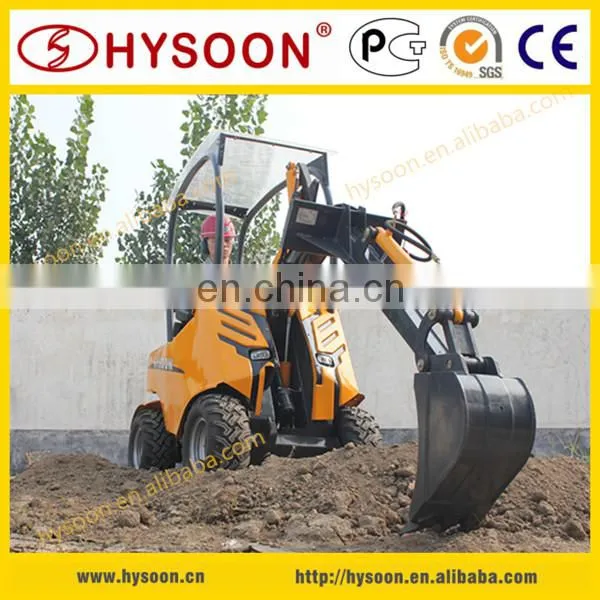

• HY200 small wheel loader can with different attachments for various working needs.

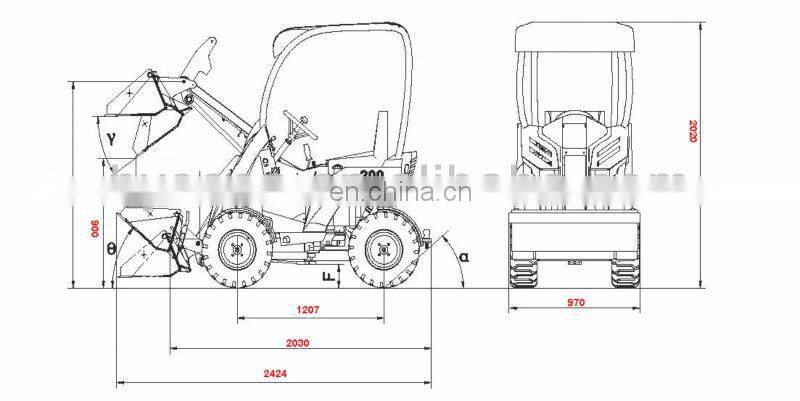

Parameter:
Items | Size(mm) |
Dimension | 2424* 970* 2020 |
Max pin height | 1412 |
Max Working Height | 1360 |
Max Dump height | 900 |
Max Dump distance | 558 |
Total Height | 2020 |
Overall width to outside of tyre | 978 |
Overall length with bucket | 2424 |
Overall Length without bucket | 2030 |
Bucket width | 980 |
Total width | 970 |
Ground clearance(F) | 160 |
Wheel base | 1207 |
Departure angle(α) | 40° |
Dump angle at max height(γ) | 26° |
Rollback of bucket on ground(θ) | 48° |
Mini Turn Radius | 2320 |
