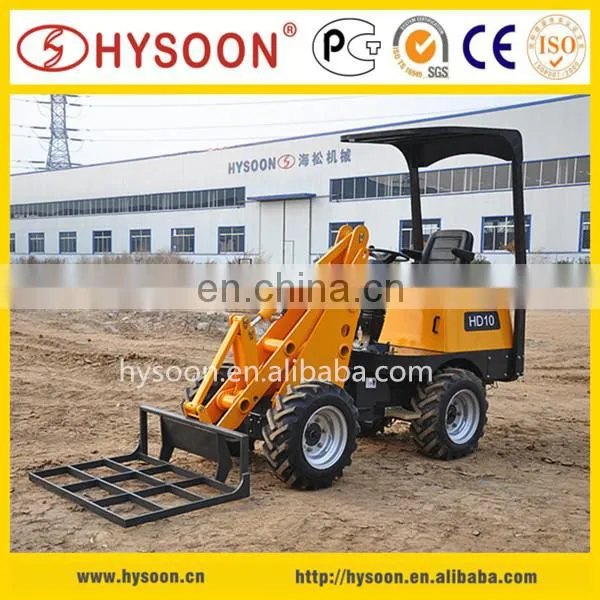

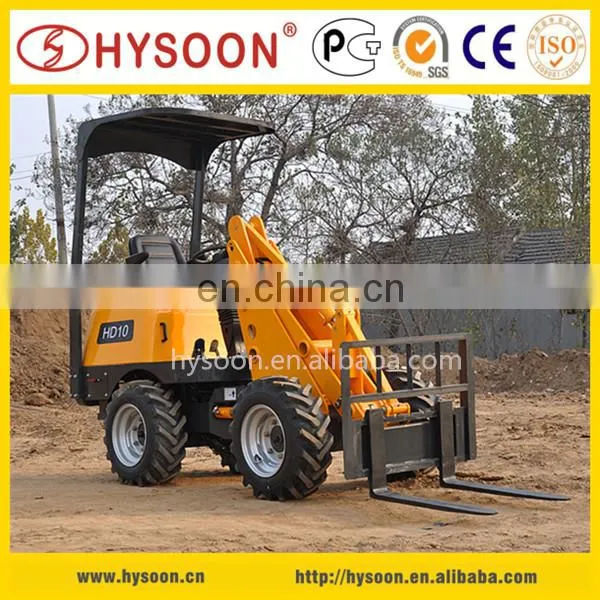

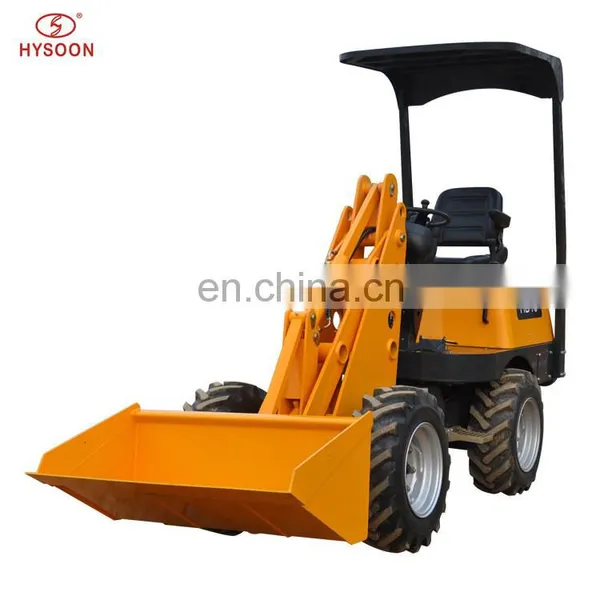

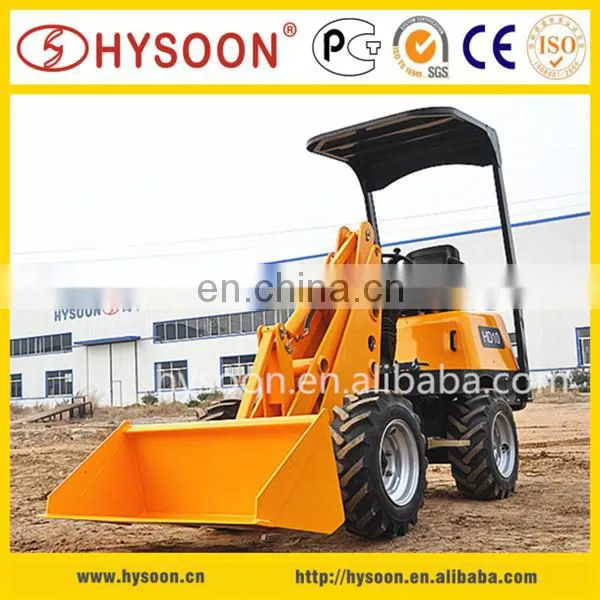

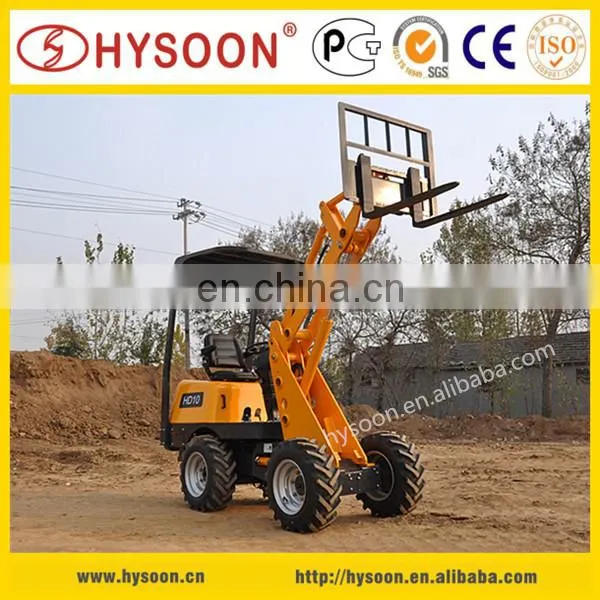

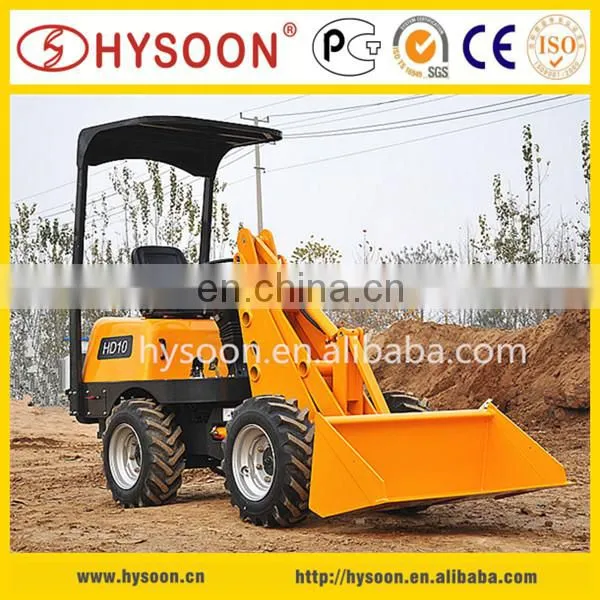

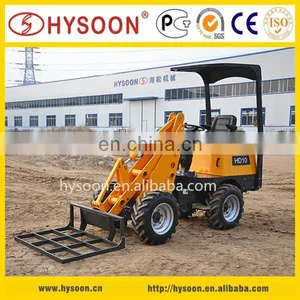

Earth moving machinery, 1t loading capacity micro loader for sale
Items | Date |
Dimension | 3630mm* 1200mm* 2660mm |
Max pin height | 2690 mm |
Max Working Height | 3155 mm |
Max Dump height | 2030 mm |
Max Dump distance | 515 mm |
Total Height | 2660 mm |
Overall length with bucket | 3630 mm |
Overall Length without bucket | 2980 mm |
Bucket width | 1260 mm |
Total width | 1200 mm |
Ground clearance(F) | 320 mm |
Wheel base | 1490 mm |
Departure angle(α) | 30° |
Dump angle at max height(γ) | 45° |
Rollback of bucket on ground(θ) | 34° |
Mini Turn Radius | 3190 |
Rated power | 16kw (21hp) |
Fuel volume | 15.3L |
Hydraulic oil volume | 30L |
Operating weight | 1100kg |
| Bucket capacity | 0.3m³ |
| Speed | 0-10km/h |
| Tires | 10.00/75-15.3 |
• Easy operation, more comfortable. Only one pedal control ruuning and one handler control working.
• 4 wheel drive lets you outmuscle challenging terrain, such as mud, sand, snow, steep slopes, etc.
• World-classes diesel engine, big power, more performance.
• 2100mm highest dumping height
• High ground clearance.
• It is not only a micro loader with reasonable price, but also a high quality dumper.
• Simple cab with seat.
• Operating weight: 1100kg. Operating load: 1000kg
• Dimension(mm): 3630* 1200* 2660
• Multifunction: HD10L micro loader can with different attachments for various working needs. A loader serves several purposes. A quick hitch system, you can change attachments easily and quickly.
Attachments can be: backhoe, digger, pallet fork, earthleveller, sweeper, dump bucket, tiller, lawn mower, angle blade, breaker,4 in 1 bucket, snow blower, mixer, lawn aerator, trench filler,
trencher,grapple,,auger, stone bucket,auger levers,standard bucket,trailer system, and so on.
Why us?
1. We are leading and professional manufacturer of micro loader in China.
2. Independent of the design team, Professional production team, 15 Technical patents. Accept your customization.
3. High Quanlity & Reasonable Price. The accurate product positioning. Maybe we are not the lowest price, But we offer products with the highest cost performance.
4. Responsible, in good faith. To guarantee delivery. Do security by alibaba Escrow Service.
5. 1 Year Warranty. Offer you accessories for free in 1 year warranty period.
6. Provide technical support for life.
7. Accept OEM.
