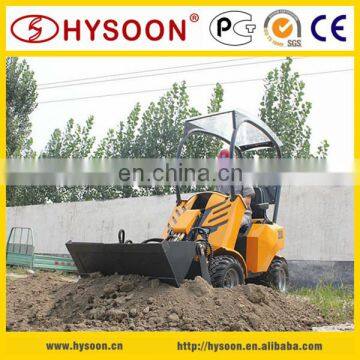

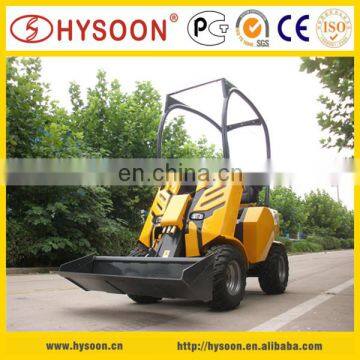

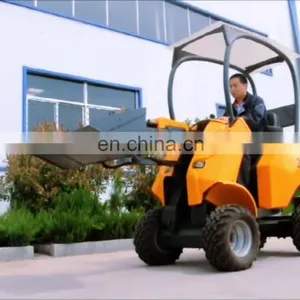

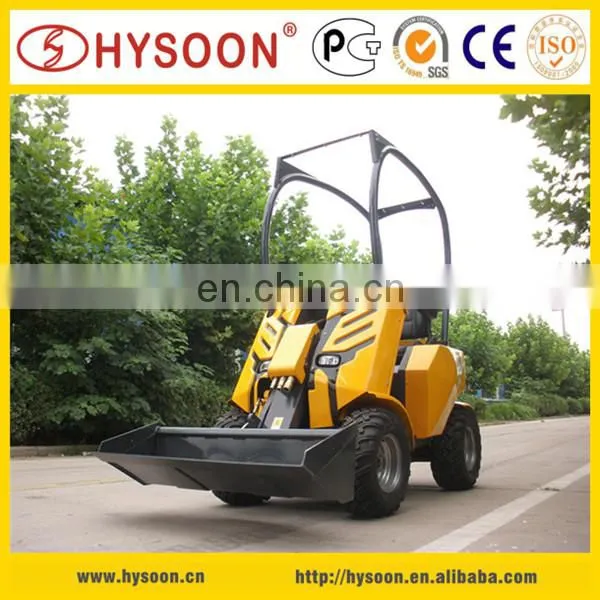

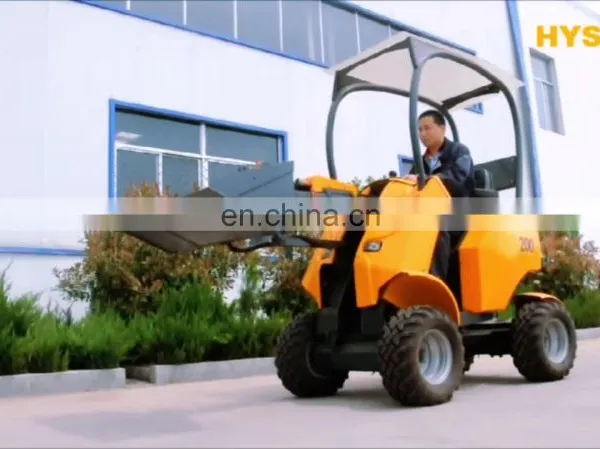

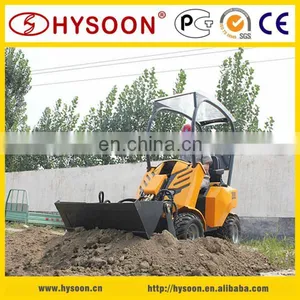

HY200 articulated mini wheel loader with attachments for different job
• American Briggs& Stratton Engine, 23HP
• Imported Italy Piston Pump
• Italy Multi-way Valve
• Articulated Steering Chassis, hydrostatic transmission
• Two pedals operating way, driving safety and easily.
• Ergonomically designed, operation comfortably and safety.
• Compact dimension can operation in narrow spaces.
• Operating weight: 840kg. Operating load: 260kg
• Dimension(mm): 2424* 970* 2020

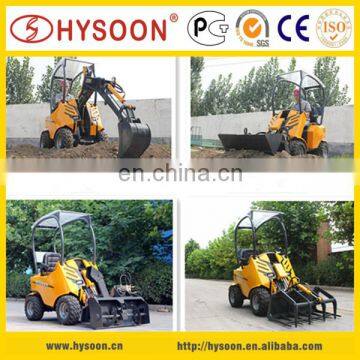

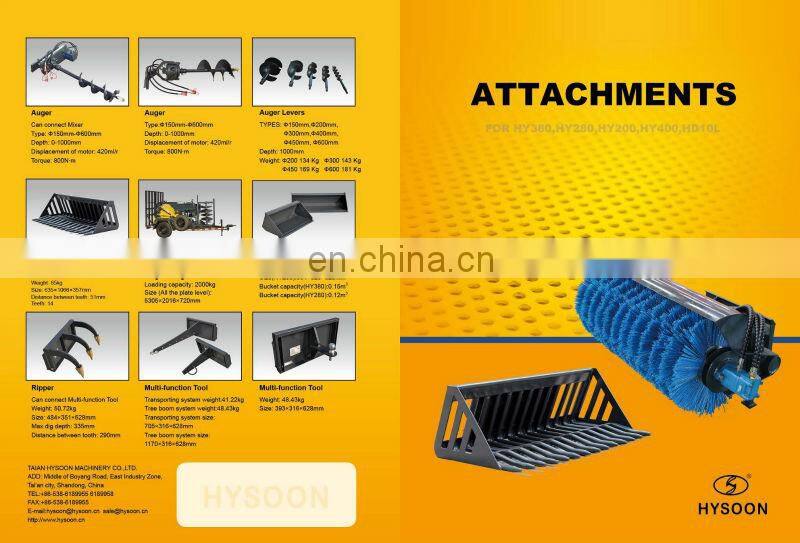

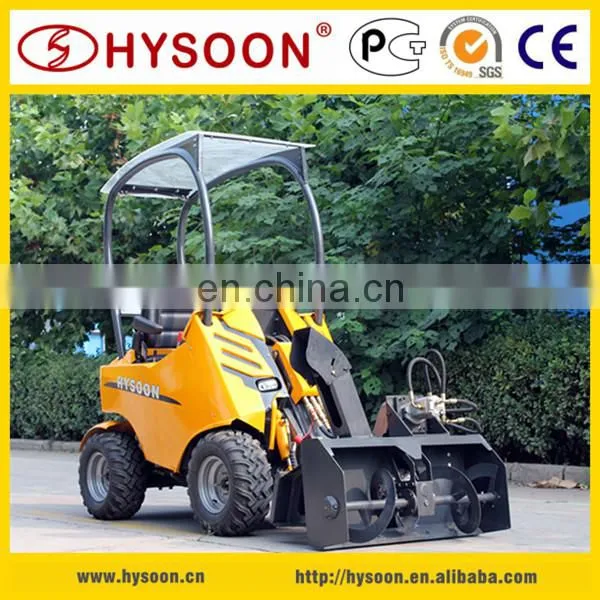

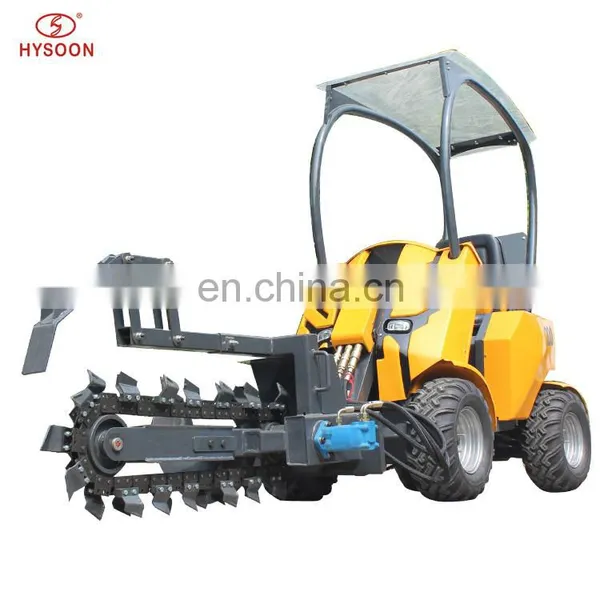

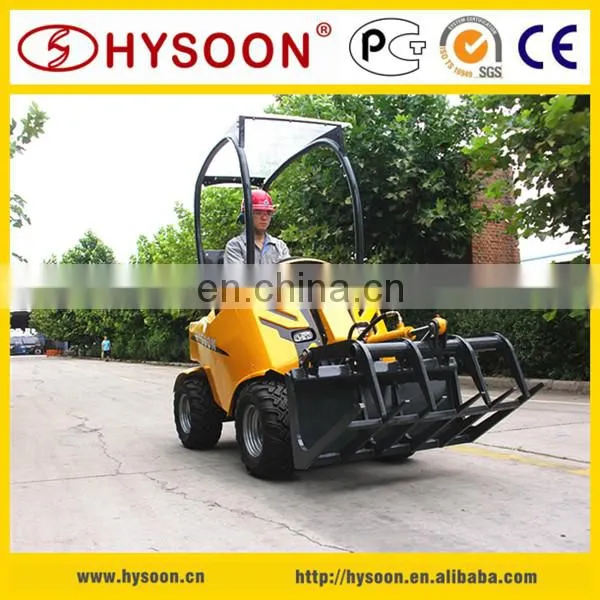

• HY200 mini wheel loader can with different attachments for various working needs.
Main size :
Item | HY200 mini wheel loader | |
Metric | Inch | |
Max pin height (B) | 1769 mm | 69.6 inch |
Max height of unloading (C) | 1260mm | 49.6inch |
The highest point of unloading distance(D) | 558 mm | 21.9 inch |
Total length (H) | 2020 mm | 79.5 inch |
The height from ground (F) | 160 mm | 6.3 inch |
Wheelbase (G) | 1207 mm | 47.5 inch |
No bucket length (J) | 2030 mm | 79.9 inch |
Total width (W) | 970 mm | 38.2 inch |
Bucket width (K) | 980mm | 38.6 inch |
Total length (L)(with bucket ) | 2424 mm | 93.1 inch |
Angle of departure (α) | 40° | 40° |
Bucket unloading angle(γ) | 27° | 26° |
Collecting bucket (θ) | 48° | 48° |
Main performance parameter
Item | HY200 mini wheel loader | |
Metric | Inch | |
Rated power | 17.15KW | 23HP |
Fuel tank of capacity | 22L | 4.8 UKgal |
Hydraulic tank capacity | 21L | 4.6 UKgal |
Loading weight | 260Kg | 573.2 Lb |
Bucket capacity | 0.15 m3 | 5.32 ft3 |
Max traction force | 5 KN | 1124Lbf |
Max lift force | 4.6 KN | 1034 Lbf |
Speed | 0-8km/h | 0-4.97mile/h |
Max lift force | 260 Kg | 573.2 Lb |
Minimum turning radius | 2320mm | 91.3 inch |
Operation weight | 840kg | 1851.9lb |
