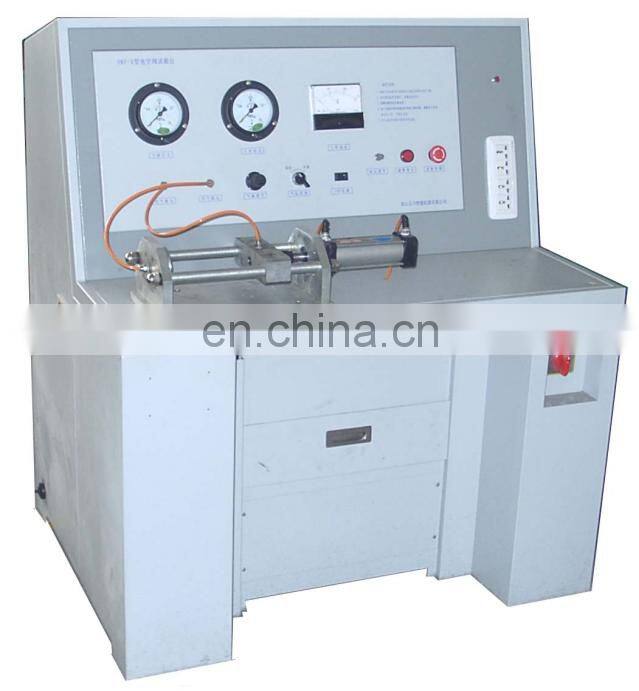

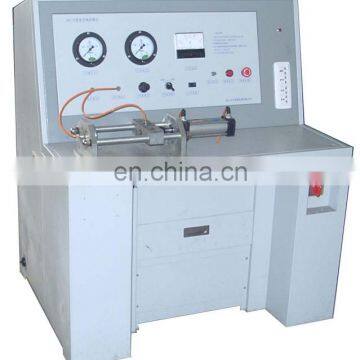

BC216 Electric air valve test bench
Features:
The BC216 electropneumatic valve test bench can perform routine inspection on a variety of models of electropneumatic valves. The test items include on-off, sealing, gas source deflection, and power supply deflection. In addition to the performance test of the electric air valve, the test bench also has a non-load valve, a special air-to-air valve for wheel and rail lubrication, and a JY3 type pressure relay test function.
Through the pressure regulating valve, high pressure and pressure regulating pressure can be supplied to the test area to adapt to the performance test of various test pieces. The test pieces are clamped on a set of flipping fixtures that can be manually turned over by 90°, and it is convenient to comprehensively observe the external leakage of the tested parts during the sealing test of the pressure holding method. It has two pairs of DC power output terminals and two pairs of contact on/off detection input terminals.
Installation requirements:
Power supply: single-phase AC 220V±10% 50Hz 0.6kVA Air source: 1MPa Air tube inner diameter φ12
Machine weight: 200kg
The equipment is placed on a solid and even floor in the room. The working environment temperature is -10 °C - 50 °C, and the relative humidity is less than 90%.
JINAN BEACON MACHINE CO.,LTD is a leading manufacturer in China specialized in researching and developing diesel injection pump test bench and turbocharger balancing machine .
Our products are exported to more than 100 countries .Due to our excellent quality, competitive price and professional technical support, our products are the common choice of many overseas buyers.
Our main product include:
common rail injector test bench ,
common rail injector tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,
Denso ECD-V3 ,V4, V5 pump tester ,
PT Cummings pump and injector tester ,
common rail tools and spare part .
Welcome to visit our factory and cooperate in the future.
