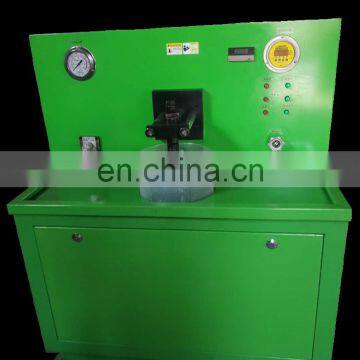

Help CenterBEACON BC316 Diesel Injector Seat Seals and Spray Quality Test Machine
Related Products
-
Jinan Beacon Machine MTU2000 EUI EUP Injector Pump Test BenchUS$ 5,000 - 8,000MOQ: 1 Set -
BK2000 Wood Ward Speed Governor Test BenchUS$ 19,000 - 19,600MOQ: 1 Set
-
BCS815 for Common Rail Diesel Injection Hydraulic Pump Test Bench With Euieup Heui FunctionUS$ 6,000 - 7,500MOQ: 1 Set
-
Multi-function BCS815A EPS815 Common Rail Injector Tester and Mechanical Pumps Test BenchUS$ 6,000 - 7,500MOQ: 1 Set
-
BEACON BCS815A EUIEUP HEUI Diesel Common Rail Test Equipment Fuel Injection Pump Test BenchUS$ 6,000 - 7,500MOQ: 1 Set
The appearance, structure, etc. of the products involved in this product picture are for reference only, and the products are subject to the standard. The PBC240 test rig is a test device for detecting the sealability and spray quality of the nozzle seat. The main drive is driven by a motor with small fluctuations, reliable performance and low noise. Test bench speed; can be constant speed and constant load.
This test bench tests various small injector assemblies and injector seat seals and spray quality. This product is equipped with an electronic display, automatic digital display opening pressure; the sealing time of the injector assembly.
1. The test bench can do the Dongfeng series; DN series; 200 series; 250 series; 300 series; 390 8V240ZJ diesel engine series and in-line pump diesel injector spray test. Open the pressure test and the overall seal test.
2. Non-standard test bench can be processed according to user needs (user provides data; parameters; physical)
3. When the spray test is completed, the whole seal test test is convenient, and the rotation is quick and flexible.
4. The pressure of the test bench is adjustable within the range of 0-60 MPa and the pressure is stable.
5. During the spray test, the injection speed and pressure of the test bench can be adjusted. The pressure per second is increased by 1-2Mpa (about 2S injection) to 26Mpa (or 28Mpa). Check the operation of the needle valve of the injector. When the number of injections reaches 60. -80 times / min, the opening pressure is 26Mpa (or 28Mpa), the oil quantity meets the requirements of use, and the system pressure is stable.
6. The pressure of the test bench has two observation functions: pressure gauge and digital display device.
7. The sealing pressure of the whole test machine is 32Mpa, 30Mpa timing; 3 minutes pressure drop is less than 1Mpa.
8. The oil temperature during continuous test is not higher than 40 °C (ambient temperature is 18-25 °C).
Technical parameters of the test bench:
Power supply: AC380V±10% 50Hz 2.2KVA
Hydraulic system pressure range: 0 ~ 6.3MPa
Injection frequency adjustment range: 8 ~ 120c / min
Clamping force of the test piece: 21~45KN
Spring type pressure gauge accuracy: 1.5
Self-sealing performance of test bench at 40MPa: pressure drop <1MPa/3min
Hydraulic tank capacity: 40L
Fuel tank capacity: 25L
Test bench dimensions: 1200 × 780 × 1500mm
Weight: 300kg
Installation method: floor type, no need to be buried
JINAN BEACON MACHINE CO.,LTD is a leading manufacturer in China specialized in researching and developing diesel injection pump test bench and turbocharger balancing machine .
Our products are exported to more than 100 countries .Due to our excellent quality, competitive price and professional technical support, our products are the common choice of many overseas buyers.
Our main product include:
common rail injector/pump test bench ,
common rail injector/pump tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,
Denso ECD-V3 ,V4, V5 pump tester ,
PT Cummings pump and injector tester ,
common rail tools
High quality spare parts: Injector/valve/nozzle/head rotor/plunger....
Welcome to visit our factory and cooperate in the future.
1.Q:How can i start the order?
A:STEP1,please let us know what model do you interest and quantity you need;
STEP2,then we will make a PI for you to confirm all the order detail;
STEP3,after you confirmed all the detail,then you can arrange the payment;
STEP4,after we received the payment we will start the production and delivery for you.
2.Q:What is the delivery time?
A:It depend on what kind of product do you need,if you need a small tester or the spare parts,
about 2-3 work days.
For big product such as test bench or balancing machine takes about 7-10 work days.
3.Q:What is the payment term?
A:We support TT/ WEST UNION/LC/ MONEY GRAM / ALIBABA TRADE ASSURANCE.
4.Q: what is your after sale service?
A: One year warranty for our product, whole life technical support whole-life.
5.Q:What delivery term do you support?
A:For sea shipping,we can do the term EXW,FOB,CFR,CIF,DDU and DDP.
For courier service,we can delivery by DHL TNT,FEDEX,EMS and etc....
