china manufacture single effect fiber separator paper pulp fiber separator fiber separator for paper plant

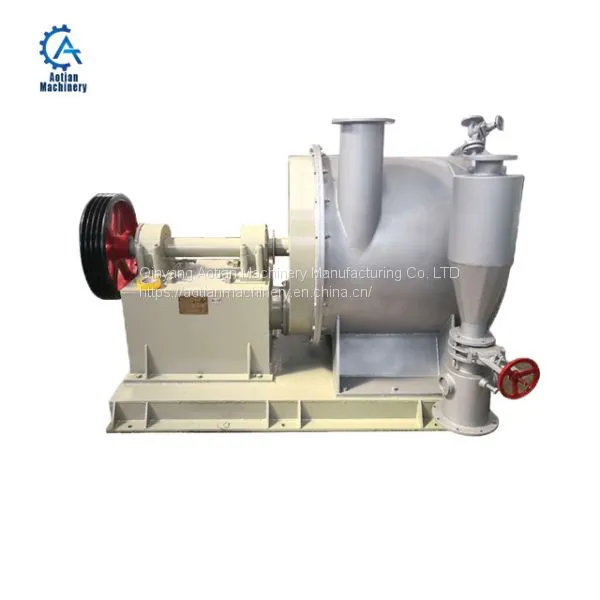

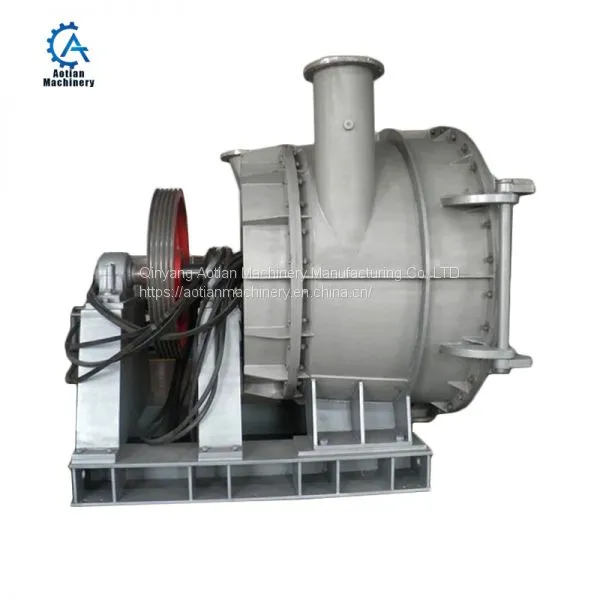

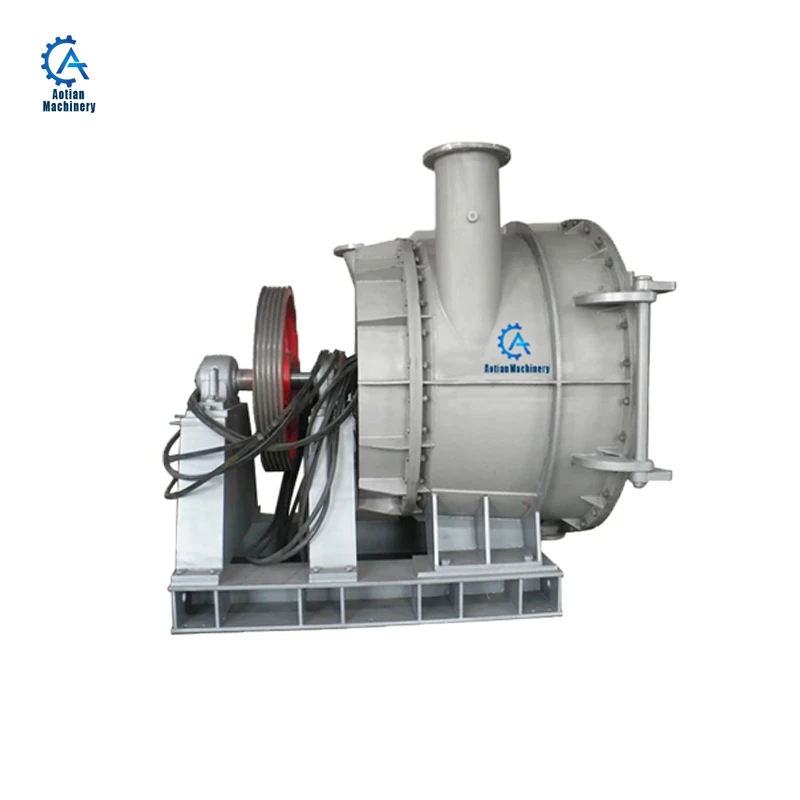

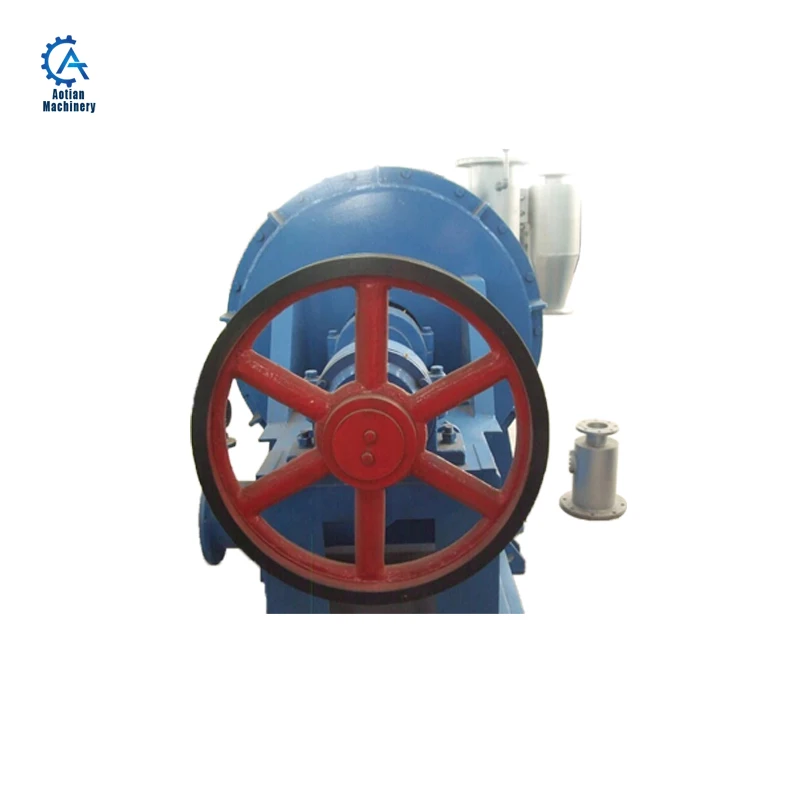

Product overview of paper pulp fiber separator :
Pulp machine fiber separator machine is a combination of one sealed horizontal hydrapulper and a light & heavy impurity remover. It adopts drum and turbo structure so has higher efficiency.With compact structure,high efficiency,it has functions such as pulp beating,impurity removing ,coarse screening etc,thus simplifies the process of dealing with wasted paper greatly, and reduces the energy consumption.
Working principle of paper pulp fiber separator :
Paper Pulp get into the cylinder shaped cabinet with a tangent track and revolve in high speed with the impulse of pressure difference and revolving cutter. Then in the effect of hydraulic shear force , friction of fibers and the beating of blades, the pulp is defibered.
The pressure difference between sieve plates and drive impulse of cutters make The defibered pulp go through the screen holes on sieve plates and go out from accept outlet. The pulp which can not go through sieve plates revolve rapidly in the cabinet and generate strong centrifugal force, which together with the difference of proportion make the heavy impurities , fiber and light impurities radially stratified. Heavy impurity, fiber and light impurities at the same time move to the section far away from sieve plates with the push of cutter blades. Heavy impurities move along the inside wall of cabinet to tangent outlet and go into heavy impurity cleaner.
After the cleaning of heavy impurity, pulp will go out from cleaner regularly and get into fiber separator again from pulp inlet; Light impurities have small proportion ,they are concentrated in the central part and go out continuously from central outlet. when pulp move to end cover, it will flow back to cutter and go through sieve plates again.
Product name |
Fiber separator |
Type |
AT-ZDF2 |
Production capacity(T/D) |
30-40 |
Impeller diameter(mm) |
450 |
Screen hole specification(mm) |
Ø2.5-5 |
Concentration of inlet pulp(%) |
2.5-4.5 |
Pulping pressure(Mpa) |
0.2-0.3 |
Power(KW) |
45 |
There are our best selling products,the quality is praised by customers all over the world.

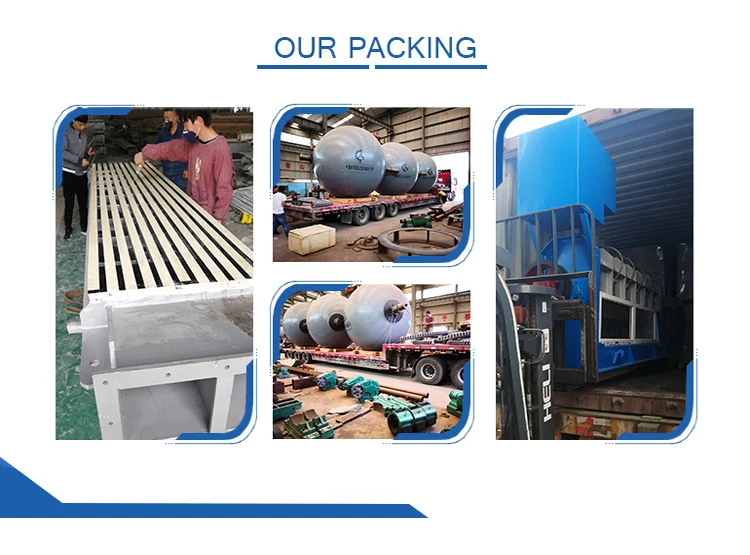

(1) Packaging:
Products will be packaged according to their shapes, weight, transport distance and transport modes. Large machines will be packaged in sections. Every part of export machinery will be in standard export wooden package, waterproof film, straw rope, carton box ,etc, which will ensure the intactness of the products.
(2) Delivery:
1. sea transportation is from qingdao seaport or other ports.
2. the delivery time is decided by your needed machines or machine parts. But it also follows your needs.
Advantage:
Part 1:
1)Low MOQ: It can meet your low qty demand very well.
2)Good Service: We treat clients business as our own business.
3)Good Quality:We have strict QC quality control system .Good reputation in the market.
4)Fast & Cheap Delivery: We have big discount from shipping forwarder (Long Contract).
Part 2:
1. We have rich experience in this industy;
2. We are the factory outlet ,can give you a cheaper price ;
3. For the machine,we have complete paper machinery with top quality.
Before Purchase:
1.Help customers find the right product by professional technology and business consultation
2.Provide plans of the machines installation freely
3.Make customized products according to the clients requirements
4.Online for 24 hours
After purchase:
1.Fast and saft delivery
2.Assist our clients to bulid the equipment
3.Train the first-line operators on site
4.Regularly visit clients to solve production problems
5.Online for 24 hours
Our company was founded in 1985,according to the modern enterprise mechanism into a large-scale standardized joint-stock enterprises,with 278 workers,including 23 engineers and technicians,15 senior engineers.In general,Aotian is in the leading place of paper making industry in China.
Our factory can produce mechanical pulping equipment,chemical pulping equipment,paper scrap deinking equipment, pulping and paer making sewage treatment equipment,paper-plastic of composite paper separating equipment,etc. We will provide whole services according to our clients' demand, like technical design, equipment priduction, installation and test instruction and so on.We will meet and exceed your expectations.Please contact our custom services for details.
Constantly promote and publicize the company's brand, to the majority of customers to show the strength and image of the company.The high concentration of visitor flow, information flow and capital flow in the exhibition can help our company learn from each other and improve its competitiveness.
All products comply with GB and ISO standards.the enterpries passed the ISO9001 international quality system certification in 2000.
