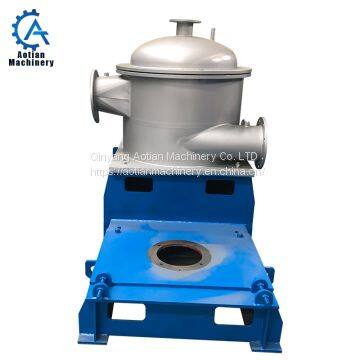

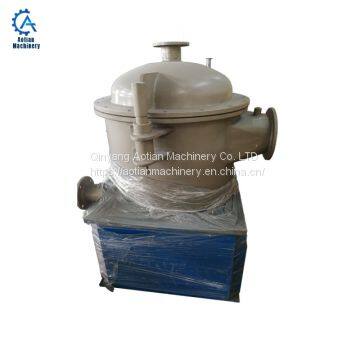

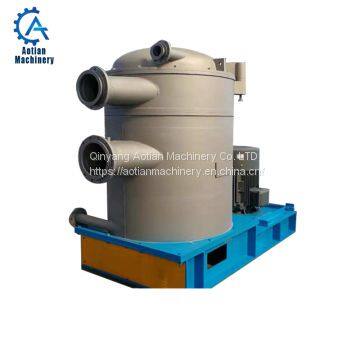

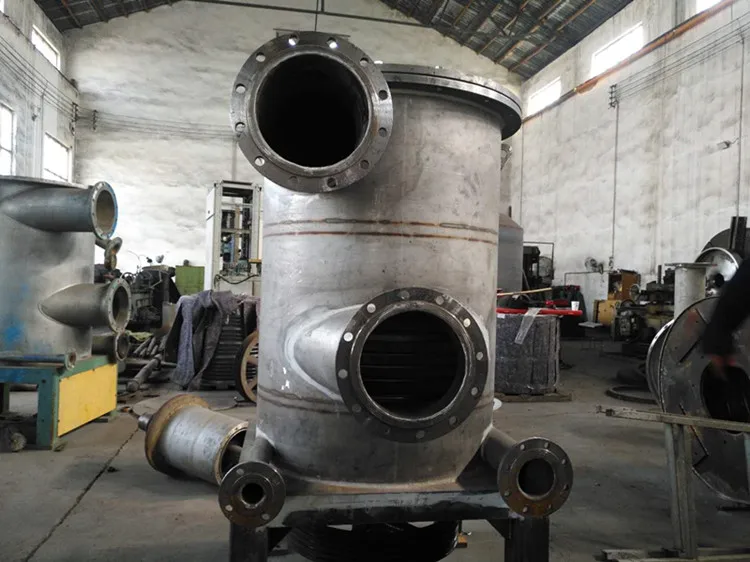

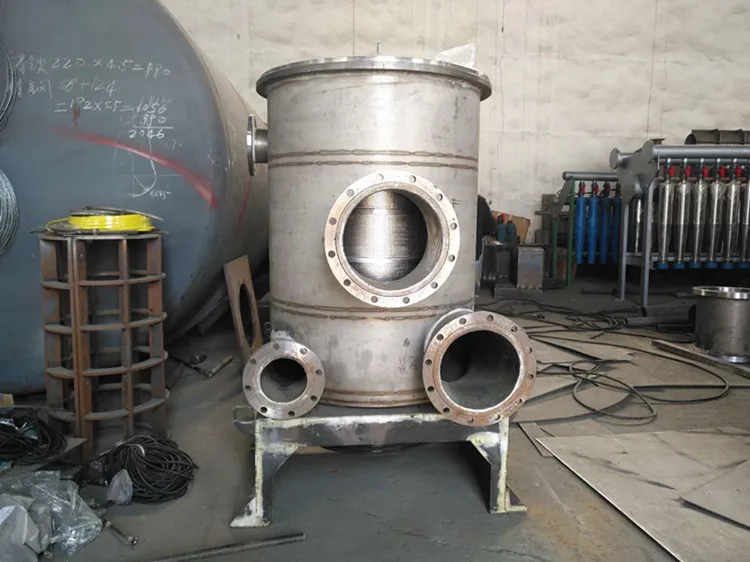

Waste Paper Pulp Processing Machine Pressurized Screen Inflow Pressure Screen
The pressure screen adopts the upward flow structure design of the bottom feed slurry, the bottom discharge heavy slag, and the top discharge light slag, which effectively solves the above problems. The light impurities and the air in the slurry naturally rise to the top slag discharge, and the heavy impurities can settle into the bottom as soon as they enter the body.it Include Screen basket,Rotor,housing and transmission.
Inflow Pressure screen parameter list
| Molde ZNY | ZNY0.6 | ZNY1.2 | ZNY1.5 | ZNY2 | ZNY2.5 | ZNY3 | ZNY3.5 | ZNY4 | ZNY4.5 | ZNY5 | ZNY6 |
| Screen Area(m²) | 0.6 | 1.2 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 6 |
| Screen Cut Scope(mm) | 0.15-0.5 | ||||||||||
| Inlet Pressure(Mpa) | 0.1-0.25 | ||||||||||
| Consistency(%) | 0.3-1.2 | ||||||||||
| Capacity(T/D) | 15-40 | 30-90 | 40-110 | 55-150 | 70-160 | 100-200 | 130-250 | 160-300 | 180-350 | 200-400 | 240-500 |
| Motor Power(KW) | 15-22 | 18.5-30 | 22-37 | 30-45 | 37-55 | 45-55 | 45-75 | 55-90 | 55-90 | 75-110 | 90-132 |
1.The screening efficiency is high: because of the slurry enters the sieve along the tangential line with a high pressure, the fiber and the coarse impurities are separated before the slurry enters the sieve drum by the centrifugal force. Qualified fiber quickly passes through the sieve drum by the pressure difference between the inlet and outletpurity Cleaner For Pulp And Paper Equipment hina Manufacture.
2.Screen basket has a long service life:because of the pulp enters the pressure screen, the heavy impurities of the pulp are separated by the centrifugal action, so that the impact and wear of the impurities on the rotor and the screen basket are alleviated. Extends the life of the screen basket.
3.No clogging during screening:The pulp is evenly screened from top to bottom without thickening. The impurities are far away from the sieve drum, and the sieve drum is not easy to block.
4.It can replace the low pulse screen:The machine has a low pulse intensity and does not cause disturbances directly on the Internet.
5.The quality of the pulp is good: the screen basket is made of stainless steel, and the fine mesh joint is used to greatly improve the removal rate of harmful impurities in the good pulp.
6.Low maintenance costs: the spindle uses an advanced mechanical sealing system that is not easily damaged.
These are all our hottest products.
Both the quality and the price are highly appraised by customers
Aotian Machinery Manufacturing Co., Ltd. was founded in 1985, according to the modern enterprise mechanism into a large-scale standardized joint-stock enterprises, with 278 workers,including 23 engineers and technicians,15 senior engineers.In general, Aotian is in the leading place of paper-making industry in China .
We will provide whole services according to our clients’ demand, like technical design, equipment production, installation and test instruction and so on. We will meet and exceed your expectations. Please contact our custom service for details.
Our products have won high reputation among our customer from different countries.These are the feedback from them
These are our clients Bangladesh Pakistan and India.
Our products are sold to more than 100 countries all over the world.

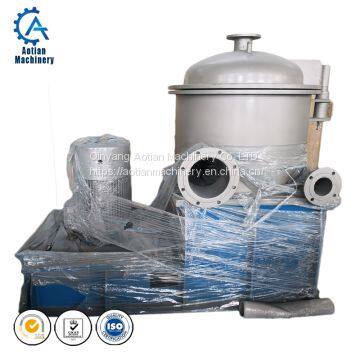

Packaging
products will packaged according to their shapes, weight, transport distance and transport modes.
Large machines will be packaged in sections.every part export machinery will be in standard export
package seaworthy wooden case waterproof film, straw rope, carton box etc
Shipping
sea transportation is from Qingdao seaports or other china main ports.
the delivery time is decided by machine types.But we also try to make it follows your needs.
Service first
1.To provide you with the transformation and upgrading of plant equipment programs, in order to improve the yield and quality
2.Always online to answer technical questions
3.The customer arrives China, accompanied this translation facility until send customers back
4.send engineers to the customer's national installation and commissioning of the machine, to ensure the normal operation of the machine
5.Our products can guarantee excellent quality, if there is any quality problems, we flew to your country for your free service
1.Q:Are you a manufacture?
A: Yes,we have been in providing the professional products in this field for 30 years.
2.Q:How to install the machine?
A:we can help with the installation by vedio,email,picture.if it is a large project,we can arrange our worker help you to install it in your country.
3.Q:How do you pack the products?
A:Normally as the export standard packaging or as your requirement.
4.Q:What's your available port of shipment?
A:Qingdao port,Shanghai port and so on.
5.Q:Is it customized available?
A:Yes,according to your detailed drawing you provided.
