Home > Products > Pulping equipment > Pulp Making Equipment Milling Flake 450 Double Disc Refiner Machine

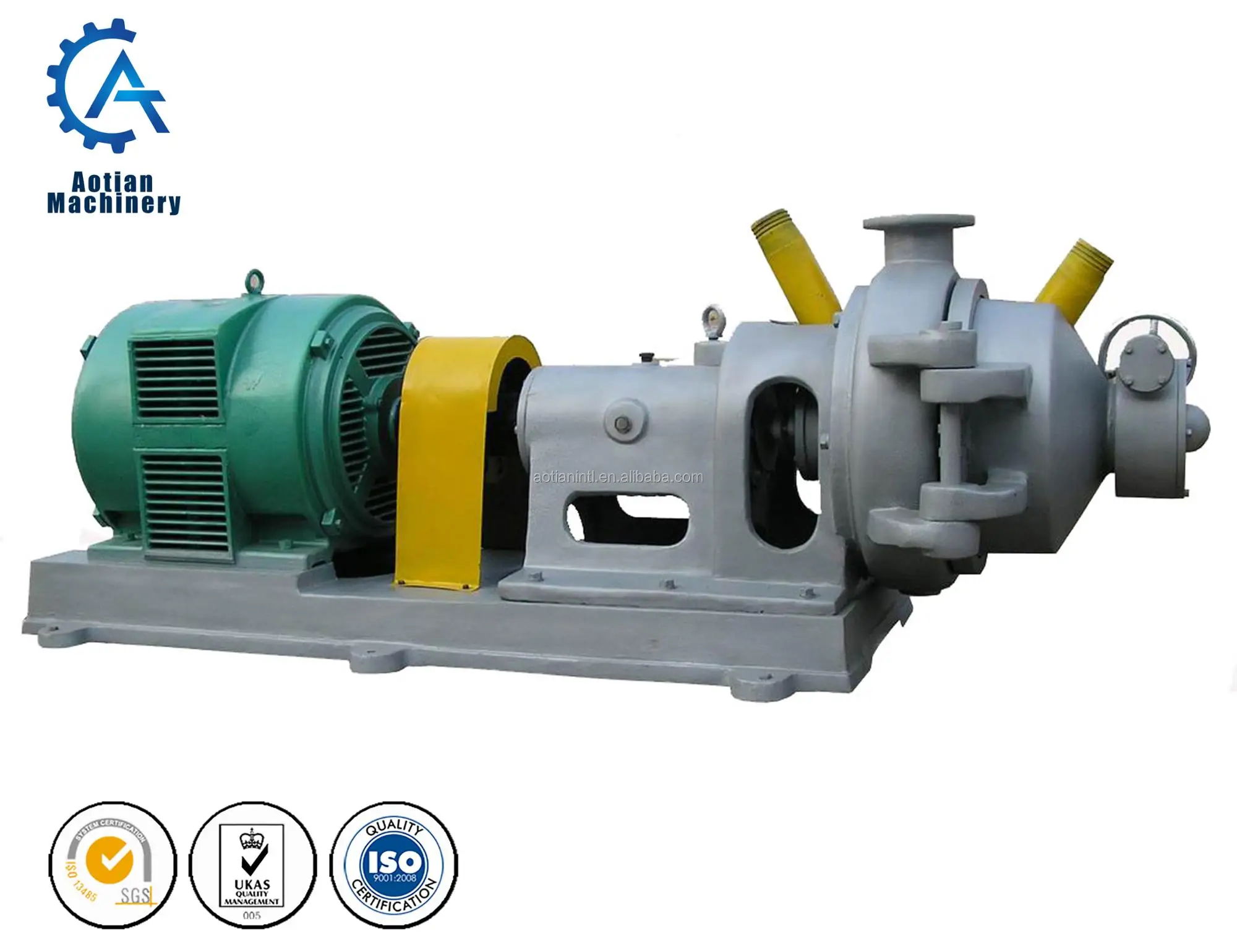

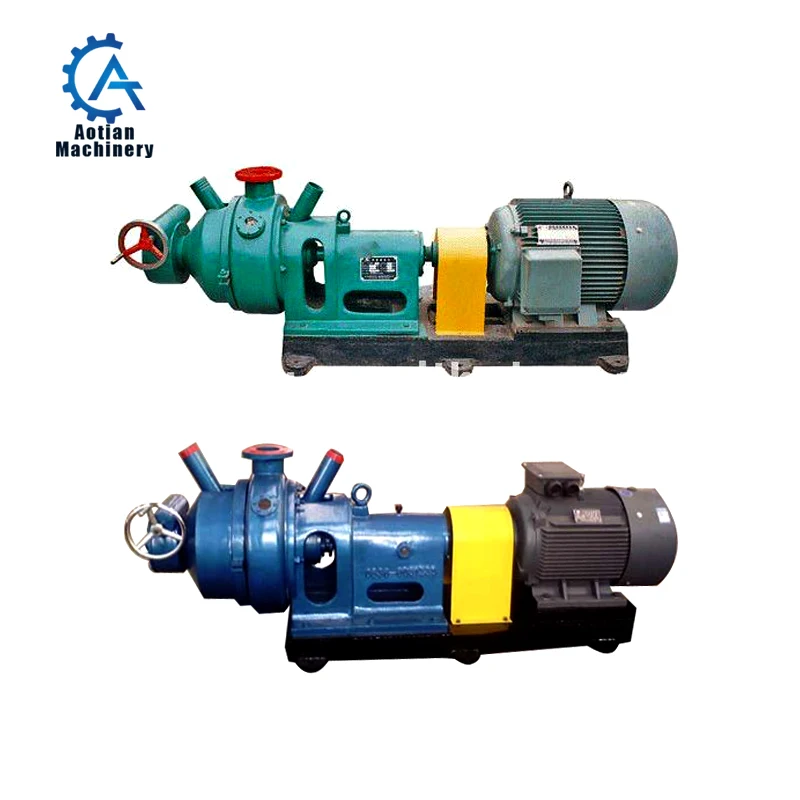

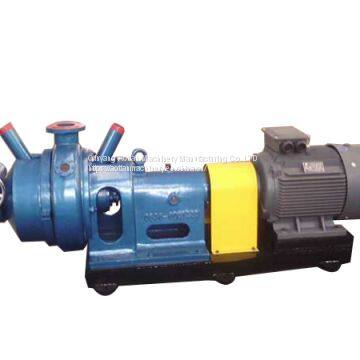

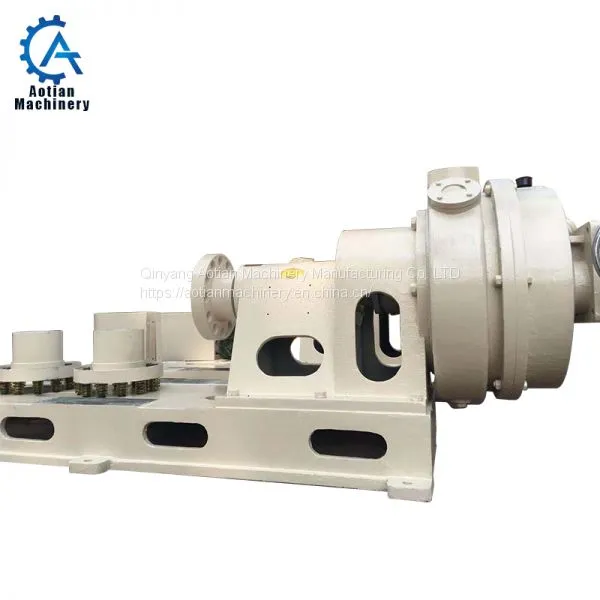

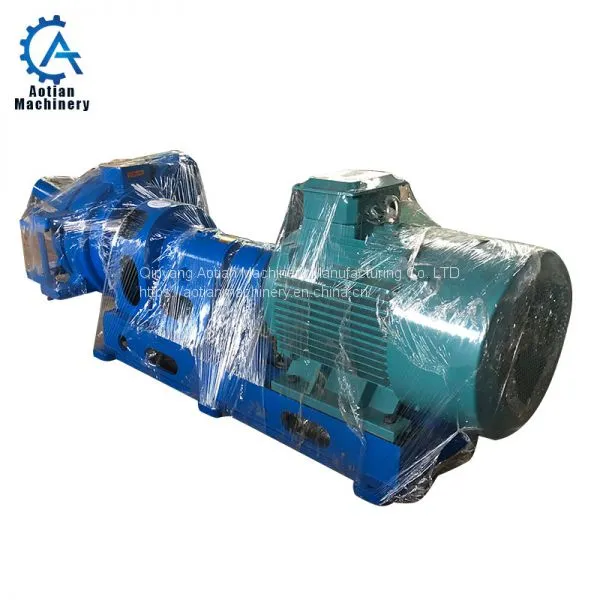

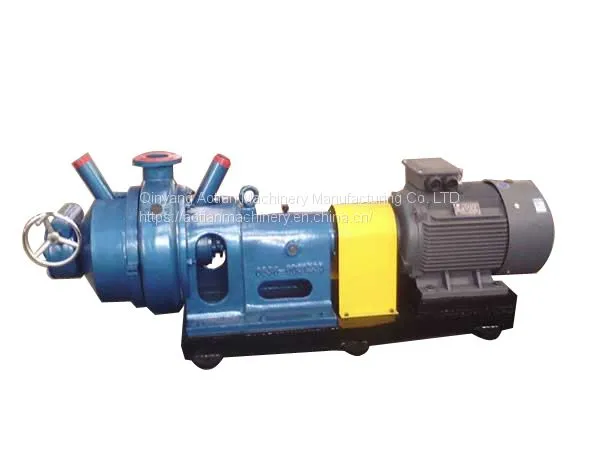

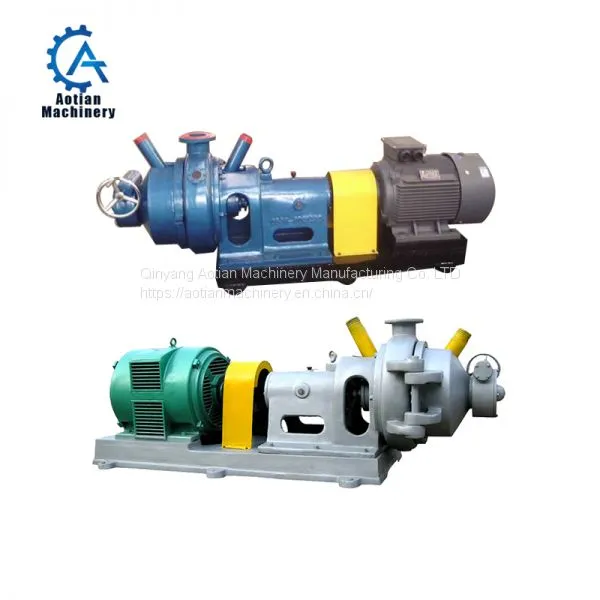

Pulp Making Equipment Milling Flake 450 Double Disc Refiner Machine
- 10 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 30 days
Product Details
Brand Name: | aotian | Place of Origin: | China | Model Number: | AT |
Product Description
The disc refiner used for beating and improve the beating degree of pulp to satisfy the papermaking demand.
It can be equipped with variety tooth refiner plate. Suitable various raw materials like wood pulp, chemimechanical pulp, chemical pulp and waste paper pulp.
pulp and paper equipment
Main Technical Data Impurity Cleaner For Pulp And Paper Equipment
Model | AT-200 |
Diameter of disc (mm) | Φ450 |
Stock inlet (mm) | 2-Φ65 |
Stock outlet (mm) | Φ70 |
Production capacity (t/d | 8-60 |
Feeding pulp concentration (%) | 2-5 |
Pressure of pulp stock feeding (Mpa) | 0.15-0.2 |
Rotate speed of the main engine (r/min) | 990 |
Overall dimension: (L×W×H) mm | 3100×840×971 |
Weight: (excluding the motor) Kg | 1500 |
hina Manufacture Defibrating Machine Composite Fiber Separator Paper Making Machine
Paper Pulp Centricleaner
Aotian Machinery Manufacturing Co., Ltd. was founded in 1985, according to the modern enterprise mechanism into a large-scale standardized joint-stock enterprises, with 278 workers,including 23 engineers and technicians,15 senior engineers.In general, Aotian is in the leading place of paper-making industry in China .
We will provide whole services according to our clients’ demand, like technical design, equipment production, installation and test instruction and so on. We will meet and exceed your expectations. Please contact our custom service for details.
Recycled Paper Pulper Machine Hydrapulper D Type Hydrapulper For Paper Pulp Making Machines
Our products have won high reputation among our customer from different countries.These are the feedback from them
These are our clients in Bangladesh,Pakistan and India,Indonesia,Thailand.
Our products are sold to more than 100 countries all over the world.
Packaging
products will packaged according to their shapes, weight, transport distance and transport modes.
Large machines will be packaged in sections.every part export machinery will be in standard export package seaworthy wooden case waterproof film, straw rope, carton box etc
Shipping
sea transportation is from Qingdao seaports or other china main ports.
the delivery time is decided by machine types.But we also try to make it follows your needs.
Service first
1.To provide you with the transformation and upgrading of plant equipment programs, in order to improve the yield and quality
2.Always online to answer technical questions
3.The customer arrives China, accompanied this translation facility until send customers back
4.send engineers to the customer's national installation and commissioning of the machine, to ensure the normal operation of the machine
5.Our products can guarantee excellent quality, if there is any quality problems, we flew to your country for your free service
1.Q:Are you a manufacture?
A: Yes,we have been in providing the professional products in this field for 30 years.
2.Q:How to install the machine?
A:we can help with the installation by vedio,email,picture.if it is a large project,we can arrange our worker help you to install it in your country.
3.Q:How do you pack the products?
A:Normally as the export standard packaging or as your requirement.
4.Q:What's your available port of shipment?
A:Qingdao port,Shanghai port and so on.
5.Q:Is it customized available?
A:Yes,according to your detailed drawing you provided.
