Product structure
ZGC double cone high concentration slag eliminator is composed of inlet and outlet head, upper cone, lower cone, pressure gauge, ball valve, high pressure water pipe, sediment tank and other components, ZGC double cone high concentration slag eliminator.

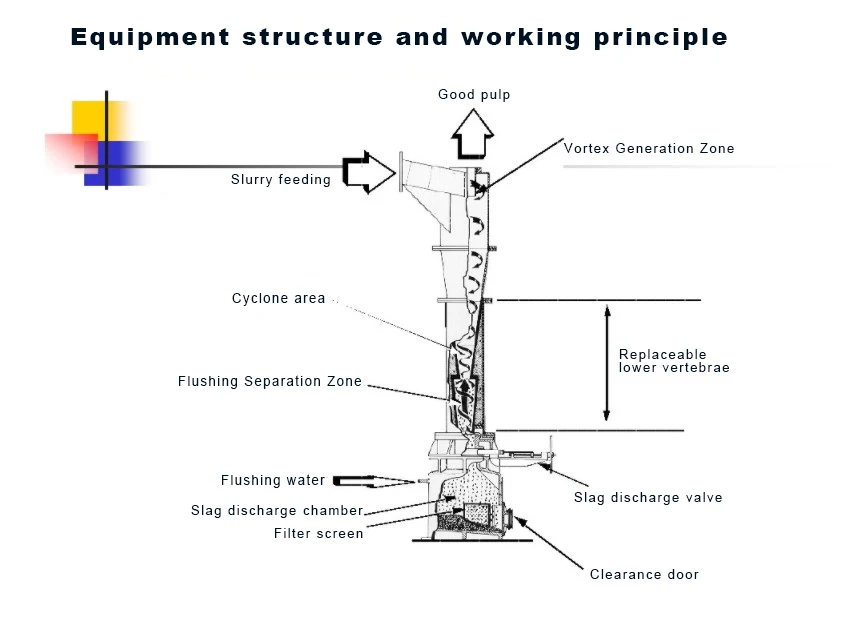

Product principle
Product performance
It can work in the conveying process of high concentration slurry without affecting the effect of sand removal. The pulp goes through the dredge at one time, and the fine pulp in the impurities is washed by backwash with pressurized water, and the fiber loss is basically zero. The cone is made of high strength cast iron after tempering and finishing, or wear-resistant ceramics, with a wall thickness of 5-10cm, which is wear-resistant and corrosion-resistant, and has a longer service time. Through the data shown in the inlet and outlet pressure indicator, the pressure difference of inlet and outlet slurry can be adjusted freely to achieve the separation effect and production capacity required by the design.

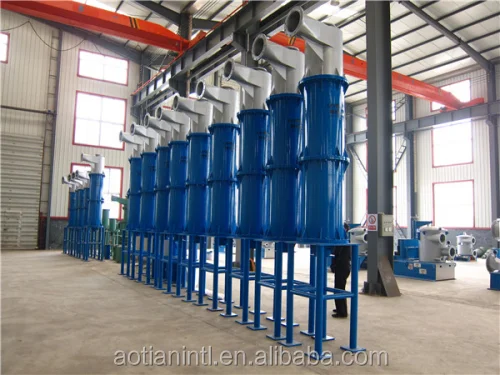

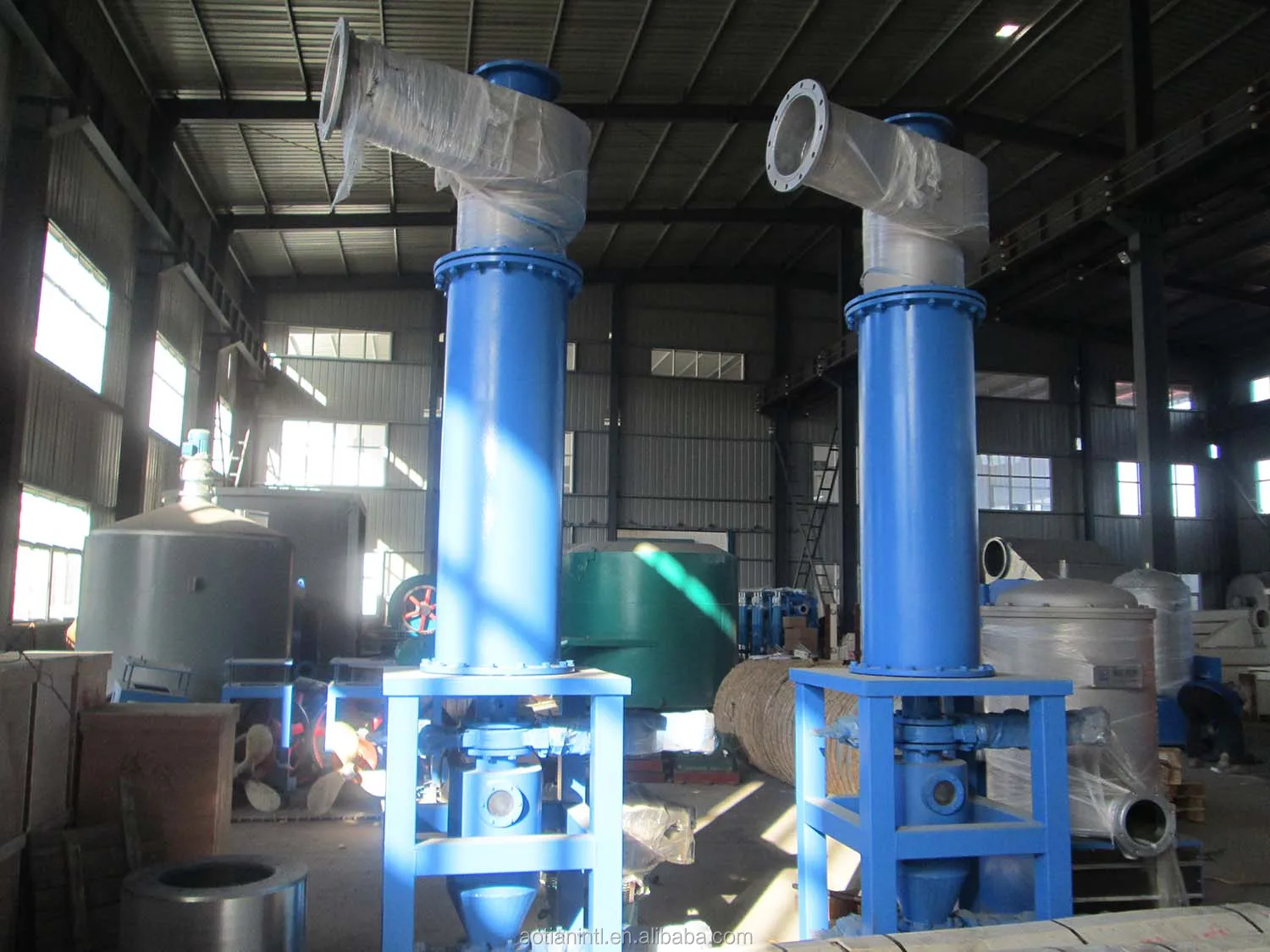

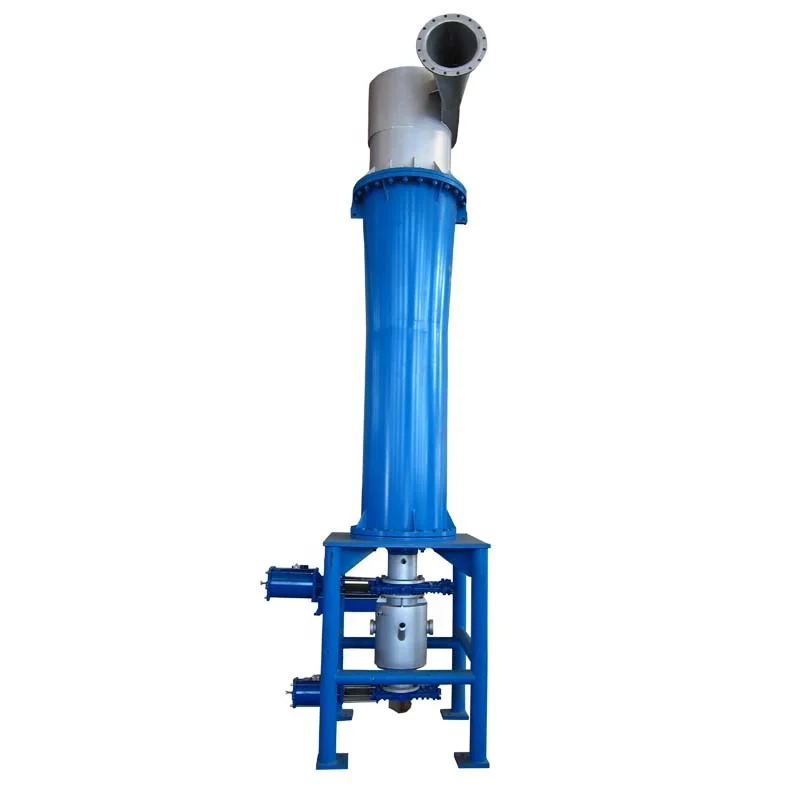

Product show
Advantage
1. Remove the heave impurities effectively.
2. Cleaning system for all virgin fiber material.
3. Cleaning for all waster paper stock.
4. Low energy consumption.
5. Less fiber loss.
Technical Parameters
Throughput of single branch(L/min) | FDC-400 | FDC-600 | FDC-700 | FDC-1000 | FDC-1200 | FDC-1800 |
Pressure of inflow pulp(MPa) | 0.2-0.4 | |||||
Pressure of output pulp(MPa) | 140-175 | |||||
Concentration of inflow pulp(%) | 0.4-1.2 | |||||
Slagging rate of single section volume(%) | 10-12%(Relative flow rate of inflow pulp) | |||||
There are our best selling products,the quality is praised by customers all over the world.
Packaging
Products will packaged according to their shapes, weight, transport distance and transport modes.
Large machines will be packaged in sections.every part export machinery will be in standard export package seaworthy wooden case waterproof film, straw rope, carton box etc.
Shipping
Sea transportation is from Qingdao seaports or other china main ports.The delivery time is decided by machine types.But we also try to make it follows your needs.
Our machines sell good in more than 30 countries,such as Nigeria, Egypt, Uzibekistan, Pakistan, America,Uganda,Turkey,Brazil,Fiji,Paraguay,Syria,Lybia,Ethiopia,etc.We have established good relationship with many foreign countries because of our good quality and perfect service.
Customer feedback
Aotian Machinery Manufacturing Co., Ltd.
Trade market
Our machines sell good in more than 30 countries,such as Nigeria, Egypt, Uzibekistan, Pakistan, America,Uganda,Turkey,Brazil,Fiji,Paraguay,Syria,Lybia,Ethiopia,etc.We have established good relationship with many foreign countries because of our good quality and perfect service.Also we have good relationship with local traders.
What we can provide
1.1092,1575,1760,1880,2400,2640,2800,3200mm paper machine
2.pulp making equipments
3.paper making equipments
4.paper processing equipments
Best Service
1.We will provide you all technical consultation and make the drawing and proposal for you.
2.We will send technicians to install and test the machine fo you.
3.We will train skilled workers for you.
4.We will supply best pre-sale, after-sales for you.
1.Payment terms :
(1) 30% T/T within 10days after sign contract;
(2)70% T/T before shipment ;
(3) 100% L/C is also acceptable ;
2.delivery time : within 50days after first payment ;
, installation and training workers :
(1) After client confirm machine model , we will make design completely according to client's technical
requirement and land condition ;
(2) After shipment , we will send engineer to make installation and test machine ;
(3) After installation , we will keep 1-2 engineers working for client , these engineer will teach worker
how to operate ,maintain machine ;
4. Turn- key project :
We can accept turn-key project ;
5.OEM :
We can accept OEM ;
Any questiones you can caontact me.
