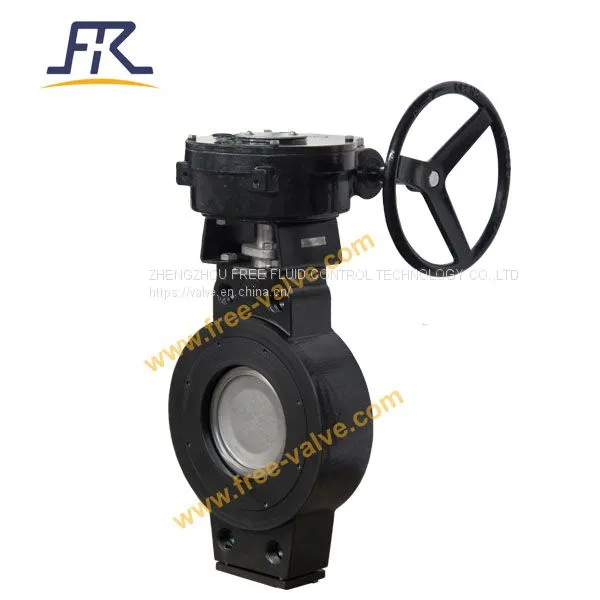

Pneumatic operation manual operation High performance Double Eccentric wafer type Butterfly Valve
- 150 Piece / Pieces per Month
- Shanghai
- T/T L/C
- 30 days
- Pneumatic Regulating Control SS304 body Ceramic Butterfly Valve for pulp & paper factory
- 150LB PN16 wafer type pneumatic actuators control butterfly valve
- DN150 6 inch PN16 rubber lined Wafer Type 304 Stainless Steel Pneumatic Air Actuator Butterfly Valve
- Pneumatic Full Ceramic Lined Double Disc Gate Valve
- Fluorine Lined Butterfly Valve
- Ceramic Lined Composite Elbow
Product Details
Brand Name: | FREE-VALVE | Place of Origin: | China | Model Number: | FRD342H |
Material: | Casting | Application: | General | Structure: | Butterfly |
Standard or Nonstandard: | Standard | Pressure: | Medium Pressure | Power: | Solenoid |
Port Size: | NPS2~NPS48 | Media: | Water | Temperature of Media: | Medium Temperature |
Packaging Details
wooden box
Product Description
FREE-VALVE’s Wafer type Double Offset High Performance Butterfly Valves are double offset structure and can be used for shut-off and throttling control.
It is divided into hard to hard sealing or hard to soft sealing with two structures according to sealing surface material of the disc and seat.The butterfly valve can realize rotary under the condition of low torque by the resilient-seated design , which means a longer service life ,so as to cost-effective of choosing actuator.
Features
1. The valve’s seat material is divided into metal seat and soft seat , which makes the valve suitable for liquid or gas service with many applications.
2. The seat can be replaced by loosening the seat ring bolts, saving the cost of the valve.
3. The resilient-seated design ensures minimal seat wear and double offset disc design provides excellent throttling capabilities ,it has characteristic of super long usage life, frictionless closure etc.
4. Blowout proof shaft design and the application of self lubricated bearings.
5. Preventing the disc from closing under over/under travel by adjusting mechanical stopper.
6. According to the requirements of medium conditions, overlaying or spray welding different sealing materials on the sealing surface of the valve disc, such as STL, tungsten carbide, Cr13.
Technical specifications
1) Size Range:NPS2~NPS48,DN50~DN1200.
2) Pressure Range:Class 150~Class 300,PN10 ~PN40.
3)Body material:Carbon steel or stainless steel
4) Seat material:PTFE and graphite PTFE ,metal
5) Working temperature≤250°C
6) Connection method:Flange, wafer.
7) Operating method:Worm gear,electric,pneumatic .
8) Pressure test:GB/T13927; API598.
9) Face to Face: GB/T12221; API609.
Applicable :
FREE-VALVE’s Wafer type Double Offset High Performance Butterfly Valves are used in chemical, petroleum, natural gas, refining, power plants,water distribution, water treatment, pre-treated ,waste water, industry and pressure management and the role of regulating valve.
Model:FRD342H
Price:100-15000USD/set
Price terms:FOB,CFR,FCA,CIF
Payment terms:TT,LC
Origin:China
Wechat:FreeValve
Email:sales@free-valve.com
