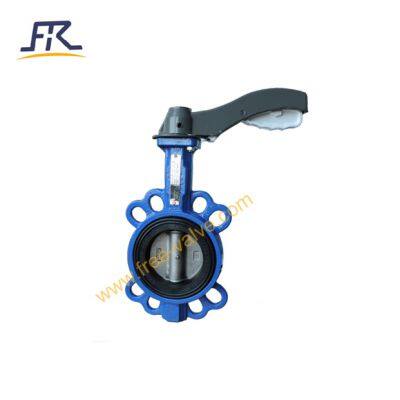

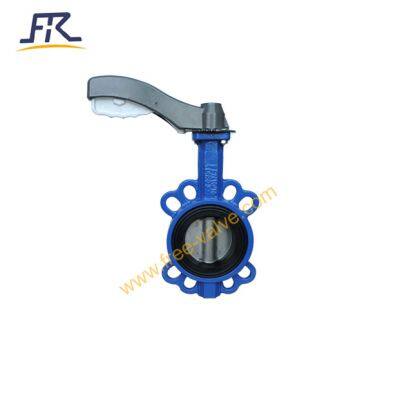

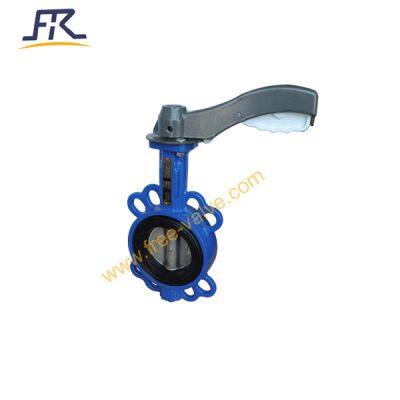

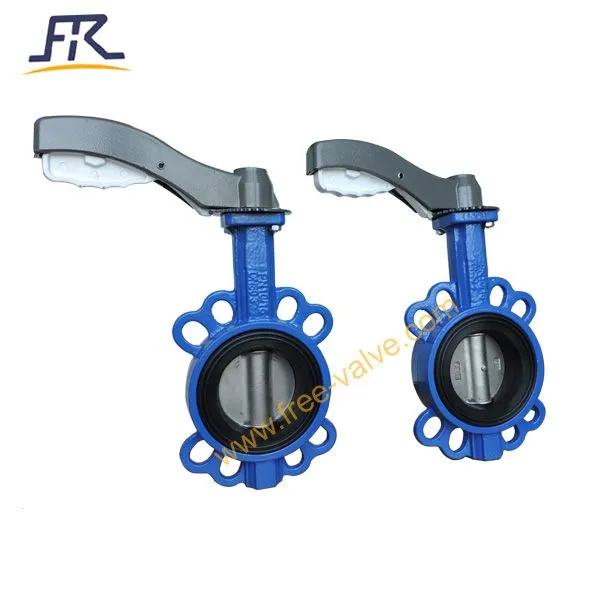

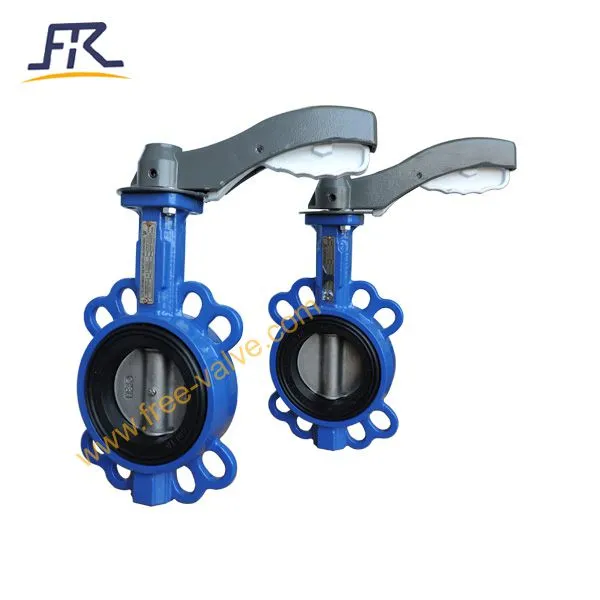

Help CenterLever Operated Wafer Resilient Butterfly Valve
Related Products
Features:
1. Excellent double side sealing functions,completely seals,zero leakage in test, it can be use for cutting off medium or regulating flow rate .
2. The simple structure, the weight is light, 90' revolves,Quickly Open and close,Fixable operation.
3. Centric disc, one piece shaft,Easy to disassemble and repair,can be installed in any position.
4. The choice of disc and seat materials to suit working conditions and medium.
Technical Specification:
1) Size Range：NPS2~NPS8,
2) Pressure Range：PN6~PN16,Class150
3) Body material：Carbon Steel/Stainless Steel/Ductile iron,Copper Alloy
4) Sealing material：EPDM
5) Body type：Wafer
6) Working temperature:≤80°C
7) Operating method：Lever Operated
8) Pressure test:GB/T13927; API598
9) Face to Face: GB/T12221; API609
Application:
FREE-VALVE’s lever operated wafer resilient butterfly valve could easily achieve Bi-Directional sealing, therefore is a widely applied valve in oilfield, agriculture,Power Plant Condensates Waterworks, Water treatment, Seawater, Exhaust,Flue Gas.Because of rubber lined body materials,it is usually used in low pressure lines.
Price:100-1000USD/set
Price terms:FOB,CFR,FCA,CIF
Payment terms:TT,LC
Origin:China
Brand :FREE-VALVE
Wechat:Free_Valve
Email:marketing@free-valve.com
Skype:marketing@free-valve.com
Whatsapp :+8613460250295
