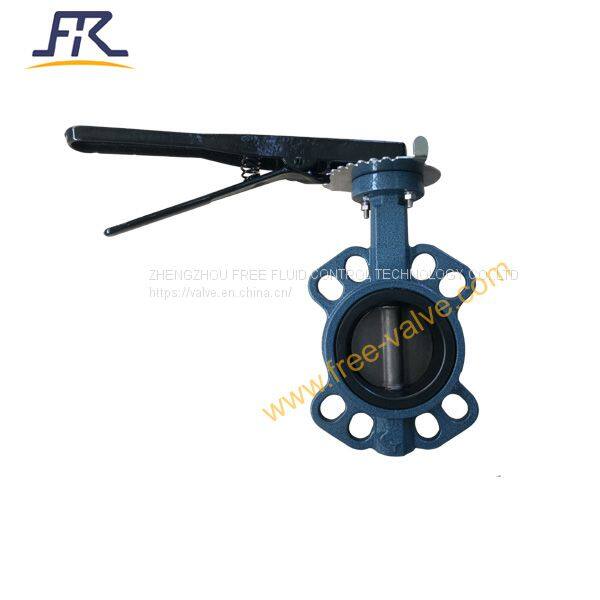

FREE-VALVE’s lever operated wafer type butterfly valve is an economical and robust valve with an rubber lining, offering longer service life with lower maintenance cost. Self-lubricating bearings ensures perfect guiding and turning of the shaft without seizure or premature wear. Flange gaskets are not required since the lining that extends onto the faces acts as a gasket. The bonded liner extends the lifetime of the valve ensuring there is no corrosion between the body and liner.
Features:
1. Excellent double side sealing functions,Completely seals,Zero leakage in test, it can be use for cut off medium or regulated flow
2. The simple structure, the weight is light, 90' revolves,Quick Open-close,Fixable operation.
3. Centric disc, one piece shaft,Easy to disassemble and repair,can be installed in any position.
4. The choice of disc and seat materials to suit working conditions and medium.
Technical Specification:
1) Size Range：NPS2~NPS8,
2) Pressure Range：PN6~PN16,Class150
3) Body material：Carbon Steel/Stainless Steel/Ductile iron,Copper Alloy
4) Sealing material：Rubber lining or PTFE lining
5) Body type：Wafer
6) Working temperature:≤200°C
7) Operating method：Lever Operated
8) Pressure test:GB/T13927; API598
9) Face to Face: GB/T12221; API609
Application:
FREE-VALVE’s lever operated wafer type butterfly valve could easily achieve Bi-Directional sealing, therefore is a widely applied valve in oilfield, agriculture,Power Plant Condensates Waterworks, Water treatment, Seawater, Exhaust,Flue Gas.Because of rubber lined body materials,it is usually used in low pressure lines.
Price:100-1000USD/set
Price terms:FOB,CFR,FCA,CIF
Payment terms:TT,LC
Origin:China
Brand :FREE-VALVE
Wechat:Free_Valve
Email:marketing@free-valve.com
Skype:marketing@free-valve.com
Whatsapp :+8613460250295
