Home > Manufacturing & Processing Machinery > Plastic Machinery > Blow Molding Machine > Blow Molding Machine for 30L to 60L Plastic Drum

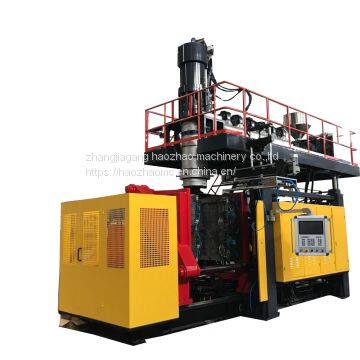

Blow Molding Machine for 30L to 60L Plastic Drum
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
ISO ,CE
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
one year
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Blow Molding Machine for 100ml to 5000ml Plastic BottlesNegotiableMOQ: 1 Set -
Blow Molding Machine for 10L to 30L Plastic DrumNegotiableMOQ: 1 Set
-
Plastic Bag Ice Pop Blow Moulding MachineNegotiableMOQ: 1
-
Injection Blow Molding Fast Respons Polycarbonate Moulding MachineUS$ 15,000 - 45,000MOQ: 1 Set
-
Plastic Blow Moulding MachinesUS$ 99 - 199MOQ: 1 Set
Certification
ISO ,CE
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
one year
Condition
New
| max container capacity | L | 60 |
| machine dimension | M | 5.3*2.4*3.8 |
| total weight | ton | 14 |
| clamping force | kn | 320 |
| platen opoening stroke | mm | 450-1050 |
| platen size | mm | 900*880 |
| max mould size | mm | 720*1200 |
| minimum mould thickness | mm | 460 |
| motor power of pump | kw | 15 |
| air pressure | mpa | 1 |
| air consumption | m3/min | 0.8 |
| total power | kw | 94 |
| average engergy consumption | kw | 56 |
| screw diameter | mm | 90 |
| screw L/D ratio | 24 | |
| plasticing capacity | kg/hr | 140 |
| number of heating zone | 4 | |
| extruder heating power | kw | 21.4 |
| extruder driving | kw | 37 |
| number of heating zone | 4 | |
| power of die head | kw | 21.3 |
| max die pin diameter | mm | 350 |
| max die capacity | L | 6.6 |
