Specifications
1.Max.volume: 2L2.Theory capacity: 1000-1800pcs/hr
3.best price and service
fessional advise
5,Blow Moulding Machine
Blow Main machine (blowert + oven) Model type Tech data
Product Spec Max. product volume(L/cav) 2
Max. preform neck size(mm) 100
Max. product diameter(mm) 180
Max. product height (mm) 300
Cavities 2
Blow molding part Die force (KN) 100
Die stroke (mm) 270
Max. mould size(mm) 390*345
Mould thickness Adjustable
Mould spacing(mm)
Max. pulling stroke(mm) 400
Operation pressure(Mpa) 0.8-1.0
Operation air pressure consumption
(1tr/min) 200
Blow pressure(Mpa) 1.2-2.8
Blow air pressure consumption (1tr/min) 300
Output(pcs/h) 1000-1800
Machine size(LxWxH)(m) 1.46*0.58*1.8
Machine weight(KG) 650
Oven Temperature grade(rate) 8
Heating time(S) 90-200
Voltage(V) 220 or as your request
Frequency(HZ) 50/60
Total power(KW) 16
Oven Size (LxWxH) 1.35*0.55*1.15
Oven weight (KG) 300

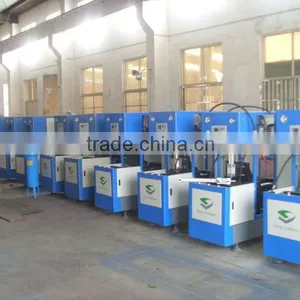

Semi-automatic blow moulding machine
Use integated mic computer controler,with OMRON control chip,the response speed is very quickly and the timing very precisely.Use life durable and failture rate very low.It’s the revolutionary product of industrial control.
High responsiveness pneumatic components,action timely and precisely
Thorough safe operation mechanism,start-up with two hands,avoid the accident during the operation
Infrarted heating technology,safe and energy conservation,no pollution of the environment.With the 8 rates adjustable temperature controler,make the temperature suitable for blowing.
Compound die Part
Technology advantage:
Special design,high rigid compound die structure
Wide adaptability, suitable for every type mould thickness
Adjust convenience
No mould rolling out
More energy conservation,no need much air supply
High burnish principal axis, with very precise polishing, light action and low noise.
Short mould stroke,quick action
All ZG45 casting, with long timing process,very small transformation,can meet your precise request 100%
Hig dead-weigh, ensure the steady during the opeartion
Auxiliary device Required Spec Tech data
High pressure air compressor Operation air pressure 2.5 Mpa
Air displacement 2.0 m3/min
Power 22 Kw
Weight 1300kg
Low pressure air compressor Operation air pressure 0.8
Air displacement 2 Mpa
Power 11 m3/min
Weight 800 Kw
Air filter (oil-water separator ) Filter precision ≤5ppm
Weight 200Kg
