Home > Manufacturing & Processing Machinery > Plastic Machinery > Blow Molding Machine > Blow Molding Machine for 10L to 30L Plastic Drum

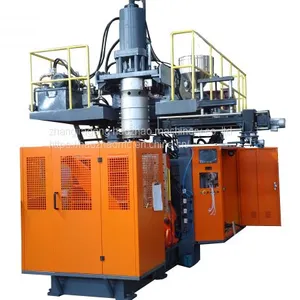

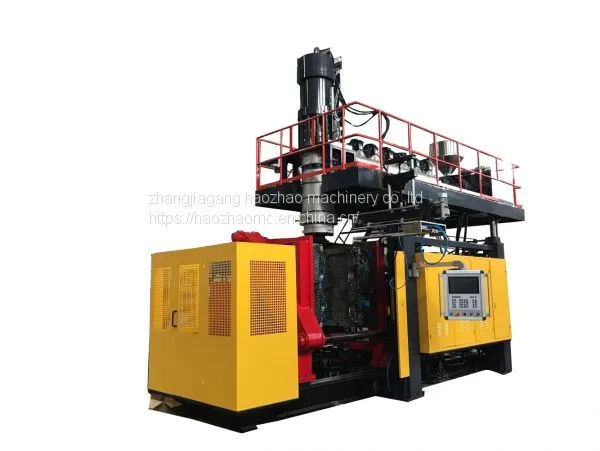

Blow Molding Machine for 10L to 30L Plastic Drum
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
ISO ,CE
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
one year
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Blow Molding Machine for 30L to 60L Plastic DrumNegotiableMOQ: 1 Set -
Blow Molding Machine for 100ml to 5000ml Plastic BottlesNegotiableMOQ: 1 Set
-
Plastic Bag Ice Pop Blow Moulding MachineNegotiableMOQ: 1
-
Injection Blow Molding Fast Respons Polycarbonate Moulding MachineUS$ 15,000 - 45,000MOQ: 1 Set
-
Plastic Blow Moulding MachinesUS$ 99 - 199MOQ: 1 Set
Certification
ISO ,CE
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
one year
Condition
New
| max container capacity | L | 30 |
| machine dimension | M | 4.8*2.3*3.5 |
| total weight | ton | 12 |
| clamping force | kn | 230 |
| platen opoening stroke | mm | 400-900 |
| platen size | mm | 900*780 |
| max mould size | mm | 600*1000 |
| minimum mould thickness | mm | 410 |
| motor power of pump | kw | 11 |
| air pressure | mpa | 1 |
| air consumption | m3/min | 0.8 |
| total power | kw | 76 |
| average engergy consumption | kw | 45 |
| screw diameter | mm | 80 |
| screw L/D ratio | 24 | |
| plasticing capacity | kg/hr | 100 |
| number of heating zone | 4 | |
| extruder heating power | kw | 20.2 |
| extruder driving | kw | 30 |
| number of heating zone | 4 | |
| power of die head | kw | 15.2 |
| max die pin diameter | mm | 250 |
| max die capacity | L | 5 |
