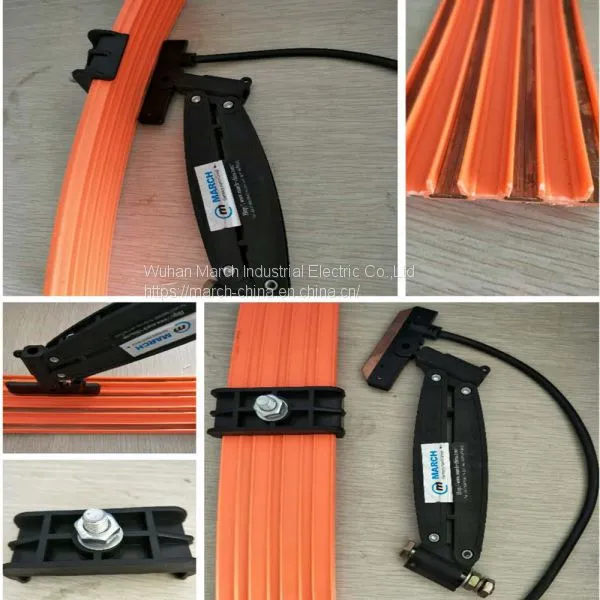

March 3p 4p 6p Electrical Equipment Supplies 50A-140A Flexible Electric Busbar
US$ 5.8 - 8.8
MOQ: 100 Meters
Key Specifications
Get Latest Price
Brand Name:
March
Place of Origin:
China
Model Number:
WJF-4
Payment & Shipping
Payment Methods:
Port of Shipment:
wuhan,shanghai,shenzhen,guangzhou
Delivery Detail:
10 days
Related Products
-
March Overhead Crane 50A-140A Flexible Electric Busbar High Tro Reel System BarUS$ 5.8 - 8.8MOQ: 100 Meters -
March Electrical Equipment Supplies 50A-140A Flexible Electric BusbarUS$ 5.8 - 8.8MOQ: 100 Meters
-
March MCCB High Quality 60a High Tro Reel Current Collector for Ovearhead CranesUS$ 16.8 - 26.8MOQ: 1 Set
-
March 50A-140A Flexible Electric Busbar Electrical Copper Bus Bar Electric Rail Ceiling for SaleUS$ 5.8 - 8.8MOQ: 100 Meters
-
March 4P Seamless Conductor Bus Bar Electrical Equipment SuppliesUS$ 5.8 - 8.8MOQ: 100 Meters
Brand Name
March
Place of Origin
China
Model Number
WJF-4
March 3p 4p 6p electrical equipment supplies 50A-140A Flexible electric busbar
Product Description
With the infreasing degree of FMS, unmanned factory and equipment automation, the miniaturization of the conductor rail system, ease of installation and high-speed stabilety are extremely important. To meet the needs of the market development, we have successfully developed the seamless confuctor rail system. The system has the follow advanges:
Run smoothly
High speed
Low noise
Powered way arbitrariness
March 3p 4p 6p electrical equipment supplies 50A-140A Flexible electric busbar specifications
| Type | Poles | Conductor cross section(mm2) | Max. Current(A) | Order No. |
| WJF-4-10/50A | 4 | 4*10mm2 | 50A | 224001 |
| WJF-4-15/80A | 4 | 3*15mm2+1*10mm2 | 80A | 224004 |
| WJF-4-20/100A | 4 | 3*20mm2+1*10mm2 | 100A | 224005 |
| WJF-4-25/120A | 4 | 3*25mm2+1*12.5mm2 | 120A | 224006 |
| WJF-4-35/140A | 4 | 3*35mm2+1*15mm2 | 140A | 224007 |
Rating:4P 660V 50A-140A
Conductor material: Copper
Insulation jacket material: Rigid PVC (heat resistance: 75℃
Dangerous color: Orange
Accessories
March 3p 4p 6p electrical equipment supplies 50A-140A Flexible electric busbar
| Hanger Clamp | ||||
| Type | Model | Weight(kg) | Material | Order No. |
| DJ230012 | 3P 50A-120Afor | 0.07 | Plastic | 230012 |
| DJ230022 | 3P 140Afor | 0.068 | Plastic | 230022 |
| DJ230013 | 4P 50A-120Afor | 0.08 | Plastic | 230013 |
| DJ230023 | 4P 140Afor | 0.078 | Plastic | 230023 |
| Jointing Box( Ling Feeding) | ||||
| Type | Model | Rating | Weight(kg) | Order No. |
| WJT230014 | 3P bended joints | 3P 660V100A | 0.2 | 230014 |
| WJT230024 | 4p bended joints | 4P660V100A | 0.25 | 230024 |
| Current Collectors dates | |||||
| Type | Rating | Material | Weight(kg) | Order-No. | Remark |
| JDQ230015 | 660V60A | Plastic & Carbon | 0.17 | 230015 | Phase |
| JDQ230025 | 660V60A | Plastic & Carbon | 0.17 | 230025 | Ground |
| JDQ230016 | 660V120A | Plastic & Carbon | 0.34 | 230016 | Phase |
| JDQ230026 | 660V120A | Plastic & Carbon | 0.34 | 230026 | Ground |
| Towing Bracket | ||||
| Type | Model | Material | Weight(kg) | Order No. |
| QYB240011 | 3P | Galvanized Steel | 0.122 | 240011 |
| QYB240012 | 4P | Galvanized Steel | 0.168 | 240012 |
| End Tensioner( End feeding) | |||||
| Type | Model | Rating | Weight(kg) | Order No. | |
| LJQ250011 | 3P | No electronic end | 3P660V120A | 1.6 | 250011 |
| LJQ250012 | 3P | with electronic end | 3P660V120A | 1.95 | 250012 |
| LJQ250013 | 4P | No electronic end | 4P660V120A | 2.05 | 250013 |
| LJQ250014 | 4P | with electronic end | 4P660V120A | 2.25 | 250014 |
| LJQ250015 | 3P | No electronic end | 3P660V140A | 1.75 | 250015 |
| LJQ250016 | 3P | with electronic end | 3P660V140A | 2.1 | 250016 |
| LJQ250017 | 4P | No electronic end | 4P660V140A | 2.25 | 250017 |
| LJQ250018 | 4P | with electronic end | 4P660V140A | 2.45 | 250018 |
| Towing Arm | ||||
| Type | Model | Material | Weight(kg) | Order No. |
| QYB260011 | 3P | Galvanized Steel | 0.58 | 260011 |
| QYB260012 | 4P | Galvanized Steel | 0.65 | 260012 |
| Carbon Brush | ||||
| Type | Model | Material | Weight(kg) | Order No. |
| DS270011 | For collector | Plastic & Carbon | 0.075 | 270011 |
