Home > Products > seamless bar > March overhead crane 4P High tro reel system bar Flexible Insulated Seamless Bar for hoists

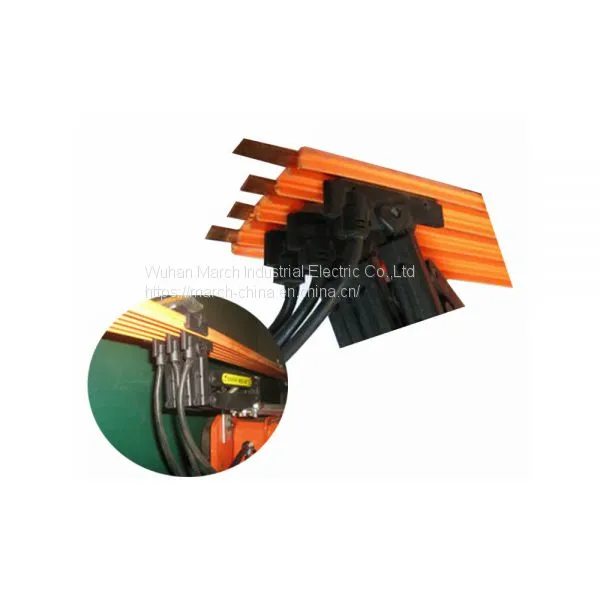

March overhead crane 4P High tro reel system bar Flexible Insulated Seamless Bar for hoists
USD $5.8 - $8.8
/ Meter
100 Meters(Min.Order)
- 100000 Meter / Meters per Month
- wuhan,shanghai,shenzhen,guangzhou
- T/T L/C Credit Card Other
- 10 days
You May Like
Product Details
| Brand Name: | March | Place of Origin: | China | Model Number: | WJF-4 |
Product Description
March overhead crane 4P High tro reel system bar Flexible Insulated Seamless Bar for hoists
Descriptions
With the infreasing degree of FMS, unmanned factory and equipment automation, the miniaturization of the conductor rail system, ease of installation and high-speed stabilety are extremely important. To meet the needs of the market development, we have successfully developed the seamless confuctor rail system. The system has the follow advanges:
Run smoothly
High speed
Low noise
Powered way arbitrariness
March overhead crane 4P High tro reel system bar Flexible Insulated Seamless Bar for hoists specifications
| Type | Poles | Conductor cross section(mm2) | Max. Current(A) | Order No. |
| WJF-4-10/50A | 4 | 4*10mm2 | 50A | 224001 |
| WJF-4-15/80A | 4 | 3*15mm2+1*10mm2 | 80A | 224004 |
| WJF-4-20/100A | 4 | 3*20mm2+1*10mm2 | 100A | 224005 |
| WJF-4-25/120A | 4 | 3*25mm2+1*12.5mm2 | 120A | 224006 |
| WJF-4-35/140A | 4 | 3*35mm2+1*15mm2 | 140A | 224007 |
Rating:4P 660V 50A-140A
Conductor material: Copper
Insulation jacket material: Rigid PVC (heat resistance: 75℃
Dangerous color: Orange
Accessories
March overhead crane 4P High tro reel system bar Flexible Insulated Seamless Bar for hoists
| Hanger Clamp | ||||
| Type | Model | Weight(kg) | Material | Order No. |
| DJ230012 | 3P 50A-120Afor | 0.07 | Plastic | 230012 |
| DJ230022 | 3P 140Afor | 0.068 | Plastic | 230022 |
| DJ230013 | 4P 50A-120Afor | 0.08 | Plastic | 230013 |
| DJ230023 | 4P 140Afor | 0.078 | Plastic | 230023 |
| Jointing Box( Ling Feeding) | ||||
| Type | Model | Rating | Weight(kg) | Order No. |
| WJT230014 | 3P bended joints | 3P 660V100A | 0.2 | 230014 |
| WJT230024 | 4p bended joints | 4P660V100A | 0.25 | 230024 |
| Current Collectors dates | |||||
| Type | Rating | Material | Weight(kg) | Order-No. | Remark |
| JDQ230015 | 660V60A | Plastic & Carbon | 0.17 | 230015 | Phase |
| JDQ230025 | 660V60A | Plastic & Carbon | 0.17 | 230025 | Ground |
| JDQ230016 | 660V120A | Plastic & Carbon | 0.34 | 230016 | Phase |
| JDQ230026 | 660V120A | Plastic & Carbon | 0.34 | 230026 | Ground |
| Towing Bracket | ||||
| Type | Model | Material | Weight(kg) | Order No. |
| QYB240011 | 3P | Galvanized Steel | 0.122 | 240011 |
| QYB240012 | 4P | Galvanized Steel | 0.168 | 240012 |
| End Tensioner( End feeding) | |||||
| Type | Model | Rating | Weight(kg) | Order No. | |
| LJQ250011 | 3P | No electronic end | 3P660V120A | 1.6 | 250011 |
| LJQ250012 | 3P | with electronic end | 3P660V120A | 1.95 | 250012 |
| LJQ250013 | 4P | No electronic end | 4P660V120A | 2.05 | 250013 |
| LJQ250014 | 4P | with electronic end | 4P660V120A | 2.25 | 250014 |
| LJQ250015 | 3P | No electronic end | 3P660V140A | 1.75 | 250015 |
| LJQ250016 | 3P | with electronic end | 3P660V140A | 2.1 | 250016 |
| LJQ250017 | 4P | No electronic end | 4P660V140A | 2.25 | 250017 |
| LJQ250018 | 4P | with electronic end | 4P660V140A | 2.45 | 250018 |
| Towing Arm | ||||
| Type | Model | Material | Weight(kg) | Order No. |
| QYB260011 | 3P | Galvanized Steel | 0.58 | 260011 |
| QYB260012 | 4P | Galvanized Steel | 0.65 | 260012 |
| Carbon Brush | ||||
| Type | Model | Material | Weight(kg) | Order No. |
| DS270011 | For collector | Plastic & Carbon | 0.075 | 270011 |
