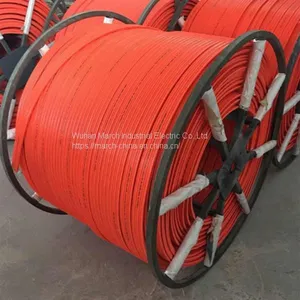

March Electrical Equipment Supplies 50A-140A Flexible Electric Busbar
US$ 5.8 - 8.8
MOQ: 100 Meters
Key Specifications
Get Latest Price
Brand Name:
March
Place of Origin:
China
Model Number:
WJF-4
Payment & Shipping
Payment Methods:
Port of Shipment:
wuhan,shanghai,shenzhen,guangzhou
Delivery Detail:
10 days
Related Products
-
March MCCB High Quality 60a High Tro Reel Current Collector for Ovearhead CranesUS$ 16.8 - 26.8MOQ: 1 Set -
March 50A-140A Flexible Electric Busbar Electrical Copper Bus Bar Electric Rail Ceiling for SaleUS$ 5.8 - 8.8MOQ: 100 Meters
-
March 4P Seamless Conductor Bus Bar Electrical Equipment SuppliesUS$ 5.8 - 8.8MOQ: 100 Meters
-
March Moverable Device 3p 4p 6p Seamless Conductor Busbar Copper for Jib Crane and Gantry CraneUS$ 5.8 - 8.8MOQ: 100 Meters
-
March 60A-120A Crane Busbar Current Collector Carbon Brush Power ToolsUS$ 16.8 - 26.8MOQ: 1 Piece
Brand Name
March
Place of Origin
China
Model Number
WJF-4
March electrical equipment supplies 50A-140A Flexible electric busbar
Descriptions
With the infreasing degree of FMS, unmanned factory and equipment automation, the miniaturization of the conductor rail system, ease of installation and high-speed stabilety are extremely important. To meet the needs of the market development, we have successfully developed the seamless confuctor rail system. The system has the follow advanges:
Run smoothly
High speed
Low noise
Powered way arbitrariness
March electrical equipment supplies 50A-140A Flexible electric busbar specifications
| Type | Poles | Conductor cross section(mm2) | Max. Current(A) | Order No. |
| WJF-4-10/50A | 4 | 4*10mm2 | 50A | 224001 |
| WJF-4-15/80A | 4 | 3*15mm2+1*10mm2 | 80A | 224004 |
| WJF-4-20/100A | 4 | 3*20mm2+1*10mm2 | 100A | 224005 |
| WJF-4-25/120A | 4 | 3*25mm2+1*12.5mm2 | 120A | 224006 |
| WJF-4-35/140A | 4 | 3*35mm2+1*15mm2 | 140A | 224007 |
Rating:4P 660V 50A-140A
Conductor material: Copper
Insulation jacket material: Rigid PVC (heat resistance: 75℃
Dangerous color: Orange
Accessories
March electrical equipment supplies 50A-140A Flexible electric busbar
| Hanger Clamp | ||||
| Type | Model | Weight(kg) | Material | Order No. |
| DJ230012 | 3P 50A-120Afor | 0.07 | Plastic | 230012 |
| DJ230022 | 3P 140Afor | 0.068 | Plastic | 230022 |
| DJ230013 | 4P 50A-120Afor | 0.08 | Plastic | 230013 |
| DJ230023 | 4P 140Afor | 0.078 | Plastic | 230023 |
| Jointing Box( Ling Feeding) | ||||
| Type | Model | Rating | Weight(kg) | Order No. |
| WJT230014 | 3P bended joints | 3P 660V100A | 0.2 | 230014 |
| WJT230024 | 4p bended joints | 4P660V100A | 0.25 | 230024 |
| Current Collectors dates | |||||
| Type | Rating | Material | Weight(kg) | Order-No. | Remark |
| JDQ230015 | 660V60A | Plastic & Carbon | 0.17 | 230015 | Phase |
| JDQ230025 | 660V60A | Plastic & Carbon | 0.17 | 230025 | Ground |
| JDQ230016 | 660V120A | Plastic & Carbon | 0.34 | 230016 | Phase |
| JDQ230026 | 660V120A | Plastic & Carbon | 0.34 | 230026 | Ground |
| Towing Bracket | ||||
| Type | Model | Material | Weight(kg) | Order No. |
| QYB240011 | 3P | Galvanized Steel | 0.122 | 240011 |
| QYB240012 | 4P | Galvanized Steel | 0.168 | 240012 |
| End Tensioner( End feeding) | |||||
| Type | Model | Rating | Weight(kg) | Order No. | |
| LJQ250011 | 3P | No electronic end | 3P660V120A | 1.6 | 250011 |
| LJQ250012 | 3P | with electronic end | 3P660V120A | 1.95 | 250012 |
| LJQ250013 | 4P | No electronic end | 4P660V120A | 2.05 | 250013 |
| LJQ250014 | 4P | with electronic end | 4P660V120A | 2.25 | 250014 |
| LJQ250015 | 3P | No electronic end | 3P660V140A | 1.75 | 250015 |
| LJQ250016 | 3P | with electronic end | 3P660V140A | 2.1 | 250016 |
| LJQ250017 | 4P | No electronic end | 4P660V140A | 2.25 | 250017 |
| LJQ250018 | 4P | with electronic end | 4P660V140A | 2.45 | 250018 |
| Towing Arm | ||||
| Type | Model | Material | Weight(kg) | Order No. |
| QYB260011 | 3P | Galvanized Steel | 0.58 | 260011 |
| QYB260012 | 4P | Galvanized Steel | 0.65 | 260012 |
| Carbon Brush | ||||
| Type | Model | Material | Weight(kg) | Order No. |
| DS270011 | For collector | Plastic & Carbon | 0.075 | 270011 |
Company Information
Packaging & Shipping
how to order
FAQ
| 1:what's your advantages : |
| Direct Professional Factory , High Quality ,Low Price , Best Choice for you . |
| 2.Can I get some sample? |
| Yes, Free samples will be pleasantly offered to you to check the quality before placing the order. |
| 3: Is small order accepted? |
| Yes, a small order is accepted.You can take a trial order first, then we will try our best to earn your trust, for what we want is a long-term cooperation in the future! |
| 4: Can you guarantee the quality? |
| Yes, we can, you can pay the balance after checking the quality of the finished goods. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be carefully inspected before it's packed for shipment. |
| 5:Can you accept visiting the factory? |
| Yes, welcome to visit our factory in Xinxiang city, Henan Province, China! We will book hotel and arrange pick up and host you . |
| 6:What's your trade terms? |
| It is as per customers' request: FOB Chinese seaport/ CIF destination port or other trade terms can be accepted. |
| 7:What's your payment terms? |
| A: FOB: 30%T/T deposit, 70%T/T before the delivery of goods. |
| 8:Does the packaging safe and arrive in good conditions? |
| Yes, Safe packing is guaranteed. All goods will arrive your door under good conditions. |
