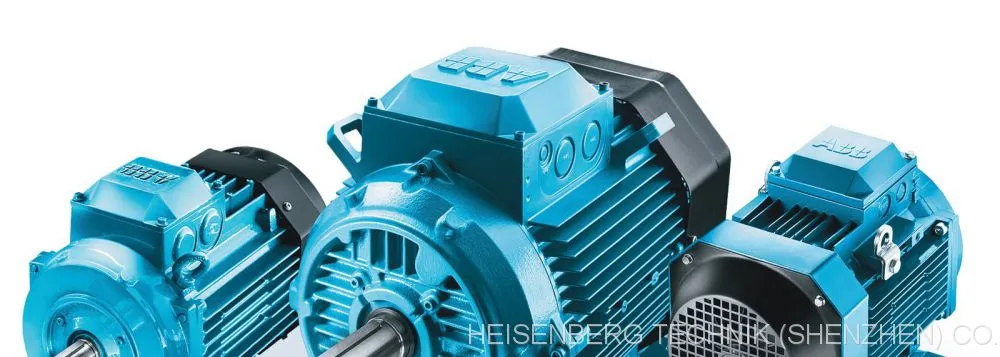

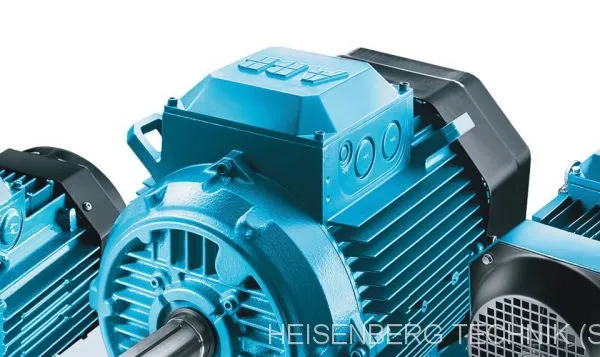

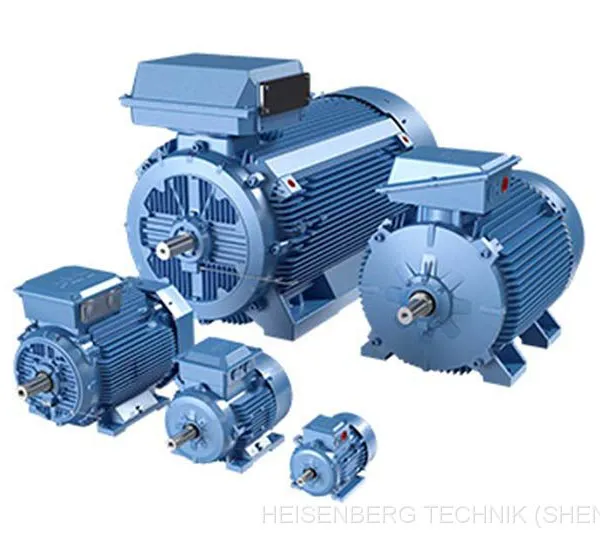

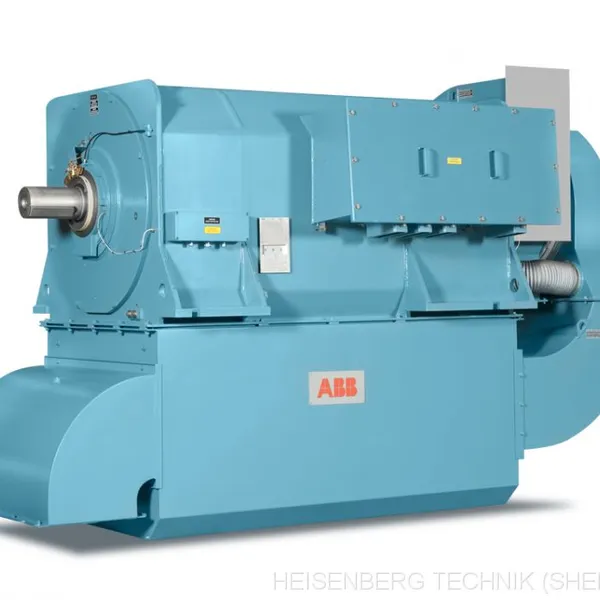

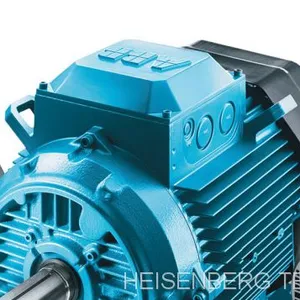

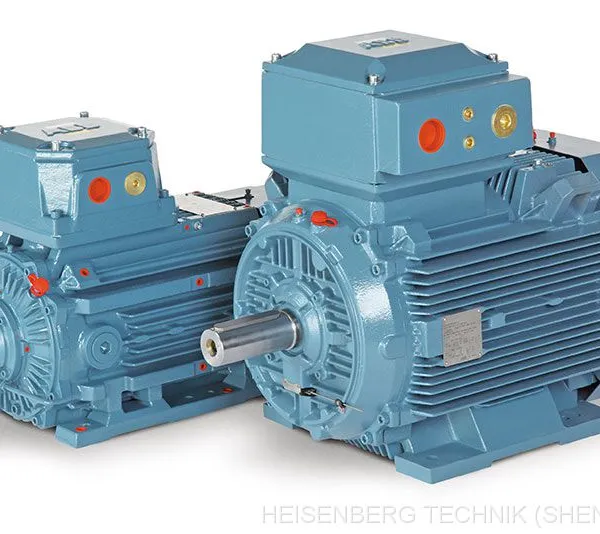

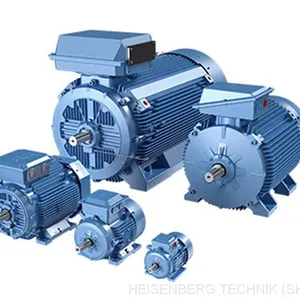

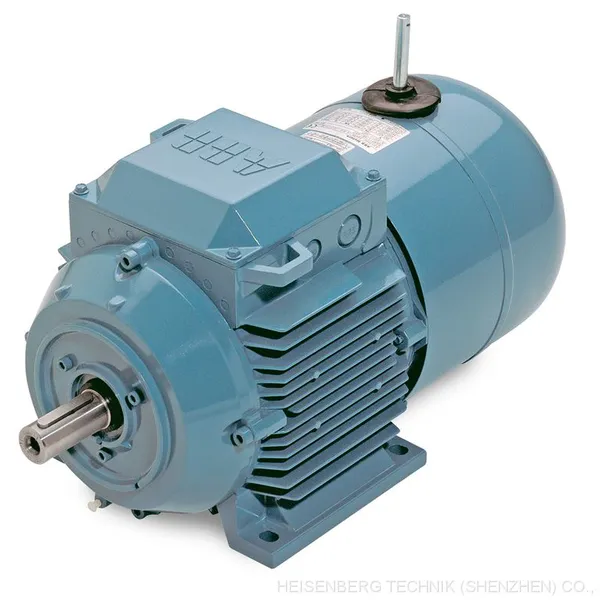

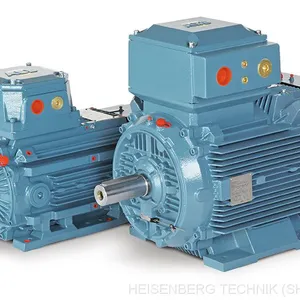

Help CenterABB High-efficiency Motor M2BAX 315MC4
Related Products
Overview
The M2QA three-phase asynchronous motor is the basic series in the 2000 series products designed by ABB, and it meets the European Community || class efficiency standard. Motors are designed and manufactured in accordance with IEC 60034, IEC60072, DIN 42673, BS 4999, GB755, GB 10069 and Q/JBQS 27. M2QA series motors have good electrical and mechanical properties.
Power, power, frequency:
Working voltage: 220-240V 380-420V 660-690V Rated frequency: 50/60Hz
Installation method: horizontal B3, vertical (flange installation) B5, vertical and horizontal B35
Working mode: continuous (S1)
Protection class: IP55
Insulation class: F (class B insulation products are available upon request)
The altitude does not exceed 1000m,
Ambient temperature -15℃-- +40℃
Features:
The junction box and the oil filling hole are located on the top of the motor, which is convenient for the maintenance of the installation box
1.1KW-90KW 2P 4P motor under S1 working system,
The M2QA series reaches the CEMEP-EU Class II efficiency standard and has a good energy saving effect.
The motor is designed to resist environmental corrosion to maintain a long life.
The configuration of deep groove ball bearings greatly prolongs the life of the motor.
The optimized cooling system, electromagnetic and electrical design ensure the overall low noise level of the M2QA series.
Winding protection accessories such as PTC thermistor, thermal switch and anti-condensation heating belt can be installed according to customer requirements.
