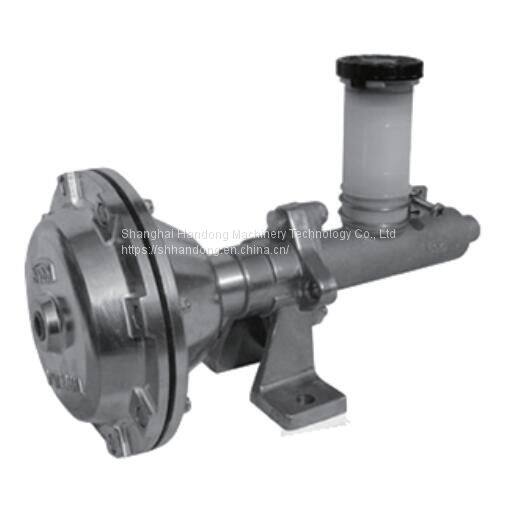

Supplying Air Hydraulic Booster BST-4 With Four Times Braking Power

Supplying air hydraulic booster BST-4 with four times braking power

BST-2 and BST-4 two models air hydraulic booster is driven by air pressure. After inputting air pressure, it will amplify connected hydraulic brake's oil pressure, then making brake's braking power larger in some times.

BST hydraulic booster is usually matches with hydraulic brake DBM, it is through enhance air pressure to hydraulic brake's oil pressure in some times. There are two models of this booster: BST-2 and BST-4. BST-2 is equiped with 2# air cylinder head, so it will make hydraulic brake's braking force in twice. BST-4 is equiped with 4# air cylinder head, so it can make hydraulic brake's braking force in quadruple.

This air oil transformer is through increasing air pressure to enhance hydraulic brake's oil pressure, so as to enhance hydraulic brake's braking force, it can save brake's usage cost and improve working efficiency.

BST Air booster matches with DBM oil brake, transfering the air pressure to oil pressure. BST hydraulic booster usually cooperated with DBM model hydraulic brake for working together, this booster will make the hydraulic brake's braking force in twice or fourfold.

There are two models of air oil pressure booster: BST-2, BST-4. They are equiped with 2" cylinder head and 4" cylinder head in separately. So they amplify the hydraulic brake's braking force in twice and quadruple in relevantly. Through connecting this air booster with hydraulic brake, increase braking force greatly, it is economic, environment protect and convenient.

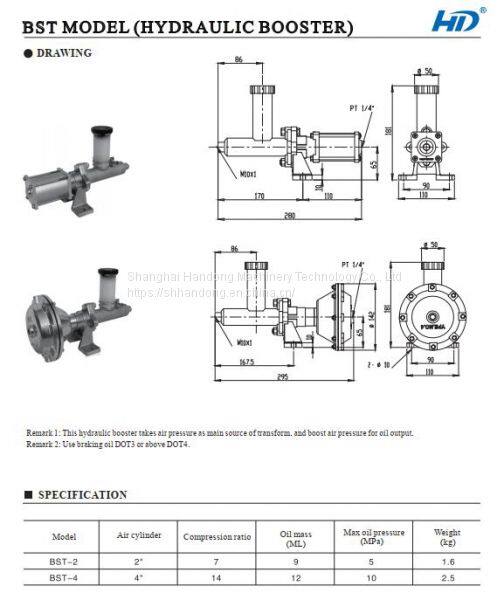

This is the structure and specification of this hydraulic booster for your reference:

This hydraulic booster is taken air pressure as power resource, it through increase air pressure transformed to oil pressure, so as to amplify hydraulic brake's braking force.

This air oil pressure transform booster BST is usually matched with DBM model hydraulic brake, it used to increase the brake's braking torque. This BST and DBM coupling is extensive applied in amusement park ride, building construction machine, centrifugal machine, canning machine, cranes, electrical equipment, flood gate water treatment, iron making machine, machine tool, wind/hydraulic force machine, paper processing machine, power machine, rubber machine, railway car, wire rod machine, automatic labor-saving machine, common trolley, chemical machine, conveyor, elevator, textile machine, environment machine, lift, elevator, automatic packaging machine, plastic machine, press machine, robot machine, vessel, vehicle, windmill and etc.

Hydraulic booster connected with oil brake via a transparent pipe. Different model of hydraulic booster, its increase force is different. For this BST-2 booster, it can increase oil brake's braking force in twice. So as to save energey and protect the environment.

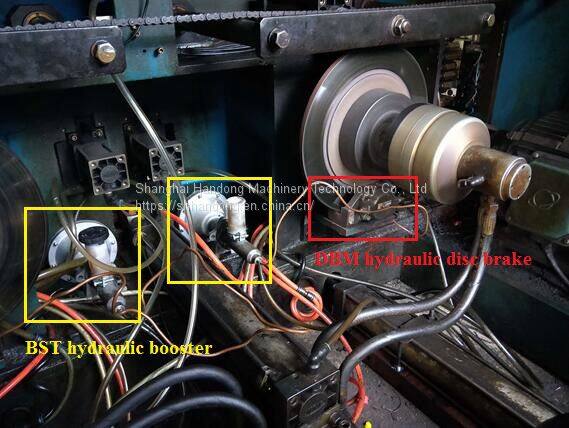

In above case, BST-4 hydraulic booster and DBM hydraulic brake are used in oil box. After inputting air source into BST hydraulic booster, it will transform the air pressure to oil pressure, then making hydraulic brake's braking force in quadruple. It is easy operation and save energy. As usually, matched hydraulic brake braking oil used DOT3 or DOT4. BST hydraulic booster and DBM hydraulic brake connected via a transparent plastic pipe directly.
