Small Braking Torque Pneumatic Brake DBF

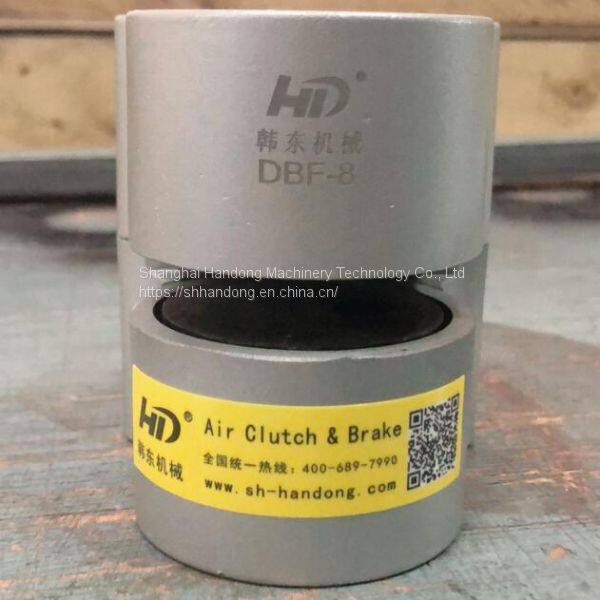

Small Braking Torque Pneumatic Brake DBF photo-1
US$ 50 - 100 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Handong HD
Place of Origin:
China
Model Number:
DBF-8, DBF-10, DBF-15
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Handong HD
Place of Origin China
Model Number DBF-8, DBF-10, DBF-15

Small braking torque pneumatic brake DBF


DBF compressor air disc brake is a small pneumatic brake, so its braking force is not large. When there is no air source input, this brake is in released status; after supplying air pressure, this brake's up & down braking pads forward and clamp friction disc for stopping. There are three models of it: DBF-8, DBF-10 and DBF-15, they are used to clamp braking disc thickness is 8mm, 10mm and 15mm in seperately.


Pneumatic caliper disc brake DBF is a small size friction type brake. Its bottom is stationary, can be installed in different ways. Although its size is small, but it is very flexible, it can be install certain pieces of brakes on a disc, then torque also can be enlarge along with it in certain time.

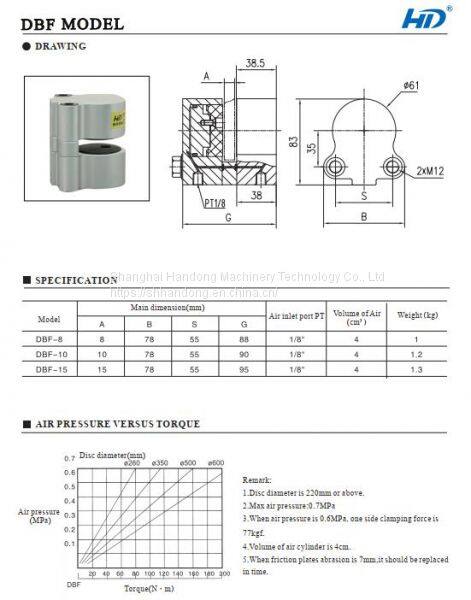

There are three models of this DBF compressor air disc brake: DBF-8, DBF-10, DBF-15. Different model of this brake, its braking force is different, too. Following is the detail technical data of this brake:

This caliper disc brake is widely applied in rubber tire machine, flexo machine, wire winch machine, wire and cable machine, packing machine, printing machine and etc. They can be used in some pieces together.

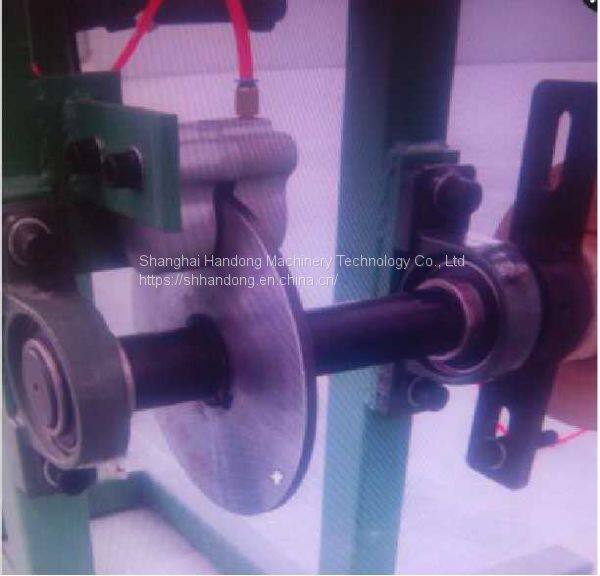

In this case, DBF air caliper disc brakes are used for textile machine, one set of air caliper disc brake braking one steel plate. After inputting air source, DBF brake will clamp steel disc and making steel disc stopped.

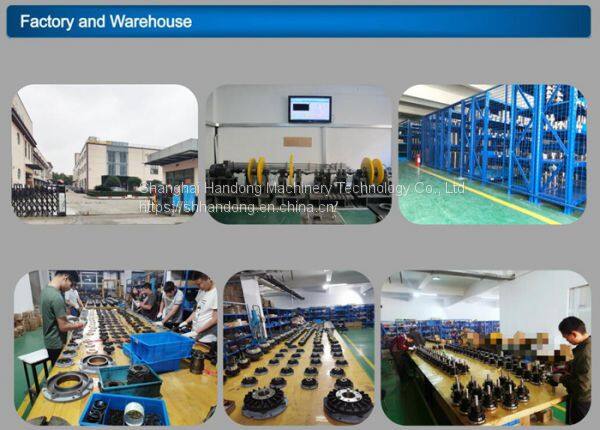

Factory and warehouse

Products packed and dispatched

Certificate





Product Tags: air caliper disc brake DBF , air small torque disc brake , stationary botton disc brake , DBF-8 flexible caliper disc brake , DBF-10 air friction brake , DBF-15 small size disc brake , air source caliper brake , small braking disc brake , brake with friction pads
