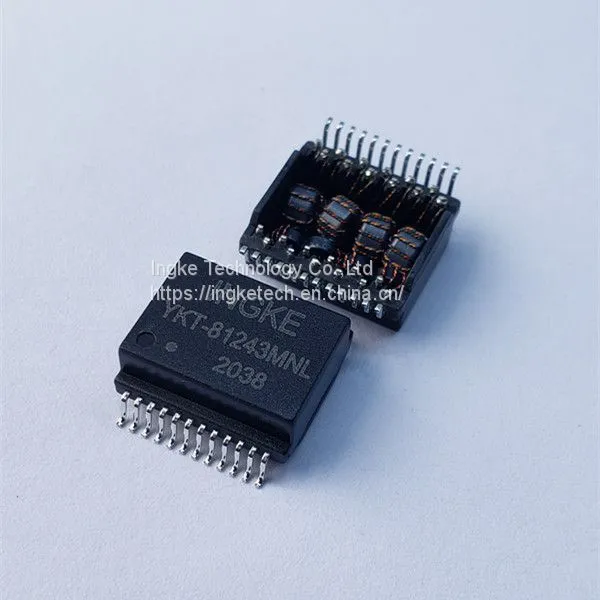

INGKE YKT-81243MNL Direct Substitute Pulse H7019FNL 10G Base-T Transformer Lan

INGKE YKT-81243MNL Direct Substitute Pulse H7019FNL 10G Base-T Transformer Lan

Pulse Part number:H7019FNL

Made in China:YKT-81243MNL

Supply Ability:1500K-PCS/Month

Packaging:Cut Tape (CT)

Transformer Type:LAN 10G Base-T

Inductance:200µH

Turns Ratio - Primary:Secondary 1:1

Mounting Type:Surface Mount

Size / Dimension:0.540" L x 0.6" W (13.7mm x 15.2mm)

Height - Seated (Max):0.225" (5.72mm)

Operating Temperature:-40°C ~ 85°C

Flammability Rating:UL 94 V-0

Manufacturer: Ingke Technology Co.,Ltd

Our service:

 1).Free sample is available!

 2).OEM & ODM orders are welcomed.

 3).We offer after-sale service for 8 years.

Our Advantage:

 (1).OEM factory for Connector more than 10 years.

 (2).Cost reduction, lead time within 1 week, FREE samples.

(3).After sales services 24*7 to help you solve any kind of problems

(4).Factory in central province of China, the products has been improved in Mechanical properties, electrical properties and environmental performance for 10-15%,moreover the price are more competitive for 5-10% over the market

(5).Main advantage products: 10G ICM and M8 connector(Vendor of ST and Qualcomm)

Ingke Technology Mass production of the following models;

HX1339NL H5187NL HM6098NL HM1193NL HX1333NL HX5120NLT H6062FNLT HM2113ZNLT HM2103NLT HM2102NLT H6096NL HX5004ENL HX1098NL HM1188NLT HX5149NL HX2326FNLT HX6098FNLT HX6080NL H5G1002NL H6080FNL H6062FNL H6062NLT HX5181NL HX1217NL HX2260NLT HX6062FNL HX1148NLT
