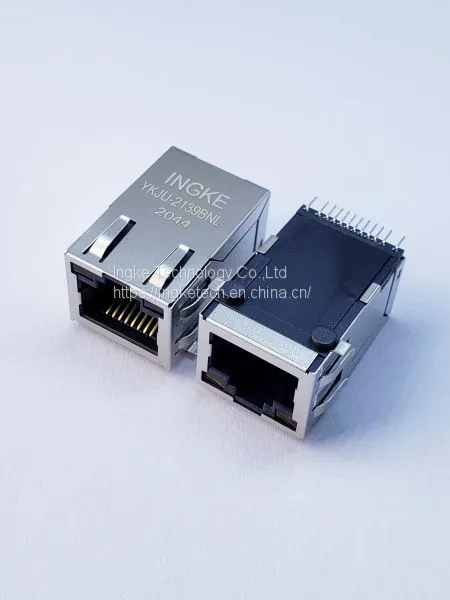

INGKE YKJU-2139BNL Direct Substitute 74980111211 1 Port 100 Base-T Surface Mount RJ45 Magjack Connector
Part Number:74980111211
Made in China:YKJU-2139BNL
Original Manufacturer:Ingke Technology
Supply Ability:5500K-PCS/Month
Product Category:Modular Connectors / Ethernet Connectors
Packaging:Tray
Connector Type:RJ45
Number of Ports:1
Number of Rows:1
Applications:10/100 Base-T, AutoMDIX
Mounting Type:Surface Mount
Orientation:90° Angle (Right)
Termination:Solder
LED Color:Yellow - Green
Number of Cores per Jack:4
Shielding:Shielded, EMI Finger
Features:Board Guide, Solder Retention
Tab Direction:Up
Contact Material:Copper Alloy
Contact Finish:Gold
Operating Temperature:-40℃~85℃
Contact Finish Thickness:30µin (0.76µm)
Flammability Rating:UL 94 V-0
Shield Material:Copper Ally
Housing Material:Thermoplastic
Manufacturer: Ingke Technology Co.,Ltd
Our service:
1).Free sample is available!
2).OEM & ODM orders are welcomed.
3).We offer after-sale service for 8 years.
Our Advantage:
(1).OEM factory for Connector more than 10 years.
(2).Cost reduction, lead time within 1 week, FREE samples.
(3).After sales services 24*7 to help you solve any kind of problems
(4).Factory in central province of China, the products has been improved in Mechanical properties, electrical properties and environmental performance for 10-15%,moreover the price are more competitive for 5-10% over the market
(5).Main advantage products: 10G ICM and M8 connector(Vendor of ST and Qualcomm)
Ingke Technology Mass production of the following models;
74990101241 7499410221 7499021002A 7499111614A 7497011611A 7499011121A 7499211123 7499210123A 7498210002 7498011001A 7499111000A 7499051002 7499410420 7499611421 7497111611A 7499311611 7499511610 7499010004A 7498011008
