Handong made NAB-2S can replace BSM micro pneumatic brake
Handong is a professional and outstanding manufacturer of pneumatic brake with high quality and economic price. There are some models of this pneumatic brake, such as NAB-5S, NAB-10S, NAB-20S, NAB-20T, NAB-40T, NAB=65T. In some working situation, it only needs small torque and with installation space limited, so Handong design and made this micro pneumatic brake NAB-2S with small size to meet different users' requirement.

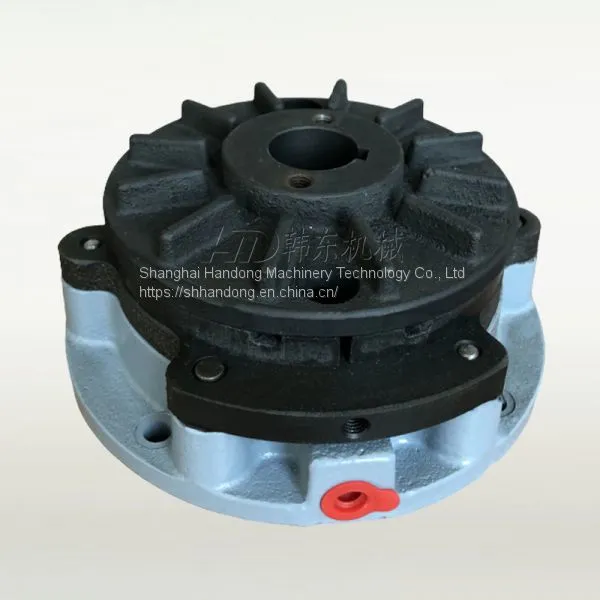

NAB pneumatic brake with cooling fan structure, so it is good for heat dissipation. On the other hand, cooling fan structure can reduce friction pads abrasion thermal, so as to prolong friction pads' service life and then prolong pneumatic brake BSM NAB-2S usage life greatly.
This pneumatic brake is used for braking steel shaft for stopping, it is normal releasing. That is to say, NAB pneumatic friction caliper disc brake is driven by air pressure, when there is no supplying air source, this brake is in released status, steel shaft is driven by motor part and rotating; after supplying air source, this brake will be braked, making rotating shaft stopped.
NAB pneumatic friction brake is a regular and standard type friction brake. It can replace Nexen S and T series shaft-mounted friction brake very well. It is composed of cylinder, piston, friction plate, bushing cover, cone-shaped bushing with wedge, bearing, guide parallel pin, return springs, sealing parts (O-ring) and fastener. Our Handong company adopts superior quality NSK bearing, greatly prolong brake’s service life and stability. After more than 10 years improvement, NAB brake is also durable in high frequency and high load hard working environment.
This NAB air shaft brake is design and made by Shanghai handong company, it can replace NIIKA NAB pneumatic brake, HAC HDB air brake, ASAHI BSB shaft mounted brake with good quality and competitive price. There are two modes of it: NAB-S and NAB-T. The NAB-S type brake is without taper bushing, it is refer to small torque brake, for example NAB-0.2S, NAB-2S, NAB-5S, NAB-10S; NAB-T type brake is with taper bushing, it is specific to larger torque brake, such as NAB-10T, NAB-20T, NAB-40T, NAB-65T. They can produce high torque from 20-636N.m for modern industry usage. Following is the detail technical data of this brake:
NAB model pneumatic brake is composed of cylinder, piston, aircraft, friction plate, return springs and others. This brake relies on air pressure to brake, return springs to release. It is industrial normal releasing friction type brake. After supplying air pressure, piston pushes piston aircraft and friction plate pad move towards and compressed shaft attached lining disc, disc and other rotating parts stopped, brake braked. After exhausting air pressure, piston aircraft and friction plate are separated with shaft attached lining disc by return springs, brake released.

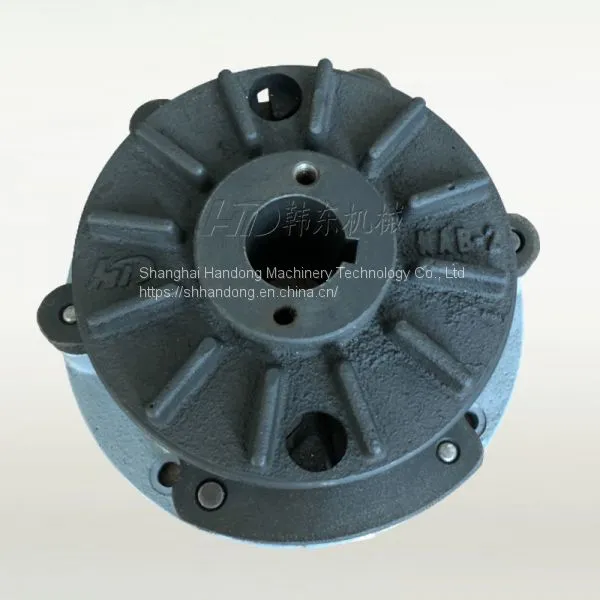

It can well released heat generated from friction via cooling plate mounted on disc with hub. Friction plate is two-cut style, using screw driver to take out head inside screw through hole of disc with hub, it is convenient to replace friction plate without disassemble its complete structure.
This pneumatic brake is widely used in rubber tire forming machine, food machinery, printing machinery, packaging machinery, textile machine, tire machinery, face mask machine, paper making machine and other machineries.

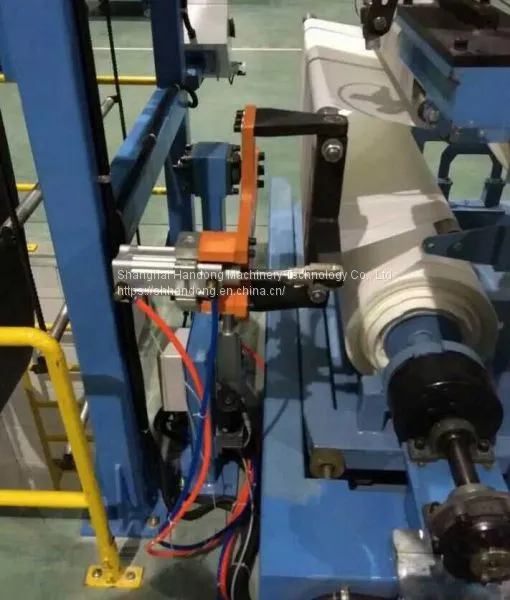

In this case, NAB air shaft pneumatic friction brake is applied in textile machine. Non-woven fabric and paper tension is controlled by this NAB pneumatic brake. So the non-woven fabric material and paper can be rolled in the same tension level tidily.
This NAB-S pneumatic brake is driven by air pressure, after supplying air source, brake linked and produce a certain braking force to adjust web material unwinding tension softly. If the tension force is smaller, regulating its air pressure larger accordingly.
