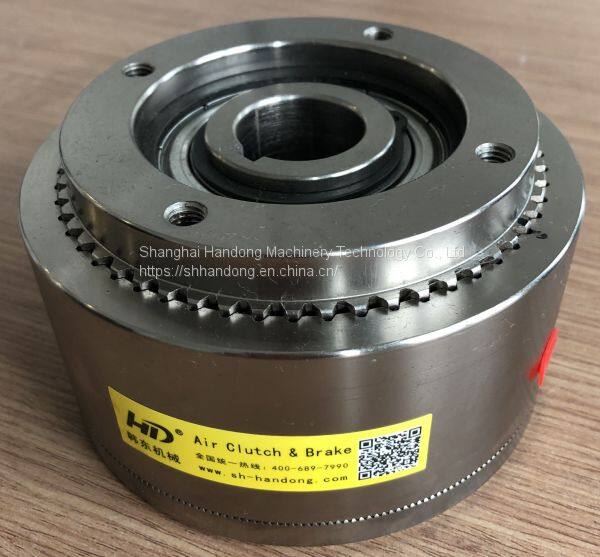

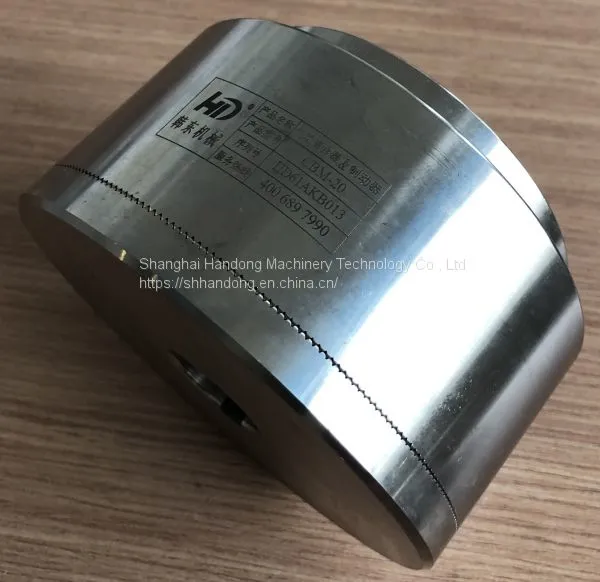

Long time braking safe pneumatic tooth brake CBM-60
CBM air shaft brake is a special mode, because it is spring applied air release small sawtooth pneumatic brake, that is to say this CBM pneumatic brake is through tooth and tooth plate connection for shaft bore braking. CBM pneumatic tooth brake is normal braking, so it is suitable for long time braking and short time release working situation.
As usually we know the normal releasing caliper disc brake and pneumatic negative friction brake, they are both of friction structure. But for the robot arm, it needs the normal locked brake with tooth structure, it is safe and light for this robot arm fixing. In view of this requirement, Handong design and made this updated pneumatic tooth brake CBM widely applied in mechanical arm, robot hand and other machine joint part based on traditional friction brake.
This pneumatic tooth and tooth plate brake is spring applied air release, means it is normally in locked status when there is no air supply. After inputting air source, springs backed, then tooth and tooth plate separated, brake released.
CBM Air shaft normal braking tooth brake is also a type of spring applied air release brake. As usually, it is locked for stop, after inputting air source, tooth and tooth ends separated, this brake released. This CBM pneumatic tooth brake is also called safe air brake, it is popular applied for mechanical arm, robot arm and other arthrosis part braking.
CBM Mechanical arm joint locking brake (robot arm brake, precise positioning pneumatic brake). Modern industry is reducing labor force to realize mechanized production management, then some mechanical arm appearance as needed. Pneumatic brake as a key precise positioning component of mechanical arm, it needs to realize the comprehensive utilization of space and location. In the practical operation, make sure precise orientation is the key point, and it is the value of brake application. On the premise of ensure brake torque, make the product as small and light as possible, our Handong pneumatic brake come into being accordingly.
This is a new type of tooth and tooth brake, it is suitable for slow or standstill connecting, after connecting, fast rotating is available. This pneumatic tooth brake is extensive applied in filling machines, agricultural machines, robotics, container cranes, food technology, ropeways, printing machines, aerospace, textile machines, handling system, robot arm, mechanical arm, joint, arthrosis, aerospace, entry control, marine, packaging machines, extruders, medical technology, wind turbines, amusement rides, mobile machine, machine tools, handling system, test benches, fast-tool application, hybrid systems, pumps and compressors and so on.
In this case, CBM safe pneumatic tooth brake is applied in robot arm for automatic industry. As usually, this robot arm is stopped and fixed, when it needs rotating, supplying air source to it is ok. When this robot arm needs stopped again, it will be action inertia, exhausting air source, then CBM safe pneumatic tooth brake will lock and fix robot arm fastly and stably.
With this pneumatic tooth brake connecting, it is easy and convenient for working. It can effective provent robot arm shaking or wobble after stopped. On the other hand, this CBM negative pneumatic tooth brake takes air pressure as source, it can protect the environment greatly.
