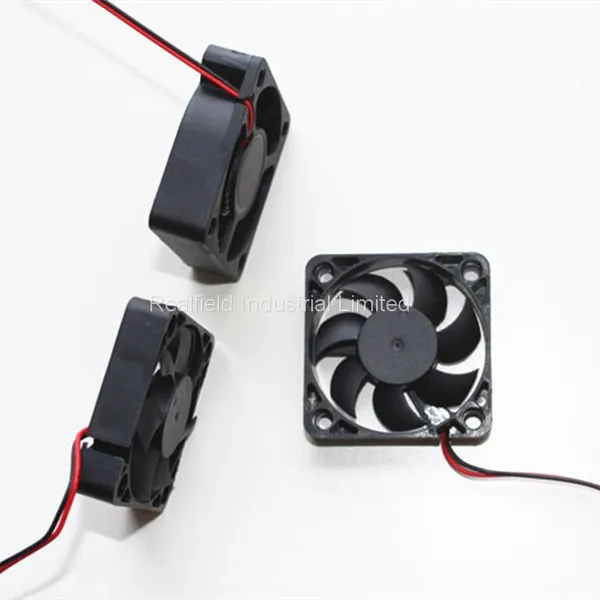

5cm Ventilator 50mmx50x10mm 5010 5v 12v 24v dc Mini Axial High Cfm Ventilador Cooling Fan
US$ 0.88 - 0.98
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
Realfield
Place of Origin:
China
Model Number:
HXD501012M
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
80x80x10mm 12v dc Ventilador 8cm 80mm 8010 pc Ventilator FanUS$ 0.81 - 0.88MOQ: 500 Pieces -
40mm Frameless Bracket Axial Fan Ventilateur Ventilator 40mmx10mm 5v 12v dc Cooling VentiladorUS$ 0.88 - 1.08MOQ: 500 Pieces
-
40mm 4007 Micro Fan 40x40x7mm 3v 5v 6v 12v dc Mini Axial Ventilateur Cooling VentiladorUS$ 0.8 - 0.95MOQ: 200 Pieces
-
Ventilador 40mm 40x40x20mm 4020 dc 12v 3d Printer Mini Axial High Cfm Cooling FansUS$ 0.88 - 1.0MOQ: 500 Pieces
-
50mm Ventilator 5cm 50x50x20mm 12v Axial Silent Cooling FanUS$ 0.9 - 0.98MOQ: 500 Pieces
Brand Name
Realfield
Place of Origin
China
Model Number
HXD501012M
Certification
CE, ROHS
After-sales Service Provided
No overseas service provided
Voltage
12v
Power
1.2W
Speed
5000RPM
Air Volume
11.2CFM
Blade Material
Plastic
Mounting
Free Standing
Electric Current Type
DC
5cm ventilator 50mmx50mmx10mm 5010 5v 12v 24v dc mini axial high rpm cfm ventilador cooling fan
| Model | Bearing | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Weight | ||
| Type | ||||||||||||
| PART NO. | B/S/Y | VDC | VDC | AMP | WATT | RPM | m3/min | CFM | mmH20 | INH20 | DB-A | g |
| HXD501005L | 5 | 3.5 to 6.8 | 0.13 | 1.05 | 4000 | 0.25 | 8.87 | 2.27 | 0.09 | 21.1 | 18 | |
| HXD501005M | 5 | 3.5 to 6.8 | 0.17 | 0.85 | 5000 | 0.32 | 11.23 | 3.8 | 0.15 | 28.5 | 18 | |
| HXD501005H | 5 | 3.5 to 6.8 | 0.23 | 1.15 | 6000 | 0.38 | 13.61 | 5.89 | 0.23 | 32.6 | 18 | |
| HXD501012L | 12 | 6.0 to 13.5 | 0.07 | 0.84 | 4000 | 0.25 | 8.87 | 2.87 | 0.09 | 21.1 | 18 | |
| HXD501012M | 12 | 6.0 to 13.5 | 0.1 | 1.2 | 5000 | 0.32 | 11.23 | 3.8 | 0.15 | 28.5 | 18 | |
| HXD501012H | 12 | 6.0 to 13.5 | 0.14 | 1.68 | 6000 | 0.38 | 13.61 | 5.89 | 0.23 | 32.6 | 18 | |
| HXD501012HH | 12 | 6.0 to 13.5 | 0.22 | 2.64 | 6500 | 0.42 | 14.74 | 6.38 | 0.25 | 34.2 | 18 | |
| HXD501024L | 24 | 18 to 26.5 | 0.03 | 0.72 | 3500 | 0.21 | 8.32 | 1.8 | 0.05 | 18.5 | 18 | |
| HXD501024M | 24 | 18 to 26.5 | 0.05 | 1.2 | 4000 | 0.25 | 8.87 | 2.27 | 0.09 | 21.1 | 18 | |
| HXD501024H | 24 | 18 to 26.5 | 0.08 | 1.92 | 6000 | 0.38 | 11.23 | 3.8 | 0.23 | 28.5 | 18 | |
| HXD501024HH | 24 | 18 to 26.5 | 0.12 | 2.88 | 6500 | 0.42 | 13.61 | 5.89 | 0.25 | 32.6 | 18 | |
Connectors for Option
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2006
Factory Size
1,000-3,000 square meters
Annual Export Value
US$10 Million - US$50 Million
