Home > Industrial Equipment & Components > Ventilation Equipment > Ventilation Fan > Ventilateur 2cm 20mm 20x20x6mm 2006 Ventilador Micro Pcb Cooling 3v 3.7v dc Axial Fan

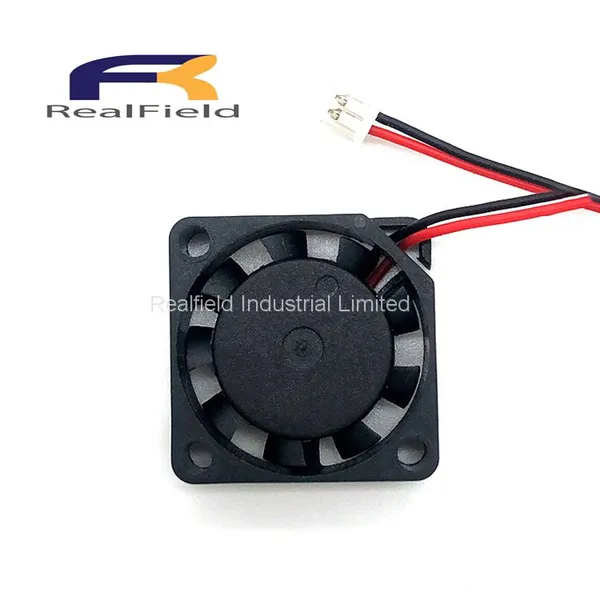

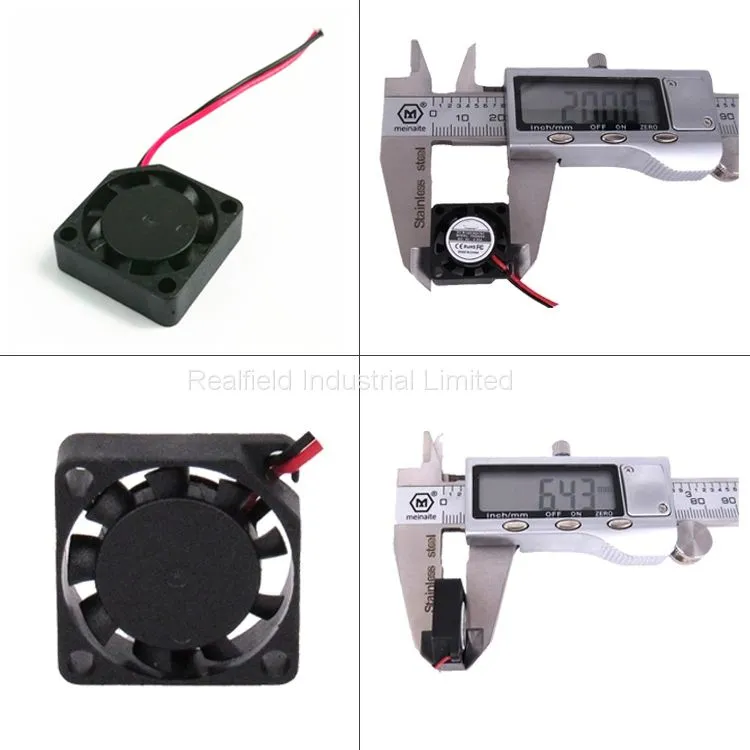

Ventilateur 2cm 20mm 20x20x6mm 2006 Ventilador Micro Pcb Cooling 3v 3.7v dc Axial Fan
US$ 2.4 - 2.6
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
Realfield
Place of Origin:
China
Model Number:
HXD200603H
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
40mm Ventilateur 40x40x15mm 4015 Axial Blower 5v 12v 24v Mini Ventilador Slim Cooling FanUS$ 0.88 - 1.08MOQ: 200 Pieces -
18mmx18mmx4mm 1804 dc 3v Ultra Thin Micro Axial Ventilateur Blower Cooling FanUS$ 3.6 - 3.8MOQ: 500 Pieces
-
Ventilateur 2cm 20mm 20x20x6mm 2006 Ventilador Micro Pcb Cooling 3v 5v dc High Rpm Axial FanUS$ 2.4 - 2.6MOQ: 1000 Pieces
-
20mm Ventilateur dc 3v 3.7v 5v Micro 20x20x10mm 2010 Sleeve Bearing Axial Cooling FanUS$ 1.8 - 2.2MOQ: 1000 Pieces
-
20mm dc 3v 3.3v 3.7v Micro Ventilateur 20x20x10mm 2010 Sleeve Bearing Axial Ventilador Mini Cooling FanUS$ 1.8 - 2.2MOQ: 1000 Pieces
Brand Name
Realfield
Place of Origin
China
Model Number
HXD200603H
Certification
CE, ROHS
Voltage
DC 3v
Power
0.75W
Speed
12000RPM
Air Volume
1.12CFM
Blade Material
Plastic
Mounting
Free Standing
Electric Current Type
DC
Ventilateur 2cm 20mm 20x20x6mm 2006 ventilador micro pcb cooling 3v 3.7v 5v 12v dc high rpm axial fan
| Model | Bearing Type |
Rated Voltage |
Operating Voltage Range | Rated Current | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Weight | ||
| PART NO. | B/S/Y | VDC | VDC | Amp | RPM | m3/min | CFM | mmH20 | INH20 | DB-A | g |
| HXD200603L | S/Y | 3 | 2.4 To 3.7 | 0.10 | 8000 | 0.022 | 0.79 | 1.95 | 0.077 | 21.5 | 3.8 |
| HXD200603M | S/Y | 3 | 2.4 To 3.7 | 0.15 | 10000 | 0.027 | 0.95 | 2.22 | 0.087 | 25.6 | 3.8 |
| HXD200603H | S/Y | 3 | 2.4 To 3.7 | 0.25 | 12000 | 0.032 | 1.12 | 2.69 | 0.106 | 31.2 | 3.8 |
| HXD200605L | S/Y | 5 | 3.5 To 7.0 | 0.08 | 8000 | 0.022 | 0.79 | 1.95 | 0.077 | 21.5 | 3.8 |
| HXD200605M | S/Y | 5 | 3.5 To 7.0 | 0.12 | 10000 | 0.027 | 0.95 | 2.22 | 0.087 | 25.6 | 3.8 |
| HXD200605H | S/Y | 5 | 3.5 To 7.0 | 0.16 | 12000 | 0.032 | 1.12 | 2.69 | 0.106 | 31.2 | 3.8 |
| HXD200612L | S/Y | 12 | 6.0 To 14.0 | 0.04 | 8000 | 0.022 | 0.79 | 1.95 | 0.077 | 21.5 | 3.8 |
| HXD200612M | S/Y | 12 | 6.0 To 14.0 | 0.06 | 10000 | 0.027 | 0.95 | 2.22 | 0.087 | 25.6 | 3.8 |
| HXD200612H | S/Y | 12 | 6.0 To 14.0 | 0.10 | 12000 | 0.032 | 1.12 | 2.69 | 0.106 | 31.2 | 3.8 |
Connectors for Option
We concern what you need, we bring what you need!
We promise it, we make it!
Trust us, we will deliver satisfaction in return!
If you need other rpm or voltage or functions which not in the list ,please contact Luke.
