Home > Industrial Equipment & Components > Ventilation Equipment > Ventilation Fan > 40mm Ventilateur 40x40x15mm 4015 Axial Blower 5v 12v 24v Mini Ventilador Slim Cooling Fan

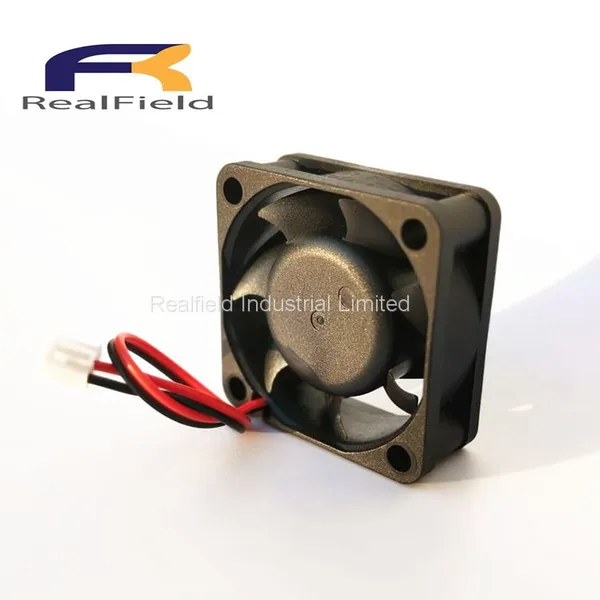

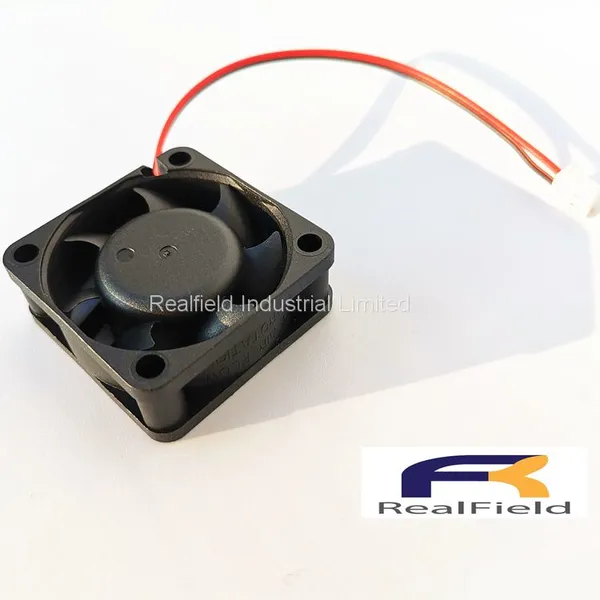

40mm Ventilateur 40x40x15mm 4015 Axial Blower 5v 12v 24v Mini Ventilador Slim Cooling Fan
US$ 0.88 - 1.08
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Brand Name:
Realfield
Place of Origin:
China
Model Number:
HXD401512H
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
18mmx18mmx4mm 1804 dc 3v Ultra Thin Micro Axial Ventilateur Blower Cooling FanUS$ 3.6 - 3.8MOQ: 500 Pieces -
Ventilateur 2cm 20mm 20x20x6mm 2006 Ventilador Micro Pcb Cooling 3v 5v dc High Rpm Axial FanUS$ 2.4 - 2.6MOQ: 1000 Pieces
-
20mm Ventilateur dc 3v 3.7v 5v Micro 20x20x10mm 2010 Sleeve Bearing Axial Cooling FanUS$ 1.8 - 2.2MOQ: 1000 Pieces
-
20mm dc 3v 3.3v 3.7v Micro Ventilateur 20x20x10mm 2010 Sleeve Bearing Axial Ventilador Mini Cooling FanUS$ 1.8 - 2.2MOQ: 1000 Pieces
-
Mini Ventilateur 25mmx25mmx7mm 2507 Micro 5v dc Axial Slim Cooling FanUS$ 0.9 - 1.1MOQ: 500 Pieces
Brand Name
Realfield
Place of Origin
China
Model Number
HXD401512H
Certification
CE, ROHS
Voltage
DC 12v
Power
3W
Speed
10000RPM
Air Volume
8.28CFM
Blade Material
Plastic
Mounting
Free Standing
Electric Current Type
DC
40mm ventilateur 40*40*10mm 4015 axial blower 5v 12v 24v mini ventilador slim cooling fan
| Model | Bearing | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Max Air Flow | Max Static Pressure | Noise | Weight | |
| Type | |||||||||||
| PART NO. |
S/B/Y |
VDC | VDC | AMP | WATT | RPM | m3/min | CFM | Inch-H20 | DB-A | g |
| HXD401505L | 5 | 3.5 to 6.8 | 0.25 | 1.25 | 6000 | 0.16 | 5.76 | 0.12 | 23.8 | 25 | |
| HXD401505M | 5 | 3.5 to 6.8 | 0.35 | 1.75 | 8000 | 0.19 | 6.88 | 0.17 | 27.8 | 25 | |
| HXD401505H | 5 | 3.5 to 6.8 | 0.6 | 3 | 10000 | 0.23 | 8.28 | 0.24 | 32.8 | 25 | |
| HXD401505HH | 5 | 3.5 to 6.8 | 0.7 | 3.5 | 12000 | 0.27 | 9.44 | 0.32 | 35.8 | 25 | |
| HXD401512L | 12 | 6 to 13.5 | 0.1 | 1.2 | 6000 | 0.16 | 5.76 | 0.12 | 23.8 | 25 | |
| HXD401512M | 12 | 6 to 13.5 | 0.15 | 1.8 | 8000 | 0.19 | 6.88 | 0.17 | 27.8 | 25 | |
| HXD401512H | 12 | 6 to 13.5 | 0.25 | 3 | 10000 | 0.23 | 8.28 | 0.24 | 32.8 | 25 | |
| HXD401512HH | 12 | 6 to 13.5 | 0.3 | 3.6 | 12000 | 0.27 | 9.44 | 0.32 | 35.8 | 25 | |
| HXD401524L | 24 | 18 to 26.5 | 0.06 | 1.44 | 6000 | 0.16 | 5.76 | 0.12 | 23.8 | 25 | |
| HXD401524M | 24 | 18 to 26.5 | 0.08 | 1.92 | 8000 | 0.19 | 6.88 | 0.17 | 27.8 | 25 | |
| HXD401524H | 24 | 18 to 26.5 | 0.13 | 3.12 | 10000 | 0.23 | 8.28 | 0.24 | 32.8 | 25 | |
| HXD401524HH | 24 | 18 to 26.5 | 0.15 | 3.6 | 12000 | 0.27 | 9.44 | 0.32 | 35.8 | 25 | |
Connectors for Option
If you need other rpm or voltage or functions which not in the list ,please contact Luke.
