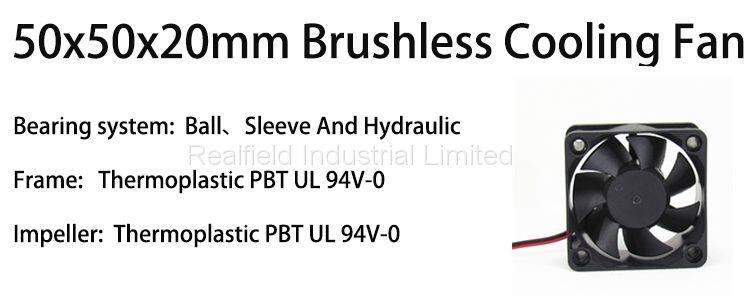

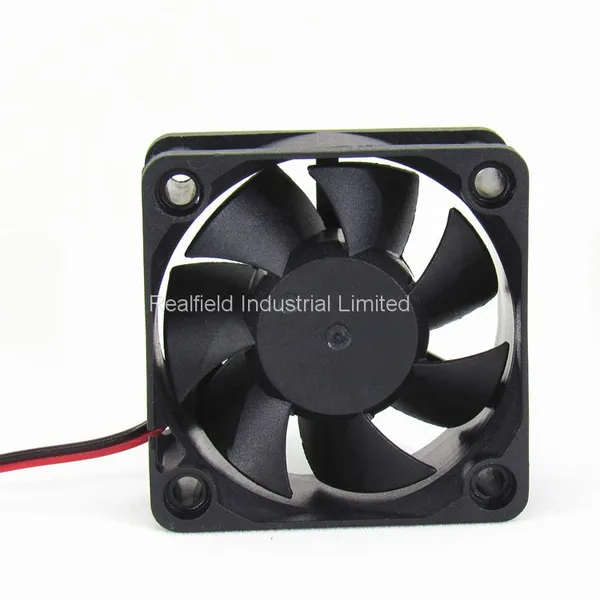

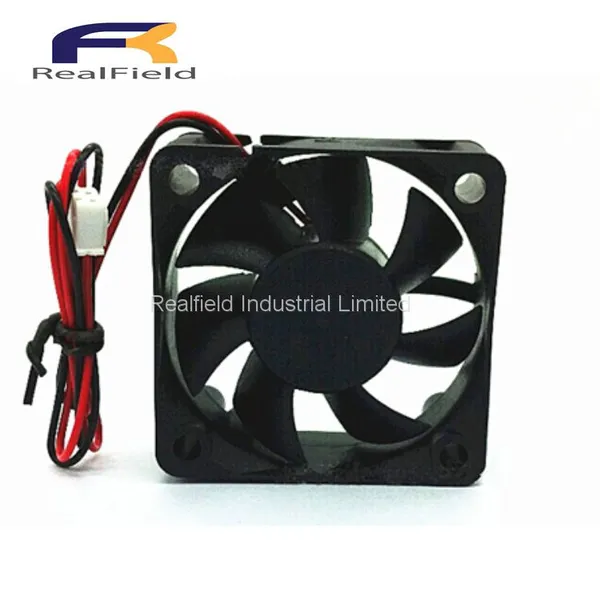

50mm Ventilator 5cm 50x50x20mm 12v Axial Silent Cooling Fan
US$ 0.9 - 0.98
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
Realfield
Place of Origin:
China
Model Number:
HXD502012M
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
Ventilateur 2cm 20mm 20x20x6mm 2006 Ventilador Micro Pcb Cooling 3v 3.7v dc Axial FanUS$ 2.4 - 2.6MOQ: 1000 Pieces -
40mm Ventilateur 40x40x15mm 4015 Axial Blower 5v 12v 24v Mini Ventilador Slim Cooling FanUS$ 0.88 - 1.08MOQ: 200 Pieces
-
18mmx18mmx4mm 1804 dc 3v Ultra Thin Micro Axial Ventilateur Blower Cooling FanUS$ 3.6 - 3.8MOQ: 500 Pieces
-
Ventilateur 2cm 20mm 20x20x6mm 2006 Ventilador Micro Pcb Cooling 3v 5v dc High Rpm Axial FanUS$ 2.4 - 2.6MOQ: 1000 Pieces
-
20mm Ventilateur dc 3v 3.7v 5v Micro 20x20x10mm 2010 Sleeve Bearing Axial Cooling FanUS$ 1.8 - 2.2MOQ: 1000 Pieces
Brand Name
Realfield
Place of Origin
China
Model Number
HXD502012M
Certification
CE, ROHS
After-sales Service Provided
No overseas service provided
Voltage
12v
Power
2.28W
Speed
4800RPM
Air Volume
14.36CFM
Blade Material
Plastic
Mounting
Free Standing
Electric Current Type
DC
50mm ventilador 5cm 50x50x20mm 5v 12v 24v axial cooling fan
| Model | Bearing Type | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Weight | ||
| PART NO. | B/S/Y | VDC | VDC | AMP | WATT | RPM | m3/min | CFM | mmH20 | INH20 | DB-A | g |
| HXD502005L | B/S/Y | 5 | 3.5 to 6.8 | 0.18 | 0.9 | 4000 | 0.32 | 11.22 | 2.84 | 0.11 | 26.9 | 32 |
| HXD502005M | 5 | 3.5 to 6.8 | 0.22 | 1.1 | 4800 | 0.41 | 14.36 | 4.39 | 0.17 | 28.7 | 32 | |
| HXD502005H | 5 | 3.5 to 6.8 | 0.4 | 2 | 5800 | 0.47 | 16.67 | 6.59 | 0.26 | 34.3 | 32 | |
| HXD502012L | 12 | 6.0 to 13.5 | 0.11 | 1.32 | 4000 | 0.32 | 11.22 | 2.84 | 0.11 | 26.9 | 32 | |
| HXD502012M | 12 | 6.0 to 13.5 | 0.19 | 2.28 | 4800 | 0.41 | 14.36 | 4.39 | 0.17 | 28.7 | 32 | |
| HXD502012H | 12 | 6.0 to 13.5 | 0.22 | 2.64 | 5800 | 0.47 | 16.67 | 6.59 | 0.26 | 34.3 | 32 | |
| HXD502012HH | 12 | 6.0 to 13.5 | 0.28 | 3.36 | 6500 | 0.53 | 18.68 | 8.2 | 0.38 | 39.2 | 32 | |
| HXD502024L | 24 | 18.0 to 26.5 | 0.07 | 1.68 | 4000 | 0.32 | 11.22 | 2.84 | 0.11 | 26.9 | 32 | |
| HXD502024M | 24 | 18.0 to 26.5 | 0.1 | 2.4 | 4800 | 0.41 | 14.36 | 4.39 | 0.17 | 28.7 | 32 | |
| HXD502024H | 24 | 18.0 to 26.5 | 0.11 | 2.64 | 5800 | 0.47 | 16.67 | 6.59 | 0.26 | 34.3 | 32 | |
| HXD502024HH | 24 | 18.0 to 26.5 | 0.18 | 4.32 | 6500 | 0.53 | 18.68 | 8.2 | 0.38 | 39.2 | 32 | |
If you need other rpm or voltage or functions which not in the list ,please contact Luke.
